5MP TriGuard PTZ Black UV-IPC675LFW-AX4DUPKC-VG-B
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

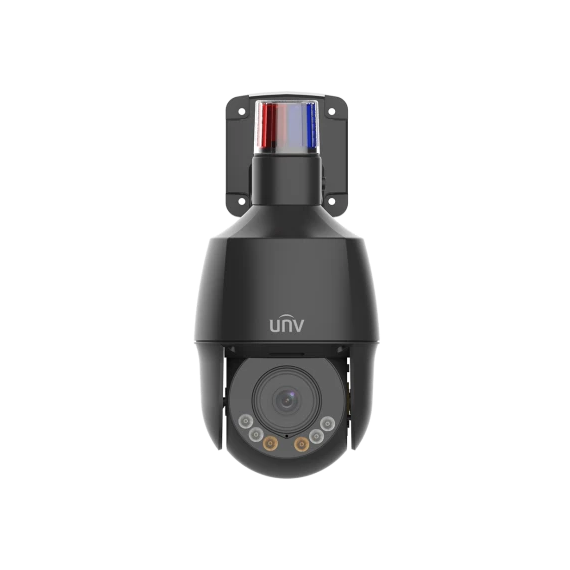

Uniview 5MP TriGuard PTZ Black UV-IPC675LFW-AX4DUPKC-VG-B
The UV-IPC675LFW-AX4DUPKC-VG-B is a high-performance 5MP LightHunter mini PTZ network camera designed for advanced intelligent surveillance. It delivers ultra-clear 2880 × 1620 resolution video using a 1/2.7” CMOS sensor, ensuring sharp and detailed monitoring in both day and night conditions.
Equipped with 4X optical zoom (2.8–12mm motorized lens), the camera provides flexible wide-to-zoom coverage, making it ideal for large outdoor areas such as parking lots, commercial buildings, and public spaces. Its LightHunter technology ensures excellent color clarity even in extremely low-light environments.
This model includes active deterrence features such as a built-in siren and flashing light, helping to warn and prevent intrusions in real time. It also supports AI-based smart intrusion prevention, people counting, and crowd density monitoring for advanced security analytics.
With smart IR night vision up to 50 meters and warm light support up to 10 meters, it delivers full-color visibility even in complete darkness. The camera also includes two-way audio, microSD storage, and IP66 weatherproof protection for reliable outdoor performance.
Key Features
- 5MP high-resolution (2880 × 1620) imaging
- 4X optical zoom (2.8–12mm motorized varifocal lens)
- LightHunter technology for ultra-low-light full-color imaging
- Smart IR night vision up to 50m + warm light up to 10m
- Active deterrence: built-in siren and flashing warning light
- AI analytics: intrusion detection, people counting, crowd density monitoring
- Smart motion detection with false alarm filtering
- Built-in microphone and speaker for two-way audio
- Supports microSD storage up to 512GB
- IP66 weatherproof design for outdoor durability
- PoE support for easy single-cable installation
- ONVIF compatible for flexible system integration
