Ajax Case D (430×400×133)
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)

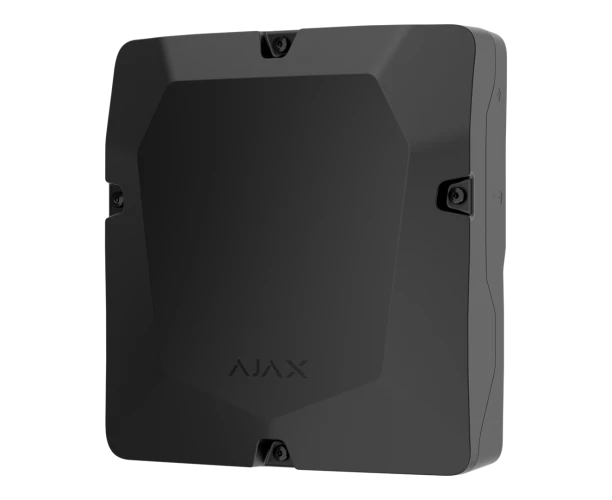

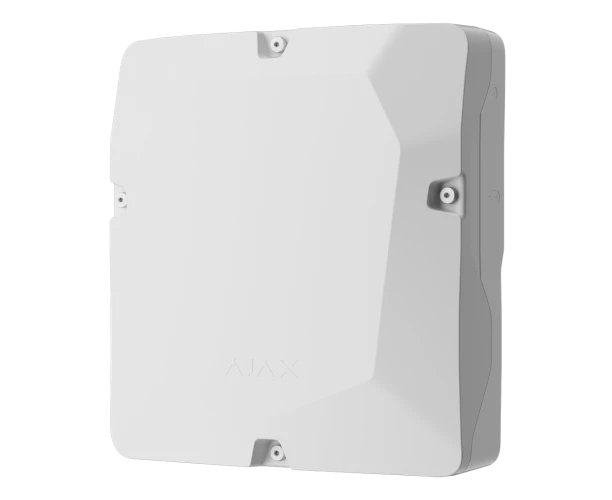

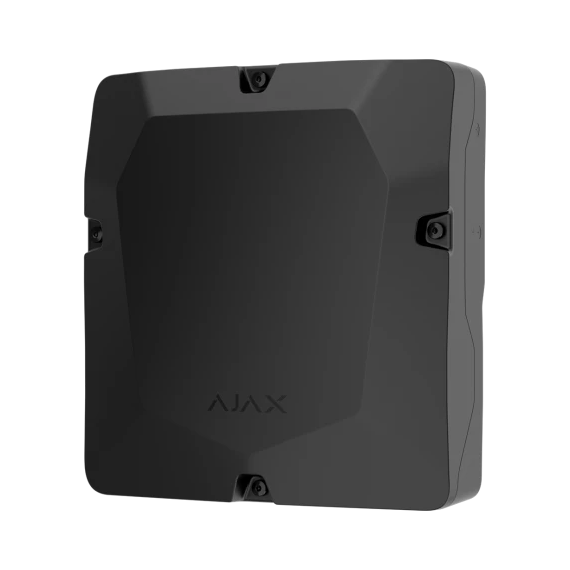

Ajax Cases are your ideal choice for securing and installing Ajax devices, including LineSplit Fibra, LineProtect Fibra, and MultiRelay Fibra. These versatile cases are designed to make your security system setup hassle-free and reliable.
Key Features:
- Device Compatibility: Ajax Cases are fully compatible with a range of Ajax devices, including LineSplit Fibra, LineProtect Fibra, and MultiRelay Fibra. They ensure a perfect fit and protection for your valuable equipment.
- Multiple Models: Choose from several model options, each catering to different installation requirements:
- Case A (106): Designed for a single Ajax device.
- Case B (175): Accommodates up to two Ajax devices.
- Case C (260): Ideal for one Ajax device and a 7 Ah battery.
- Case D (430): Offers space for up to eight Ajax devices and two 18 Ah batteries.
- Secure Device Placement: Ajax Cases feature plastic latches that firmly secure your devices, and sliding them allows for easy device removal.
- Cable Management: Cable fasteners within the case help keep cables organized and tidy, ensuring a clean and efficient installation.
- Built-in Safety: Plastic stoppers protect your installed devices during drilling, ensuring precision and preventing damage.
- Inclination Monitoring: A bubble level is integrated into the case for checking the mount's inclination angle during installation.
- Drilling Made Easy: Recesses for drilling, available in Ø16 mm or Ø20 mm, keep drill bits in place, ensuring accurate installation. Using a hole saw designed for plastic is recommended.
- Wider Holes: Wider holes are included to accommodate installation errors and ensure a secure fit.
- Advanced Security: Ajax Cases come equipped with a tamper board, offering an added layer of security. This board connects to the device connector and protects the installed device from sabotage.
- Device Flexibility: Ajax Cases allow you to rotate the device by 180°, offering two fixed positions for installation, and the lid of Case A (106) can also be rotated 180° for added convenience.
- Secure Closure: Latches on the casing ensure that the lid stays securely in place during installation, preventing any accidental dislodging.
Product Details:
- Dimensions: 430 × 400 × 133 mm
- Weight: 3381 g
- Operating Temperature Range: From -10°C to +40°C
- Operating Humidity: Up to 75%
- Protection Class: IP20
- colours: Available in Black and White
- Complete Set: Every Ajax Case comes with the essential components you need for a seamless installation, including the case itself, an installation kit, and a quick start guide.
Ensure the security and reliability of your Ajax devices with Ajax Cases. Elevate your security system with Ajax Systems, your trusted partner in advanced security solutions.
* Available in BLACK or White *
