Ajax CombiProtect S (Motion & Glass Break)
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)

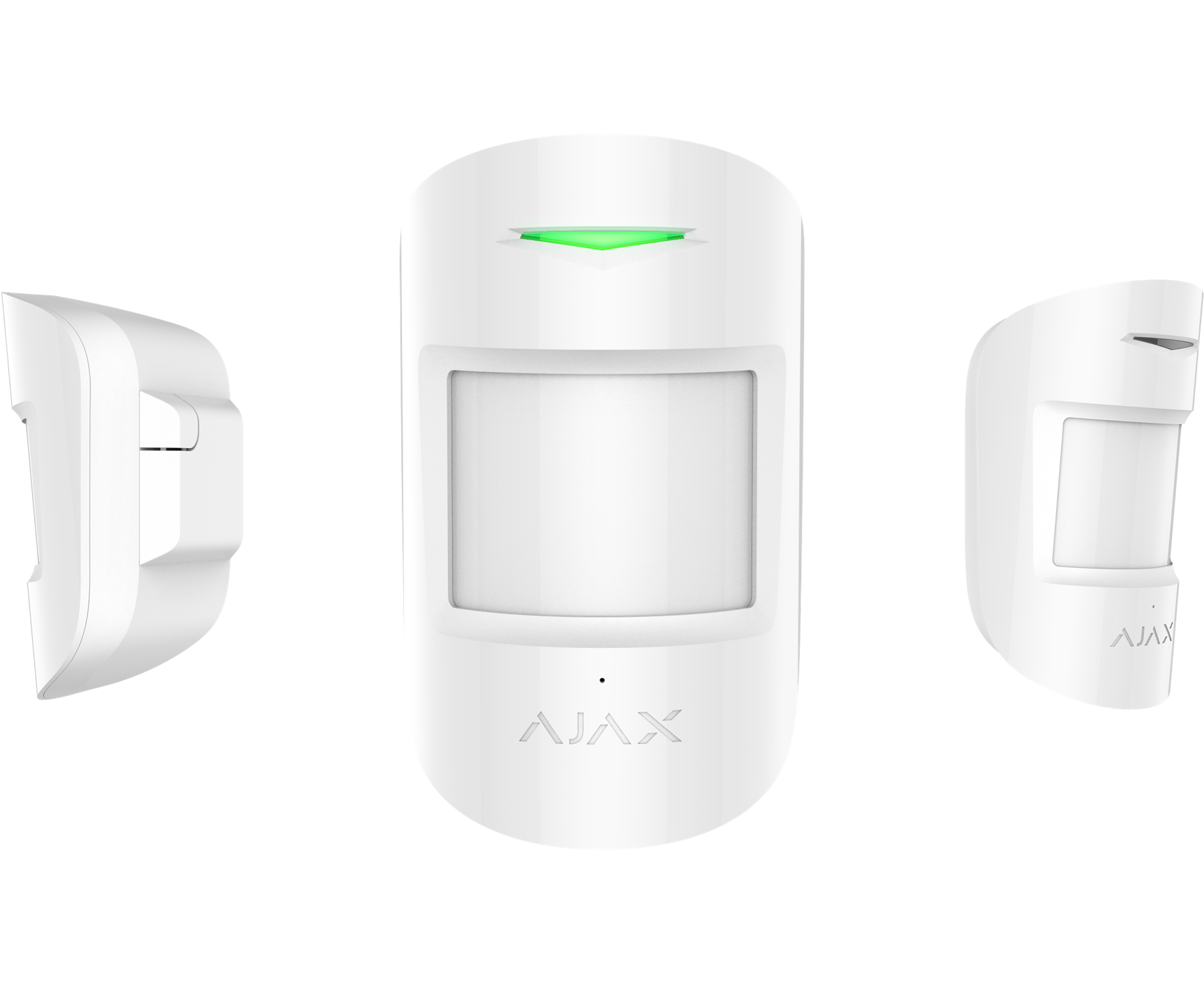

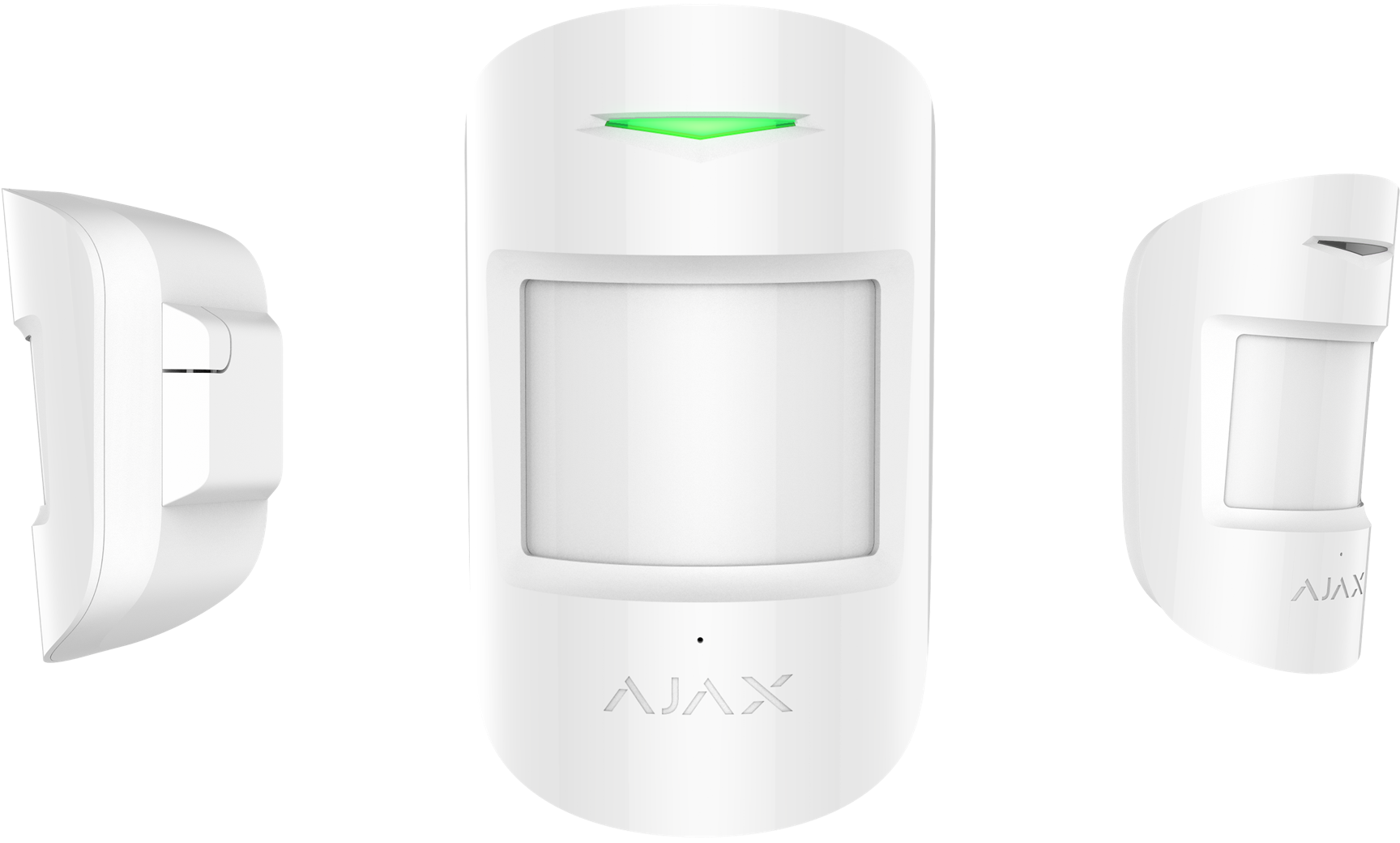

CombiProtect is a wireless combined motion and glass break detector. The device helps to secure the room from intruders entering through doors and windows along with monitoring the current state of the glass. It combines the functions of two detectors - motion detector and glass break detector. It detects motion in the room at a distance of up to 12m and registers broken glass at a distance of up to 9 m from the window.
Please note: This is the device of the Superior product line. Superior products are advanced versions of Jeweller devices. This product line is developed for projects. Only accredited Ajax Systems partners can sell, install, and administer Superior products.
* Available in BLACK or WHITE *
Features:
- Electro-optical combined radio channel security detector
- Wireless
- Operates with Hub, Hub Plus, ReX, ocBridge Plus, uartBridge
- PIR sensor with electret microphone
- Alarm signal delivery time: 0.15 s
- Motion detection distance: Up to 12 m
- Detection angles: Horizontal-88.5°, Vertical-80°
- Sensitivity adjustable: 3 levels
- Recommended installation height 2.4 m
- Pet immunity: Weight: up to 20 kg, Height - up to 50 cm
- Battery life: up to 5 years
- Jeweller radio technology
- Communication range with central unit up to 1,700 m in an open space
- Two-way communication between devices
- Operating frequencies: 868.0 - 868.6 MHz
- Self-adjusting RF output power: up to 20 mW
- Block encryption based on AES algorithm
- Device polling period: 12-300 s
- Operating temperature range from +5°С to +40°С
- Permissible humidity up to 75>#/li###
- Anti sabotage
- Jamming detection
- Tamper resistant
- Remote setting and testing
- Dimensions: 110х65×50 mm
- Weight: 92 g
- Certification: Grade 2, CE
*Battery backup: CR123A lithium battery (included)*
