Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)

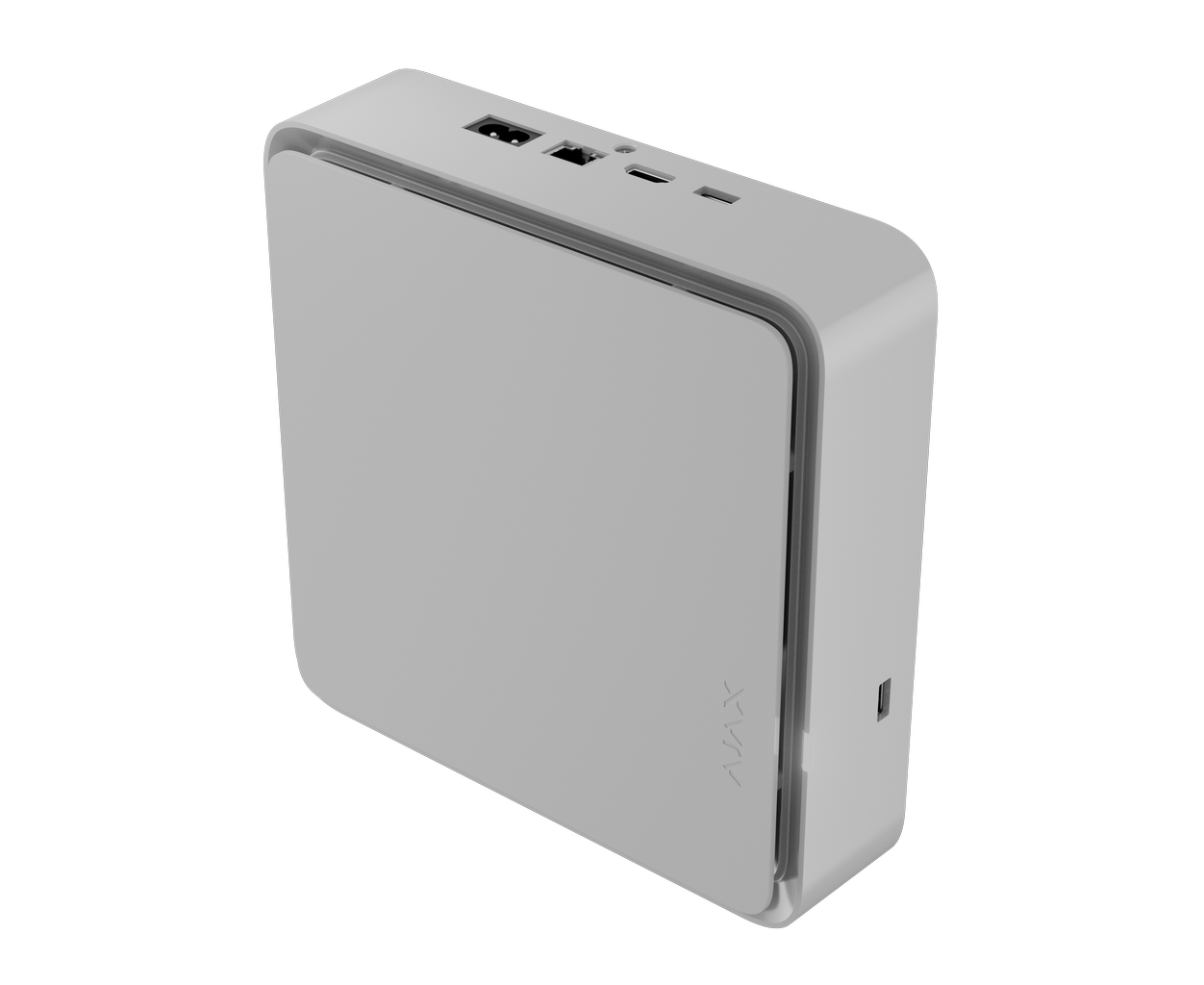

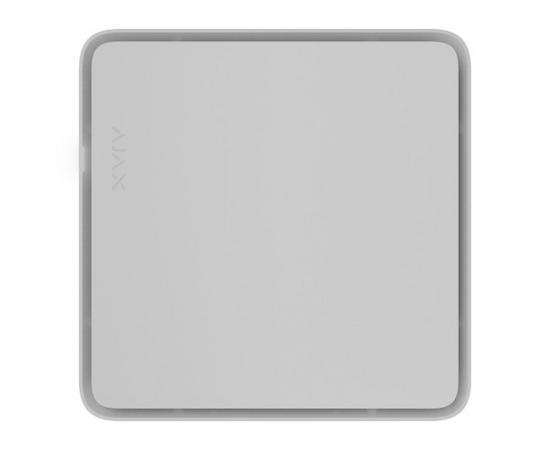

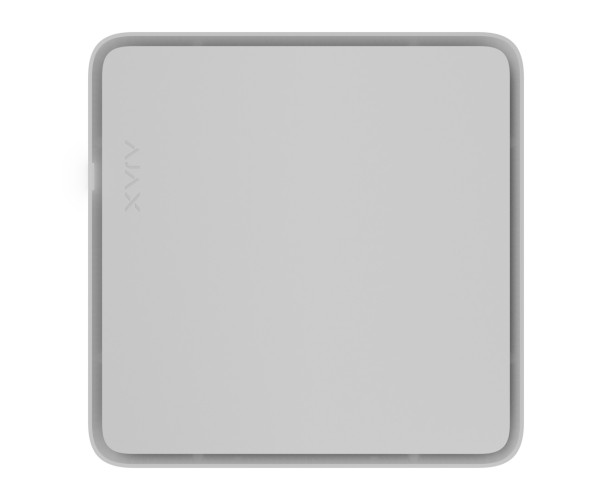

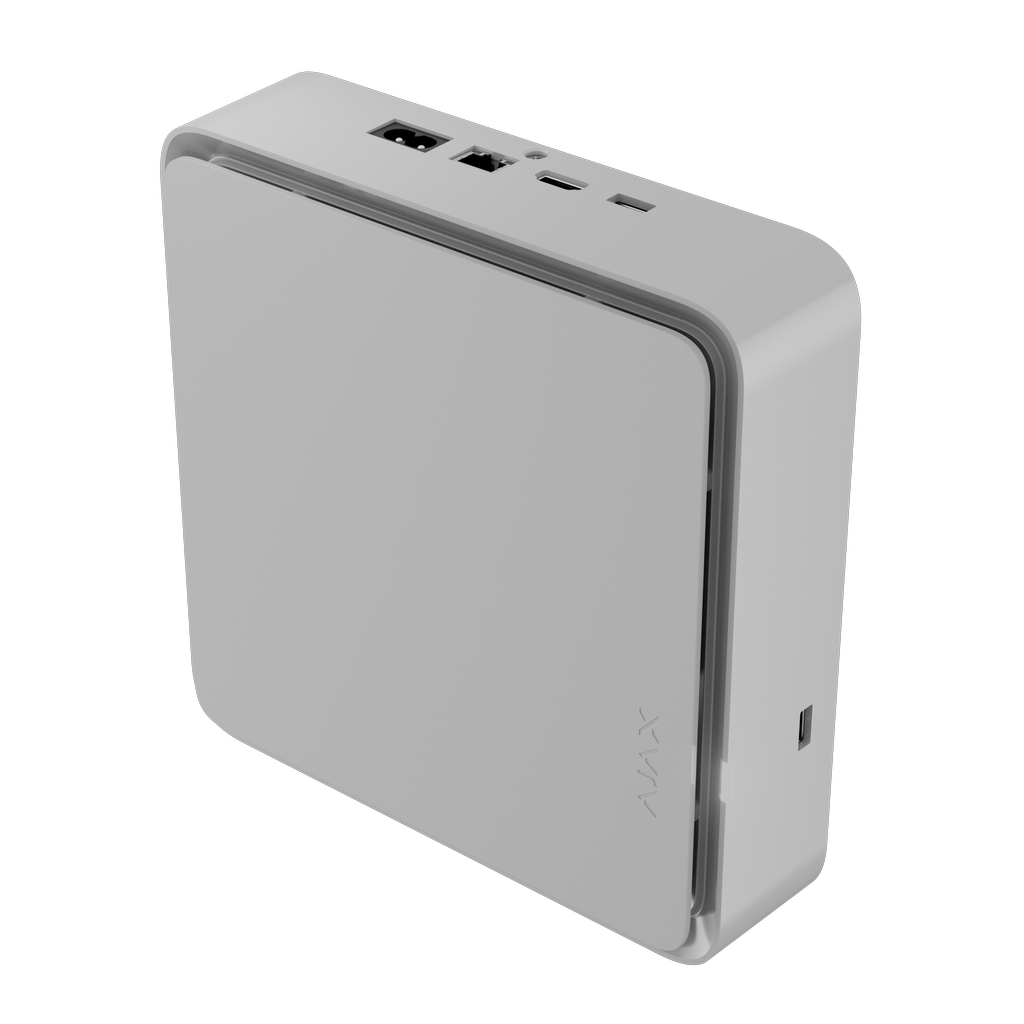

Ajax NVR HAC 16ch — 16-Channel Network Video Recorder
Capture, store and manage IP-camera video with ease using the Ajax NVR HAC 8ch — a professional 8-channel network video recorder designed for seamless integration into the Ajax ecosystem.
Key Features
-
Supports up to 16 channels of IP-camera input.
-
Records video at resolutions up to 4K (8 MP) at 25/30 fps.
-
Provides a single 3.5″ SATA-HDD bay supporting up to 16 TB storage capacity.
-
Compatible with both Ajax IP-cameras and third-party IP-cameras via ONVIF (Profile S/T).
-

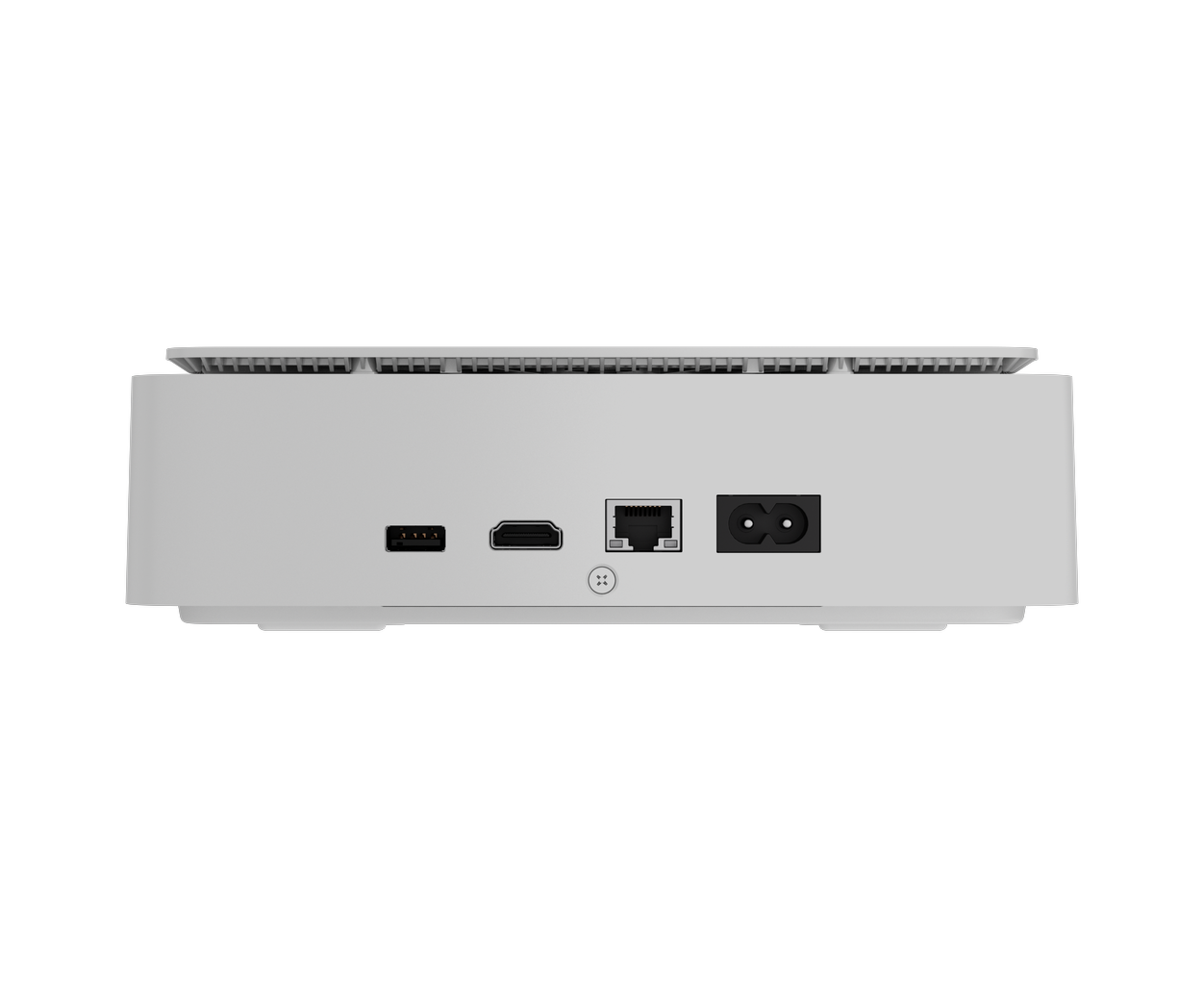

Connects via Ethernet (10/100 Mbps) and integrates with the Ajax Cloud service for remote access and management.
-
Designed for home and office video surveillance—delivering reliable performance for both consumer and commercial applications.
Why It Stands Out
With high-resolution support and large storage capacity, the Ajax NVR HAC 16ch offers a future-proof solution for expanding video surveillance needs. Its compatibility with third-party cameras ensures flexibility in device choice, while seamless integration into the Ajax alarm and video ecosystem ensures smooth operations and remote monitoring capability.
