Ajax Superior MotionCam AM (PhOD) Jeweller, Wireless PIR With Anti-Masking System
Please login for pricing
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

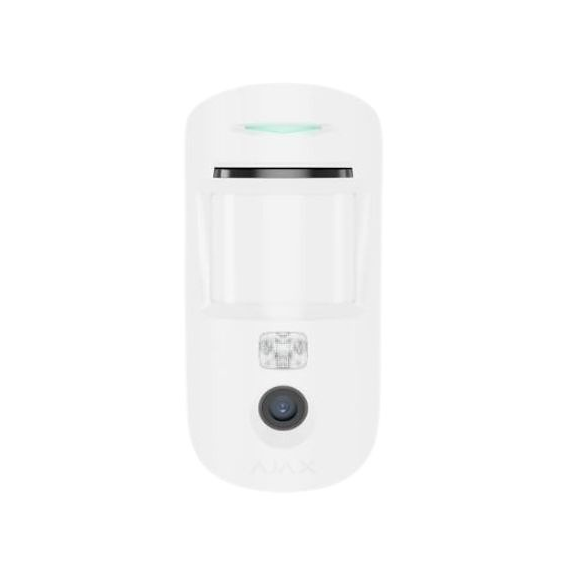

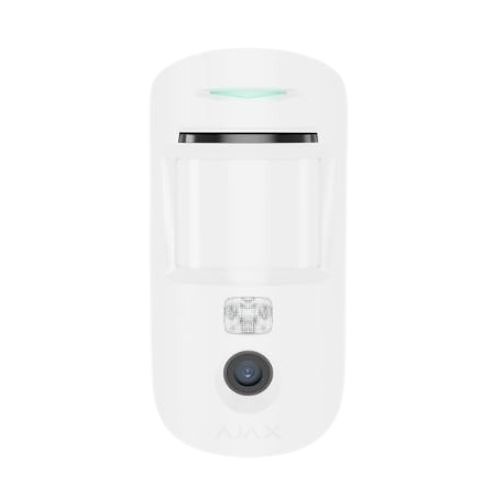

Ajax Superior MotionCam AM (PhOD) Jeweller, Wireless PIR With Anti-Masking System
Superior MotionCam AM (PhOD) Jeweller is an indoor motion detector with enhanced anti-sabotage features that are ideal for vacant properties and public spaces. The detector has a new optical system with a reduced blind zone1 of only 80 cm 2.6' and enables crawling person2 detection. Photo on demand, by alarm, schedule, and scenario keeps the monitoring company informed about the on-site situation at any time. The detector raises the alarm in case of opening the device enclosure, removing the device from the mounting panel, or identifying any masking attempts by capturing HD photos of incidents. Superior MotionCam AM (PhOD) Jeweller is designed to protect any property with an increased threat of sabotage.
KEY FEATURES
- Up to 39' motion detection distance-71° Vertical viewing angle-92° Horizontal viewing angle
- Anti-masking system with adjustable level of sensitivity
- Crawling person detection improved sensitivity in lower lens areas
- 6 Types of photo verification (by alarm, on demand, by scenario, by schedule, by masking attempt, by tamper alarm)
- 4.5 Seconds to deliver the first photo-Enhanced motion detection with a decreased blind zone1 of up to 80 cm (2.6')
- 4 levels of motion detection sensitivity that can be set in the Ajax PRO app-Remote control and configuration
