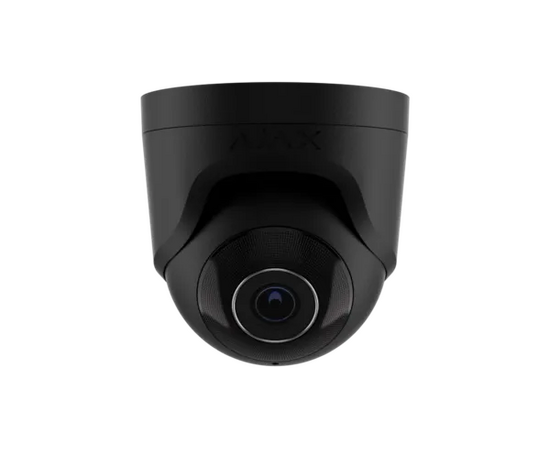

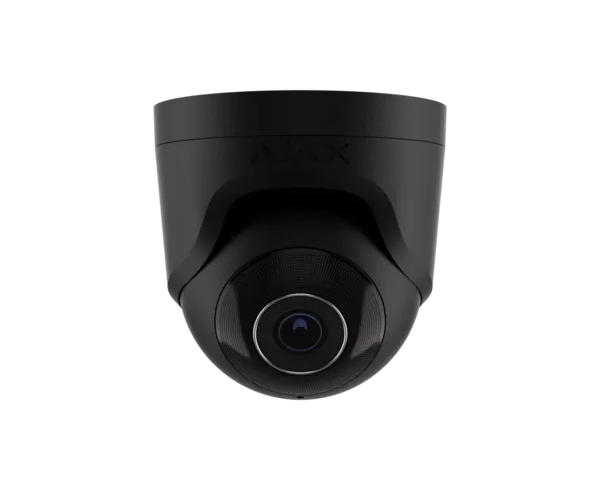

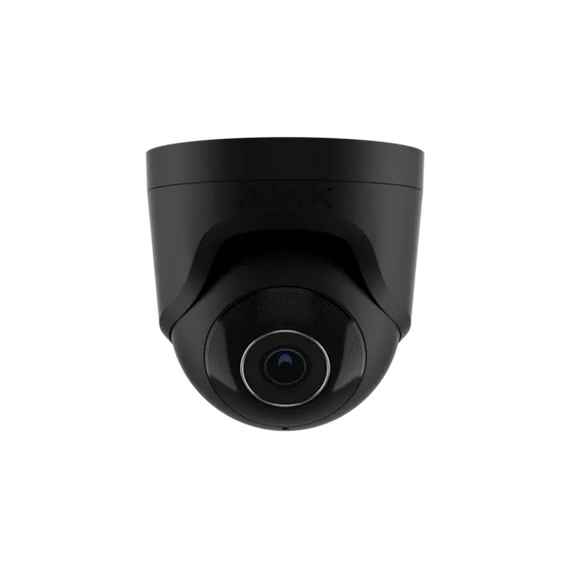

Ajax TurretCam 8MP
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
Speed and Privacy at Your Fingertips:
Experience crazy fast navigation through an intuitive interface empowered by cutting-edge streaming tech. NDAA-compliant hardware enhanced with state-of-the-art software and AI, delivers crystal-clear images when your customers need them most.
Key Features:
- Secure Passwordless Camera Authentication
- Customisable Virtual Videowall Tab
- Instant Visual Verification in High-Resolution
- Customisable Motion Detection Area
- Fast Archive Navigation with Dual Stream Technology
- Built-in AI Recognition
- IR Illumination Range up to 35 m
- Archive Synchronisation with System Events
- Built-in Digital Microphone
- Water and Dust-Resistant Metal Enclosure
- Multi-Tiered Account Security: 2FA, Session Control, and Password/Biometric Login
- Supports up to 256 GB SD Card
- Remote Control and Configuration
- Two Colour Options
- H.264/H.265 Codec Support
Future-Ready Hardware:
- CMOS Sensor: 5MP (2880 × 1620 px), 8 Mp (3840 × 2160 px)
- Lens Options: 2.8 mm, 4 mm
- IR Illumination: Up to 35 m
- Microphone with G722 Codec
- Metal Enclosure with IP65 Protection
- Built-in Accelerometer for Dismantling and Impact Alerts
- microSD Slot: Supports up to 256 GB
Versatile Lens Choices:
Tailor your camera to suit your specific needs. Whether you require a wider view for outdoor installations or a closer focus on corridors and compact spaces, Ajax has got you covered. Choose more megapixels for extensive coverage or fewer for space-saving without sacrificing detail.
Exceptional Image Quality:
Ajax cameras adapt to changing light with True WDR technology. Clear night-time visuals are ensured with advanced IR illumination, evenly lighting up both near and far areas.
Efficient AI-Powered Object Recognition:
Recognizing important events like people entering a room or cars in a parking lot, helping reduce storage usage and speeding up incident processing.
Secure Data Storage:
Rest assured, all system data is securely stored within the European Union, complying with European data protection standards. Ajax cameras are NDAA-compliant, with every component sourced from US government-approved manufacturers, backed by independent cybersecurity tests.
Customizable Video Wall for Real-Time Monitoring:
Integrate your visual data in a streamlined interface. The Videowall tab combines snippets from IP cameras and MotionCam series detectors, giving your customers a comprehensive view of their space. It's accessed on both mobile and desktop apps.
Effortless Archive Access:
Simply click on an event in the notification log to access the archive, instantly directing you to the exact camera recording at the event's timestamp. No more endless searching.
Rapid and Encrypted Data Transfer:
Ajax JetSparrow, their proprietary video transmission technology, ensures ultra-fast video management. Browsing the archive is efficient, and live view is instant.
Built-in Motion Detection:
Set up pixel movement detection to optimize your customer's video archive, conserving HDD space and streamlining navigation.
Established Security Expertise:
Ajax NVR offers enhanced archive security, restricted visual data access, and strengthened account security. Only the end user has control over the system, ensuring no hidden access. Access for PRO accounts is temporary and requires approval from the system administrator.
Passwordless Authentication:
These cameras don't have default passwords, providing added security. Passwordless authentication via mTLS ensures secure connections.
Enjoy a fast system response and seamless integration with nearly any IP camera for intrusion protection and automation.
Ajax cameras simplify installation and setup, with real-time updates via Ajax apps.
