All-Rack Wall Mounted 9U 600mm Deep Data Cabinet
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

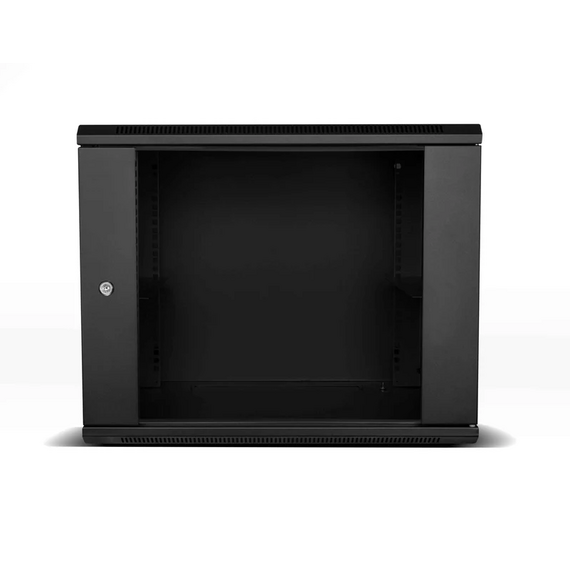

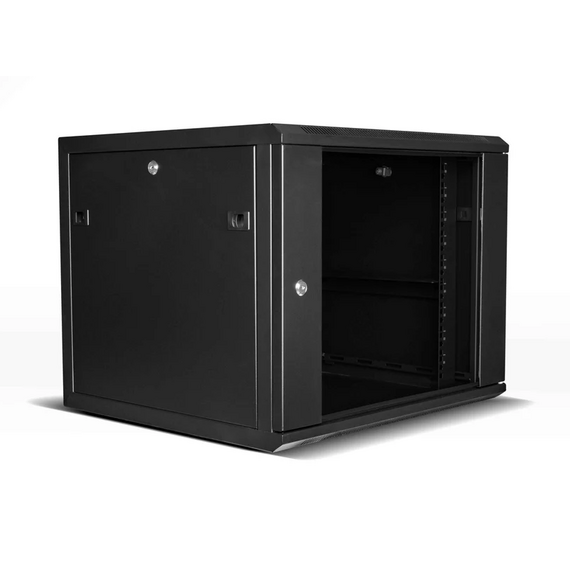

All-Rack Wall Mounted 9U 600mm Deep Data Cabinet
The All-Rack Wall Mounted 9U 600mm Deep Data Cabinet is a 19-inch wall-mounted enclosure designed to house rack-mountable networking equipment, including patch panels, switches and other compatible devices. It provides 9U of rack space with a 600mm depth, offering additional room for deeper equipment installations.
Constructed from 1.2mm mild steel, the cabinet features depth-adjustable heavy-duty mounting profiles, a lockable toughened-glass front door and removable steel side panels. Vented side panels, a roof cut-out for two fan units and cable access points on the lid and base support equipment installation, ventilation and cable management.
Key Features:
- Loading Capacity: 40KG
- Doors: 180-degree opening angle and can be mounted on the left & right hand side with a simple spring latch
- Security: Lockable doors and side panels
- Ventilation: Optional fan can be fitted if required
- Material: 1.2mm mild steel construction, toughened glass panel in steel framework door
- Racks: Supplied with depth adjustable heavy-duty steel mounting profiles to take industry standard 19’’ patch panels, switches and other equipment.
- Doors: Lockable, removable glazed front door. Lockable and removable steel side panels
- Ventilation: Side panels vented. The roof has a cut-out for 2 fan units to be mounted directly
- Cable Entry: Cable access points on the lid and base of cabinet.
