AXIS TQ6501-E Parapet Mount (02110-001) – Outdoor Aluminum Camera Mount with Conduit Side Entry
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

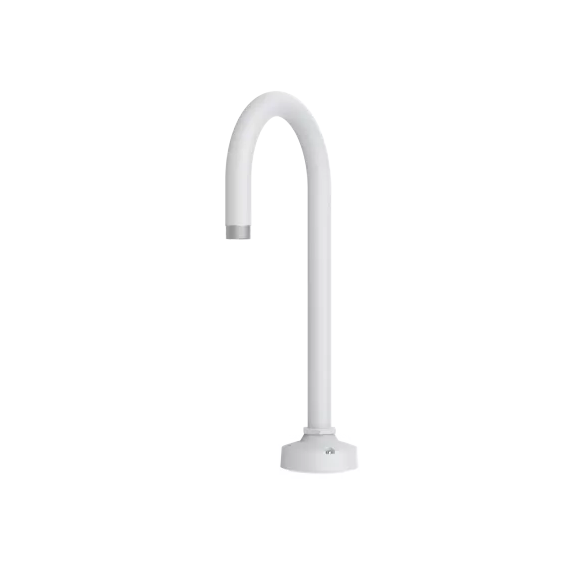

AXIS TQ6501-E Parapet Mount (02110-001) – Outdoor Aluminium Camera Mount with Conduit Side Entry.

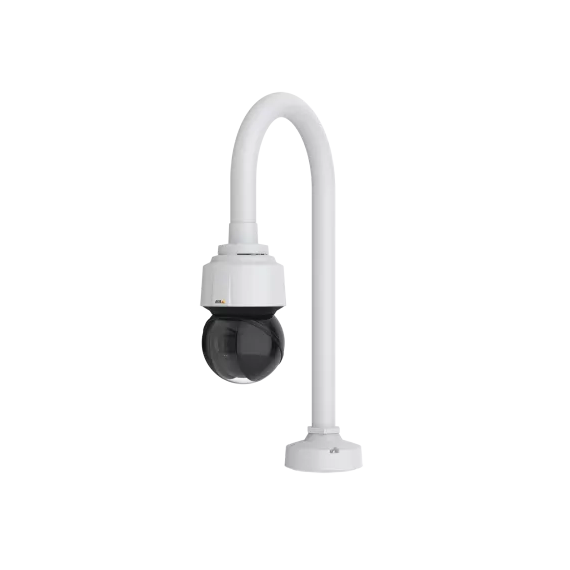

The AXIS TQ6501-E Parapet Mount is engineered for professional surveillance installations where cameras need to be mounted above rooflines, parapets, or poles for maximum coverage. Constructed from lightweight yet durable aluminium, it features a round base for easy installation and supports cable routing through either the bottom or side conduit entry. Compatible with AXIS pendant kits featuring 1.5" NPS/NPT threads and standard pan-tilt camera fixings, it offers excellent flexibility for mounting a wide range of AXIS PTZ and fixed dome cameras. Its outdoor-ready design and IK10-rated construction ensure long-term reliability in harsh weather conditions.
Key Features:
Outdoor-ready parapet mount
Lightweight aluminium construction
IK10 impact-resistant design
Side conduit cable entry
Bottom cable routing option
Compatible with 1.5" NPS/NPT AXIS pendant kits
Supports standard pan-tilt pole-mounted camera fixings
Suitable for rooftop and parapet installations
Corrosion-resistant chromated and powder-coated finish
Easy installation with a round mounting base
Compatible with selected AXIS PTZ and dome cameras
Includes mounting accessories for secure installation
3-year AXIS warranty
