AXIS 6 MP Outdoor Ready Dome with 360° Panoramic View and Audio Capture Network Camera
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

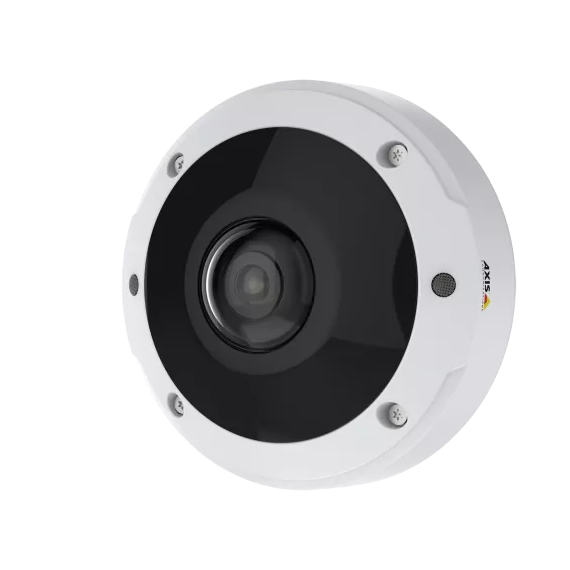

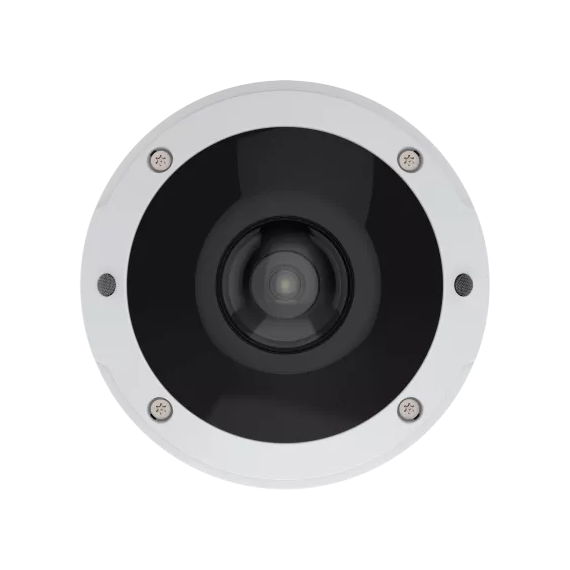

This compact, outdoor-ready mini dome offers outstanding images and complete 360° panoramic overview for a wide range of surveillance scenarios. It features two built-in microphones for audio surveillance and detection. And, enhanced security features to safeguard your system.
See and hear- 24/7
AXIS M3077-PLVE delivers a complete 180° or 360° overview, indoors or out, around the clock. This compact, IK10-rated vandal-resistant mini dome can be repainted to blend in seamlessly with any surroundings. And, the IP66 rating keeps the camera safe from dust and powerful blasts of water. It features two built-in microphones allowing for audio surveillance and detection. Furthermore, you can use one video stream to produce any dewarped views you'd like. And, it’s possible to stream panorama, quad, corner, and corridor views directly from the camera. Plus, you can digitally pan, tilt, and zoom in on areas of interest in up to four areas simultaneously.
Sharp images in any light
With its 6 MP sensor, AXIS M3077-PLVE offers excellent image quality regardless of the light conditions. It includes Axis Lightfinder for sharp, color images in poor lighting conditions and Axis Forensic WDR for high-quality images even when there’s both dark and light areas in the scene. Plus, there’s no need for extra lighting, thanks to Axis OptimizedIR you get 24/7 coverage for surveillance in pitch darkness up to 20 m (65 ft) or more. Furthermore, it’s possible to stream the complete 360° overview so you can be sure you record everything with no blind spots.
New generation camera
AXIS M3077-PLVE is packed with enhanced security functionality to prevent unauthorized access and safeguard your system. Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network. Additionally, signed firmware and secure boot guarantee that the firmware hasn’t been compromised and ensure only authorized firmware is installed. And, secure boot guarantees the camera is completely free of malware even after a factory default. It’s delivered factory-focused and features digital roll functionality allowing you to remotely adjust the rotation of the camera overview– no need to do it manually on each camera. Furthermore, Axis Zipstream with support for H.264 and H.265 video compression significantly reduces bandwidth and storage requirements.
