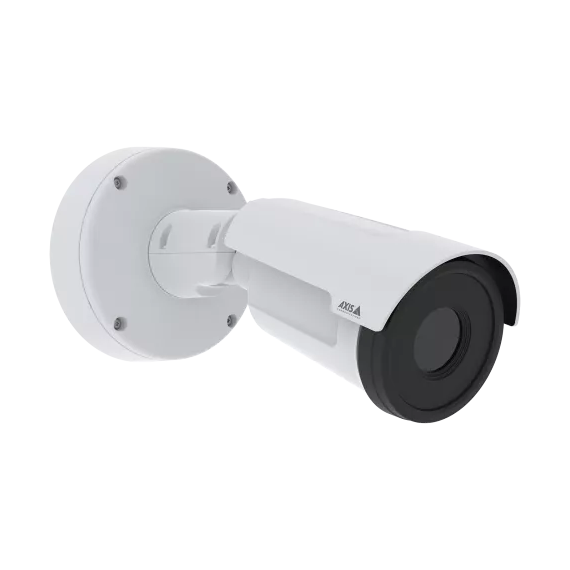

AXIS Q1961-TE 7mm Thermal Network Camera (02174-001) – 30fps Thermometric Camera with Fire Detection & IP66/IK10 Protection
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)
AXIS Q1961-TE 7mm Thermal Network Camera (02174-001) – 30fps Thermometric Camera with Fire Detection & IP66/IK10 Protection
The AXIS Q1961-TE 7mm (02174-001) is a thermometric surveillance camera built for critical infrastructure and industrial monitoring. It detects heat signatures rather than visible light, allowing operation in total darkness, fog, smoke, or challenging visibility conditions. It supports temperature measurement from -40°C to 350°C, with configurable detection zones for monitoring hotspots and early fire risks. The 7 mm lens provides a wide field of view, making it suitable for area monitoring rather than long-distance identification. With 30 fps thermal video, IP66/IP67 weather protection, and IK10 impact resistance, it is designed for harsh outdoor environments. It also includes Axis cybersecurity features and edge analytics for automated alerts and event triggers.
Key Features
- Thermal imaging camera (no visible-light sensor)
- 384 × 288 thermal resolution
- 7 mm lens with wide-angle coverage (~55° HFOV)
- 30 fps real-time thermal video output
- Temperature monitoring from -40°C to 350°C
- Early fire detection analytics
- Up to 10 configurable temperature zones
- Spot temperature measurement capability
- Works in complete darkness, smoke, and fog
- Electronic Image Stabilization (EIS)
- Edge-based analytics & alarm triggers
- IP66 / IP67 weather protection
- IK10 impact resistance
- PoE powered (Class 3)
- Edge storage support (microSD slot)
- Cybersecurity features (signed OS, secure boot)
