AXIS C1610-VE Network Sound Projector (02380-001) – Outdoor Vandal-Resistant PoE Speaker for Voice Announcements
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

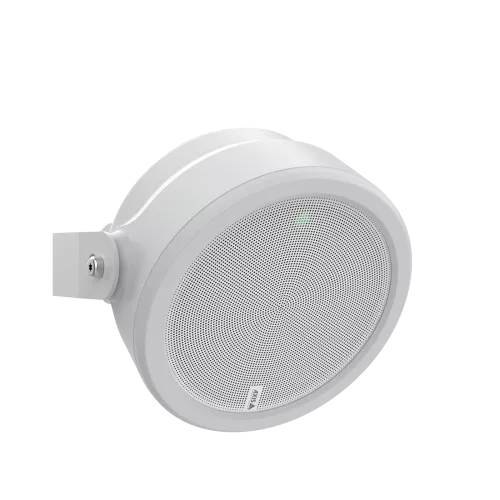

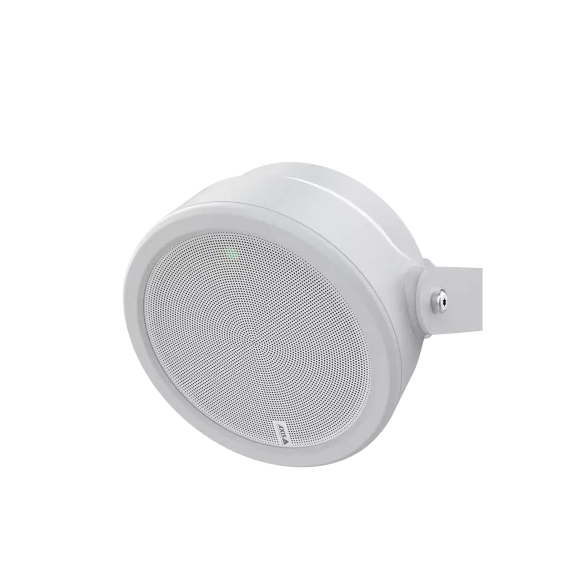

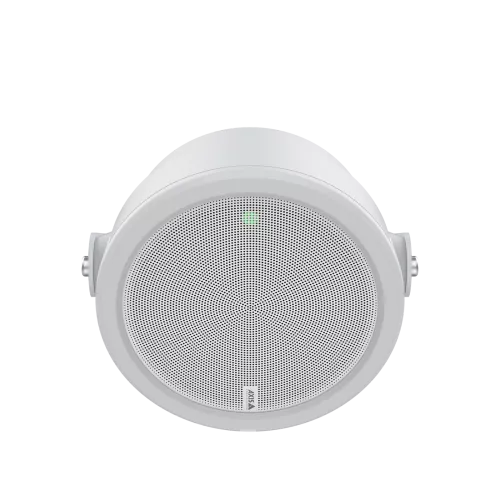

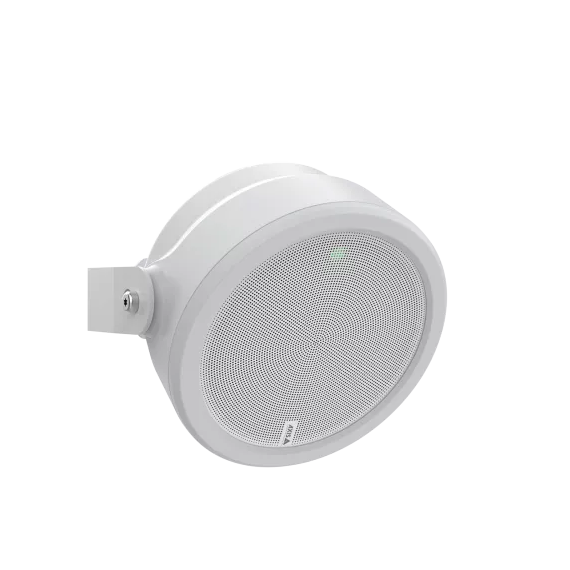

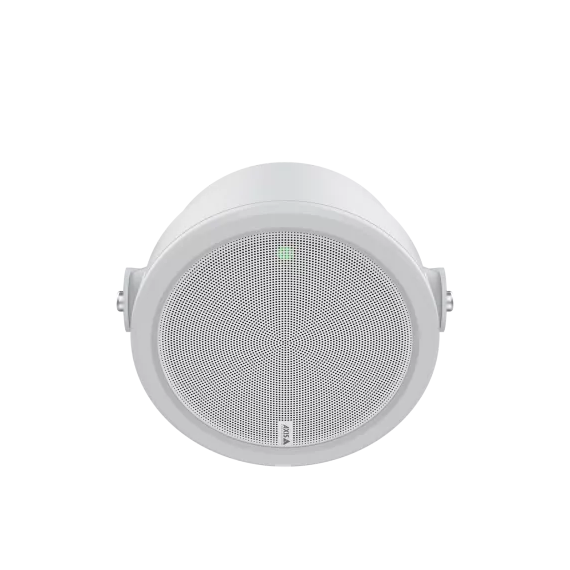

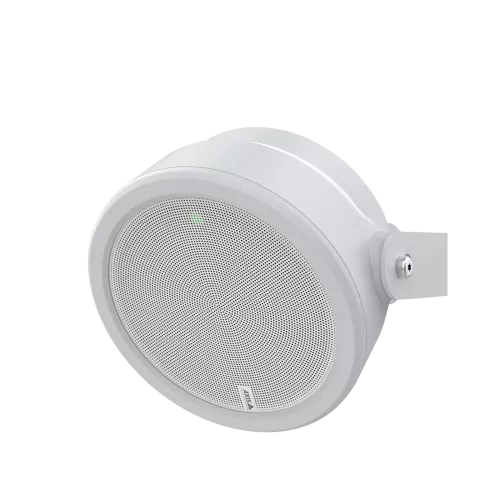

AXIS C1610-VE Network Sound Projector (02380-001) – Outdoor Vandal-Resistant PoE Speaker for Voice Announcements
The AXIS C1610-VE Network Sound Projector is a professional IP audio device built for reliable public address and security messaging. It delivers clear speech through a 4-inch full-range speaker with integrated digital signal processing (DSP), ensuring intelligible audio across wide coverage areas. The device connects directly to a standard IP network via Power over Ethernet (PoE), allowing both power and data through a single cable for simplified installation. It supports remote health monitoring, two-way audio capability, and integration with AXIS Audio Manager for scheduling and zone-based announcements. Designed for harsh environments, its vandal-resistant and weather-protected housing makes it suitable for transport hubs, campuses, parking areas, and industrial sites.
Key Features:
All-in-one network speaker with built-in amplifier and DSP
Power over Ethernet (PoE) for single-cable installation
High-quality 4” full-range speaker for clear voice projection
Vandal-resistant, outdoor-ready design (IP-rated housing)
Supports live, scheduled, and pre-recorded announcements
Remote health monitoring and speaker self-test capability
Two-way audio support via integrated microphone
AXIS Audio Manager Edge / Pro compatibility for zoning and scheduling
Suitable for indoor and outdoor environments
Ideal for security alerts, public announcements, and operational messaging
