AXIS Camera Station S1232 Rack Recording Server inc 16Tb storage
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

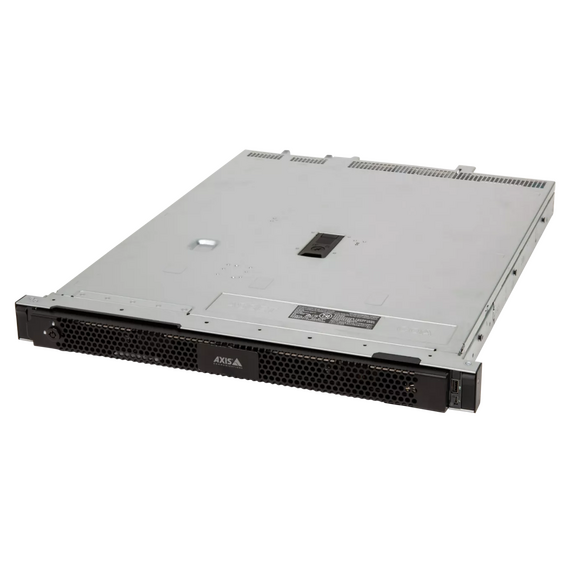

AXIS Camera Station S1232 Rack Recording Server with 16TB Storage
The AXIS Camera Station S1232 Rack Recording Server (16TB) is a powerful, enterprise-grade 1U rack-mounted recording server designed to deliver reliable, high-performance video management for medium to large surveillance installations. Supplied with 16TB of enterprise-class storage, pre-installed AXIS Camera Station Pro software, and 32 camera licences, it provides a complete out-of-the-box recording solution that minimises installation time while maximising system reliability.
Powered by an Intel® Xeon® processor with 32GB of ECC memory and enterprise-grade hardware, the S1232 Rack is engineered for continuous 24/7 operation. The system supports recording bitrates of up to 500 Mbit/s, validated for up to 64 video channels, making it ideal for demanding commercial, industrial and multi-site security applications.
The server features four hot-swappable enterprise hard drives configured in RAID 5 as standard, providing approximately 12TB of usable recording capacity from the installed 16TB while protecting against drive failure. Additional RAID levels (0, 1, 5, 6 and 10) are supported, offering flexibility to meet different performance and redundancy requirements.
Built with cybersecurity and resilience in mind, the AXIS S1232 Rack includes a Trusted Platform Module (TPM 2.0), encrypted operating system and recording drives, secure operating system recovery and redundant hot-plug power supplies. Combined with Axis' five-year warranty and professional support services, it delivers exceptional reliability for mission-critical surveillance systems.
Key Features
- Complete AXIS Camera Station Pro recording server
- Includes 16TB enterprise-class storage
- 32 AXIS Camera Station Pro licences included
- Validated for up to 64 video channels
- Recording throughput up to 500 Mbit/s
- Intel® Xeon® processor for enterprise performance
- 32GB ECC memory
- Four hot-swappable enterprise hard drives
- RAID 5 configured as standard (RAID 0, 1, 5, 6 and 10 supported)
- Microsoft Windows 11 IoT Enterprise LTSC pre-installed
- Trusted Platform Module (TPM 2.0) security
- Built-in operating system recovery
- Dual hot-plug redundant power supplies
- 1U rack-mount chassis
- Five-year Axis warranty
Ideal Applications
The AXIS Camera Station S1232 Rack is ideal for:
- Commercial buildings
- Corporate offices
- Warehouses and distribution centres
- Manufacturing facilities
- Retail environments
- Education campuses
- Healthcare facilities
- Multi-site surveillance systems
Designed as part of the complete Axis end-to-end ecosystem, the AXIS Camera Station S1232 Rack Recording Server with 16TB storage offers a scalable, secure and easy-to-deploy recording platform for organisations requiring dependable video management with enterprise-class performance.
