AXIS TU6004-E Cable 8M 4-Pack (02251-001) – F-Series Modular Camera Extension Cable for Sensors & Main Units
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)
AXIS TU6004-E Cable 8M 4-Pack (02251-001) – F-Series Modular Camera Extension Cable for Sensors & Main Units.

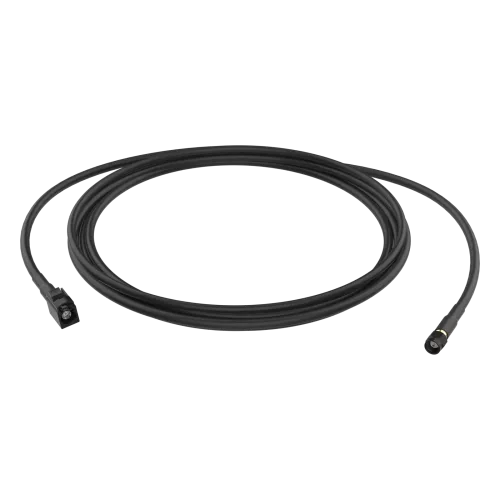

The AXIS TU6004-E 8M Cable (02251-001) is part of Axis’s modular camera ecosystem and is used to connect F-series sensor units (such as pinhole, fisheye, or bullet sensors) to their corresponding main processing units. Each cable is 8 meters long and built for both indoor and outdoor use, featuring rugged connectors (FAKRA to SMA) for secure and stable connectivity.
It supports high durability standards, including IP66, IP67, and IP6K9K ratings, making it suitable for harsh environments. The cable’s flexible design and 40 mm bending radius allow easy routing in tight installations. This pack includes 4 cables, making it ideal for multi-camera deployments in enterprise surveillance systems.
Key Features:
8-meter cable length per unit
Bulk pack of 4 cables (4PCS)
Designed for AXIS F-series modular cameras
Connects sensor units to main units
Rugged FAKRA to SMA connectors
Indoor and outdoor rated construction
IP66 / IP67 / IP6K9K environmental protection
40 mm bending radius for flexible installation
Supports stable high-speed video signal transmission
Suitable for ATMs, transport, retail, and industrial setups
Compatible with AXIS modular sensor ecosystem
Designed for professional surveillance deployments
