AXIS D1110 4K Video Decoder (02282-001) - HDMI Network Decoder with 4K Output, Multiview & Digital Signage Support
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)
AXIS D1110 4K Video Decoder (02282-001) – HDMI Network Decoder with 4K Output, Multiview & Digital Signage Support

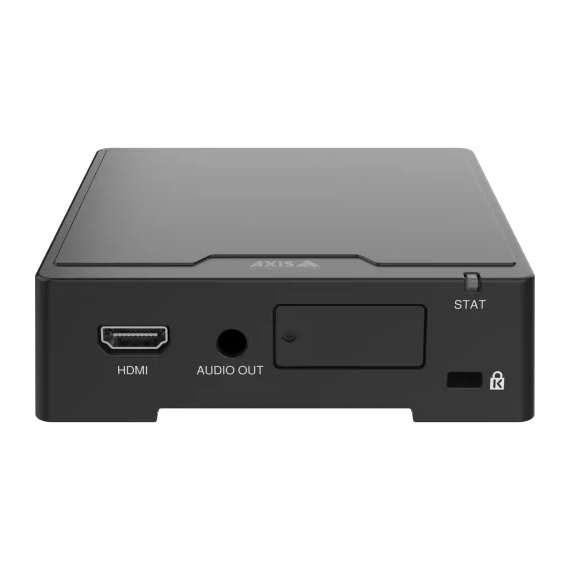

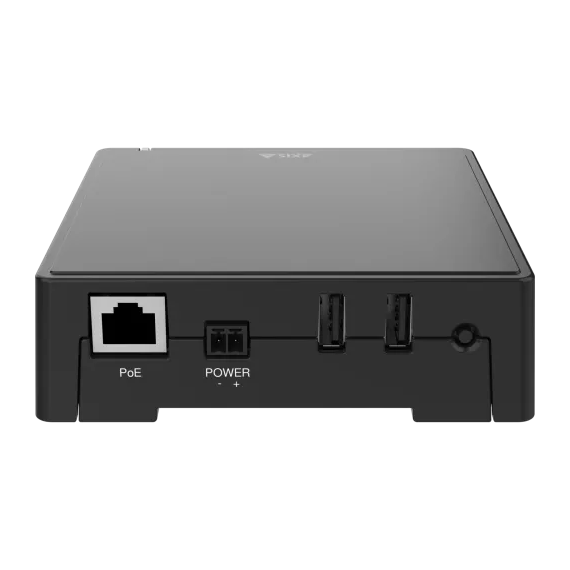

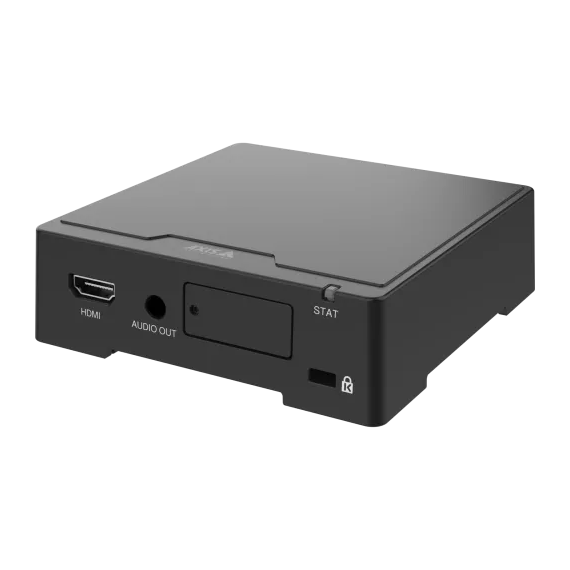

The AXIS D1110 4K Video Decoder is a standalone video decoding device that converts IP camera streams into HDMI output for direct display on monitors and TVs. It supports up to 4K UHD resolution at 30 fps, or 1080p at 60 fps, and can handle multiple camera streams simultaneously in sequence or multiview layouts (up to 9–16 streams depending on configuration). It is commonly used in security control rooms, retail monitoring, and public display systems where live camera feeds or digital signage must be shown without a full computer system. The device supports PoE and DC power, includes audio output, and offers flexible mounting options for professional installations.
Key Features:
4K UHD video decoding (HDMI output)
Up to 3840 × 2160 @ 30 fps display support
1080p @ 60 fps alternative output mode
Supports Multiview (up to ~9–16 streams)
Sequence view for rotating camera feeds
Works without PC or VMS required (standalone mode)
HDMI output for monitors and TVs
Audio output (3.5mm jack)
PoE or 12–28V DC power input
Supports Axis Camera Station integration
MicroSD card slot for local configuration/logs
VESA mount compatibility for monitor installation
Secure Axis Edge Vault cybersecurity platform
Suitable for surveillance + digital signage use
