AXIS D2110-VE Security Radar (01564-001) – 180° Area Surveillance Radar Sensor with 200–280 ft Detection Range & PoE Out
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)
AXIS D2110-VE Security Radar (01564-001) – 180° Area Surveillance Radar Sensor with 200–280 ft Detection Range & PoE Out

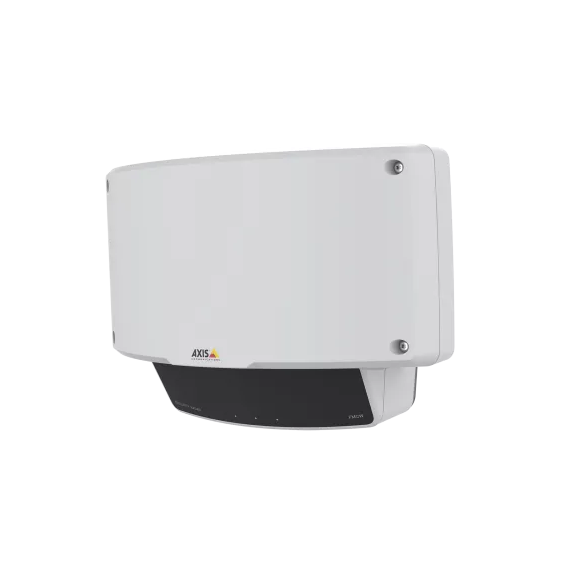

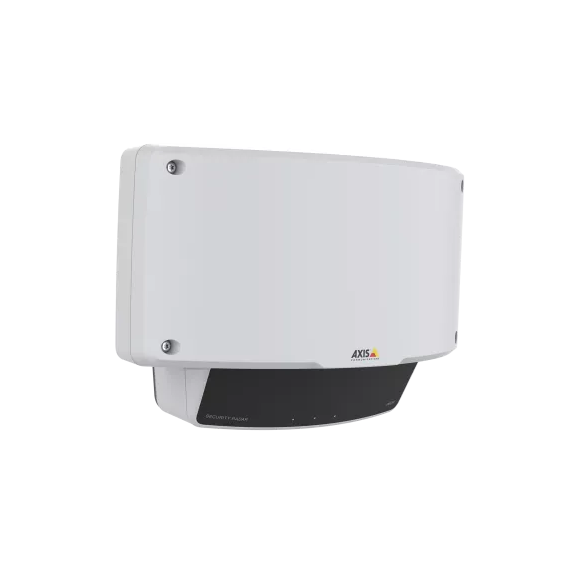

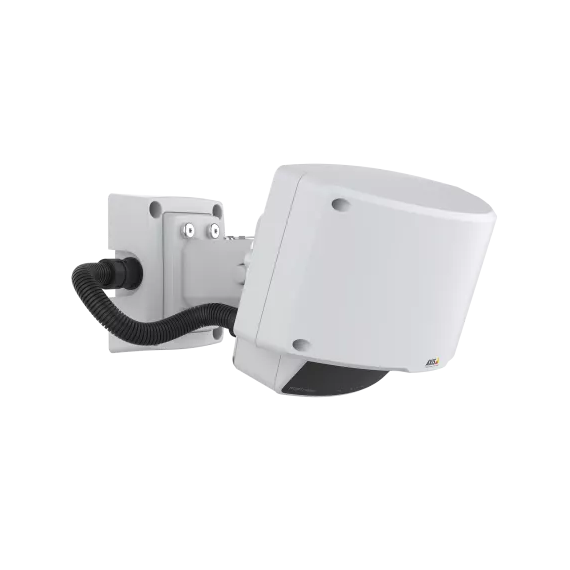

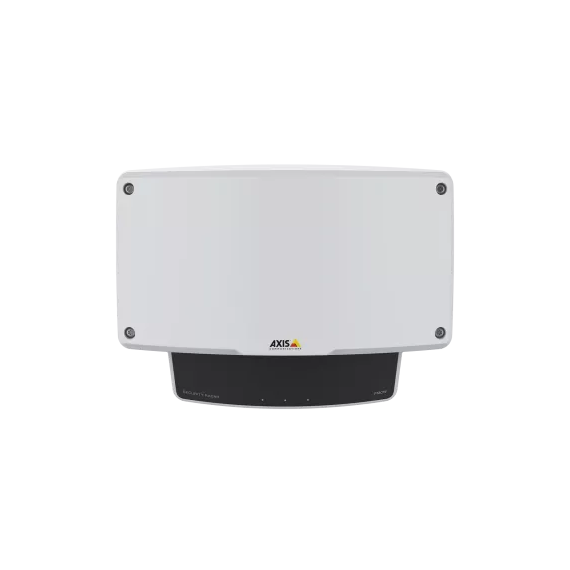

The AXIS D2110-VE Security Radar is an advanced outdoor surveillance device designed for reliable perimeter protection. Using 24 GHz FMCW radar technology, it can detect human and vehicle movement with high accuracy, even in complete darkness, fog, rain, or dust. It provides a 180° field of detection, with a range of up to 200 ft (60 m) for people and 280 ft (85 m) for vehicles. The radar can classify object type, direction, and speed, reducing false alarms compared to traditional cameras. It also supports PoE with PoE-out, allowing connection and power delivery to an additional device such as a camera or horn speaker for visual verification or deterrence. Built for harsh environments, it is rated IP66, IK08, and NEMA 4X, making it suitable for industrial sites, parking areas, and perimeter security systems.
Key Features
- 180° wide-area radar detection coverage
- Detects and classifies people, vehicles, and unknown objects
- Detection range: 200 ft (people) / 280 ft (vehicles)
- 24 GHz FMCW radar technology
- Works in all weather and lighting conditions
- Low false alarm rate with intelligent tracking
- PoE-powered with PoE-out support for external device powering
- Integrates with VMS systems (AXIS Camera Station & ONVIF)
- Edge analytics: speed, direction, and object tracking
- Supports microSD edge storage
- IP66 / IK08 / NEMA 4X rugged outdoor design
- Built-in tamper detection (shock/case open alerts)
- Ideal for perimeter, parking, and industrial security
No reviews found
