AXIS D2210-VE Security Radar (02770-001) – 95° FMCW Radar with 300 ft Detection & PoE Edge Integration
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)
AXIS D2210-VE Security Radar (02770-001) – 95° FMCW Radar with 300 ft Detection & PoE Edge Integration

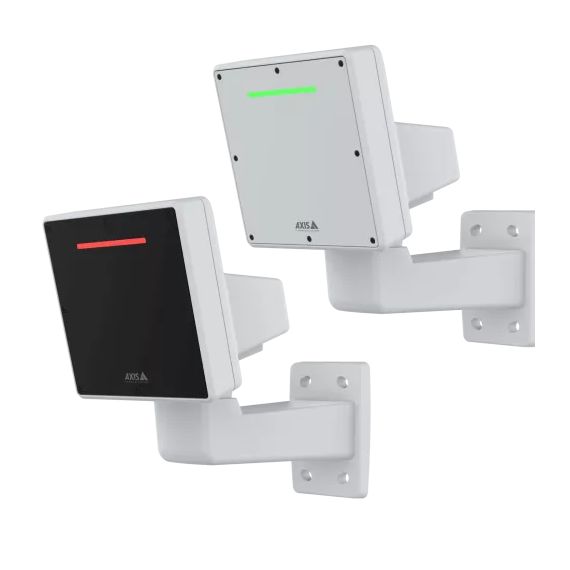

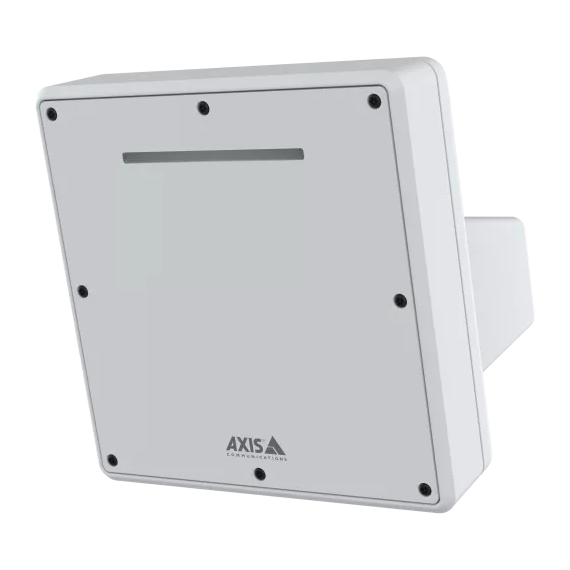

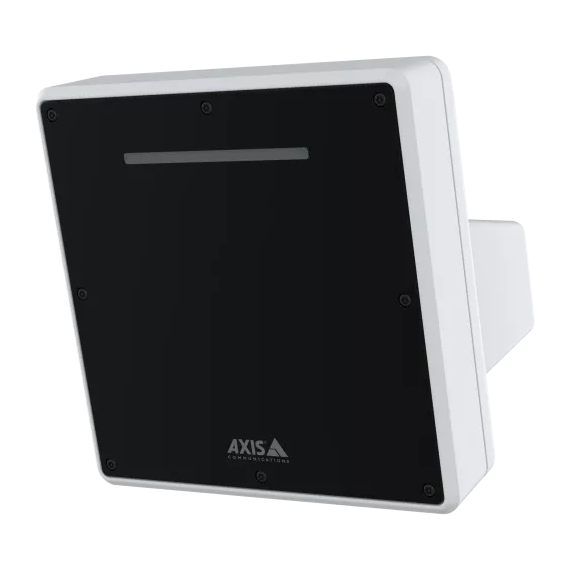

The AXIS D2210-VE Security Radar (02770-001) is a high-performance FMCW radar designed for 24/7 area and traffic monitoring in demanding outdoor environments. It detects, classifies, and tracks people and vehicles with high precision, even in darkness, rain, fog, or difficult lighting conditions. With a 95° field of detection and long-range monitoring capabilities, it helps reduce false alarms compared to traditional motion detection systems. The radar can operate standalone or integrate with PTZ cameras, horn speakers, and lighting systems for automated response and visual verification. Its rugged IP66/IP67-rated design ensures reliable performance in harsh environmental conditions.
Key Features
60 GHz FMCW radar technology for accurate detection
95° horizontal field of detection
Up to ~300 ft (vehicles) / ~200 ft (people) area detection range
Road monitoring support up to ~492 ft detection range
Real-time classification of humans, vehicles, and unknown objects
PoE-powered with single-cable installation
PoE out for powering external devices (camera, speaker, etc.)
Built-in analytics to reduce false alarms (animals, swaying objects)
Edge-to-edge integration with AXIS cameras and speakers
Dynamic LED strip for deterrence and status indication
Supports microSD edge storage
IP66 / IK10 / NEMA 4X-rated rugged housing
Compatible with PTZ autotracking and AXIS Speed Monitor
No reviews found
