AXIS F7225-RE Pinhole Sensor 8-Pack (02363-021) – Covert 1080p Modular Surveillance Camera Sensor for ATM & Tight Spaces
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)
AXIS F7225-RE Pinhole Sensor 8-Pack (02363-021) – Covert 1080p Modular Surveillance Camera Sensor for ATM & Tight Spaces

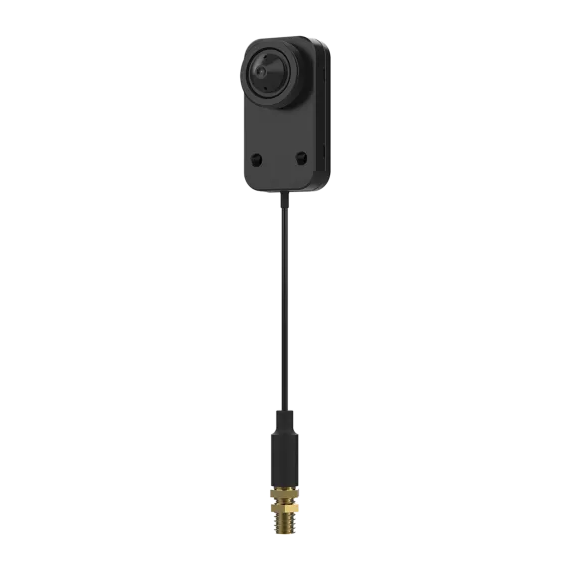

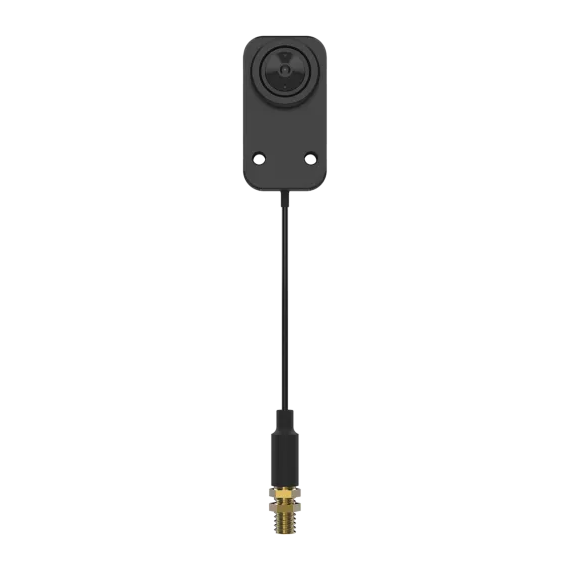

The AXIS F7225-RE Pinhole Sensor is part of Axis’s modular surveillance system, where the camera unit is separated into a small discreet sensor and a main processing unit. This 8-pack version is designed for large deployments, offering cost-efficient installation in environments requiring hidden or non-intrusive monitoring. Each sensor captures 1080p HD video at up to 60 fps with a 3.7 mm lens providing around a 97° horizontal field of view, enabling wide and clear coverage from very small openings. Built for flexibility, it connects to AXIS F91 main units via cable and supports advanced imaging features such as Forensic WDR and day/night switching, making it suitable for ATMs, retail machines, and secure indoor/outdoor installations.
Key Features
1080p Full HD resolution (1920 × 1080)
Up to 60 fps video performance
Covert pinhole design for hidden surveillance
3.7 mm fixed lens with ~97° horizontal field of view
Modular system (works with AXIS F-series main units)
Supports Forensic WDR for challenging lighting
Day/Night functionality with IR cut filter
IP67-rated sensor housing for durability
Suitable for ATM, machines, and tight installation spaces
Bulk 8-pack for large-scale deployments
One VMS license for multiple sensors (system-level efficiency)
