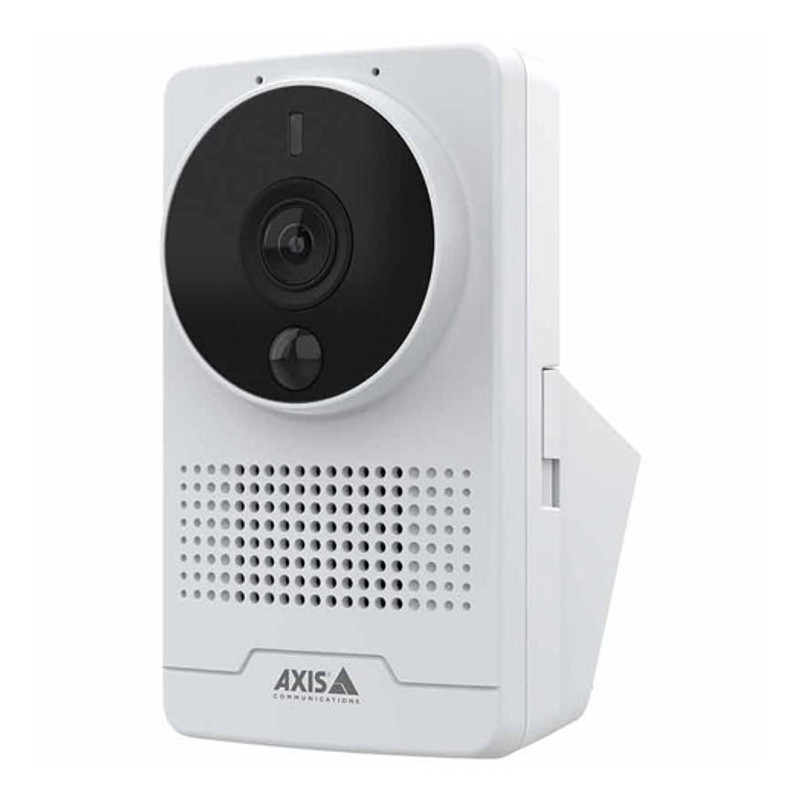

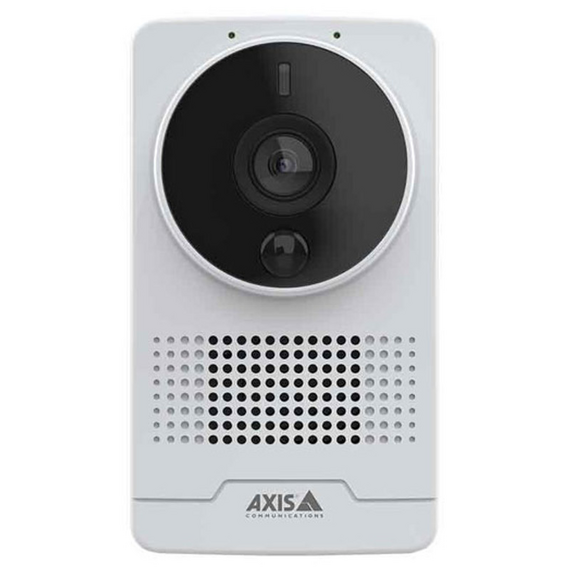

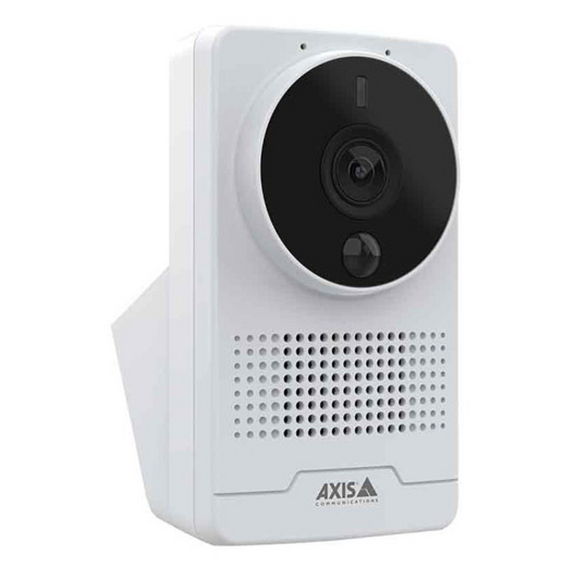

Axis M1075-L 2MP IP Cube camera with two-way audio and 18M IR
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)
Ideal for small stores and residential care, this compact, easy-to-install camera offers two-way audio and great image quality - around the clock. It supports advanced analytics based on deep learning on the edge.
Ensure privacy and security
This fully featured camera is designed with privacy and security in mind. It features a tally LED to indicate video streaming or recording. And, with AXIS Live Privacy Shield, it’s easy to remotely monitor activities while protecting privacy. Plus, a built-in Pencil privacy filter ensures discreet images that protect privacy. Furthermore, AXIS M1075-L is packed with built-in cybersecurity features to help prevent unauthorized access and safeguard your system. Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis products on your network. Additionally, signed firmware and secure boot guarantee that the firmware hasn’t been compromised and ensure only authorized firmware is installed.
Video—and audio too!
AXIS M1075-L offers HDTV 1080p resolution with two-way audio and great image quality. Thanks to an IR-corrected lens, you’ll enjoy professional-quality video both day and night. It features a built-in speaker and dual microphones. Plus, voice enhancer ensures great two-way audio communication. And, with support for Session Initiation Protocol (SIP), it’s easy to integrate with IP-systems. Furthermore, this easy-to-install box camera can be mounted in corners for complete coverage with a 103° field of view.
Extended possibilities
This compact camera includes a deep learning processing unit (DLPU) enabling advanced features and powerful analytics based on deep learning on the edge. Thanks to AXIS Object Analytics including time in area feature, it lets you track whenever an object stays in a defined area longer than a user-defined time, for example, to detect loitering. With passive infrared (PIR) sensor, it can detect movement even in total darkness. And, an HDMI port lets you display live video on a public viewing monitor. Furthermore, this camera offers support for PoE and includes both an I/O and USB port for optional wifi-dongle.
No reviews found
