AXIS M3057-PLR Mk II 6MP Outdoor Fisheye Network Camera (360° Panoramic View, IR, Transportation Ready)
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

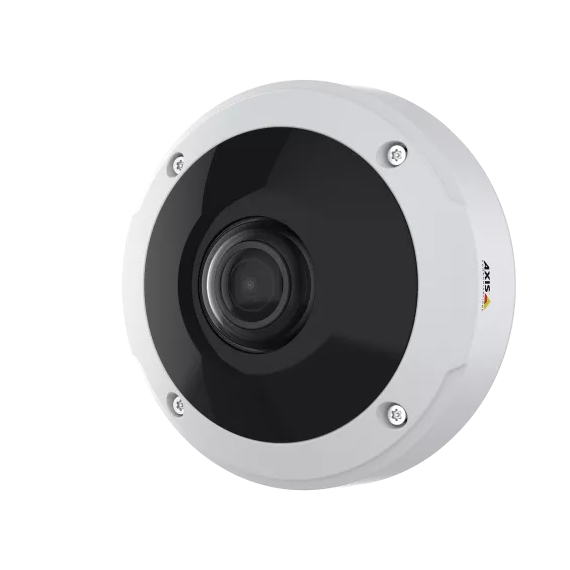

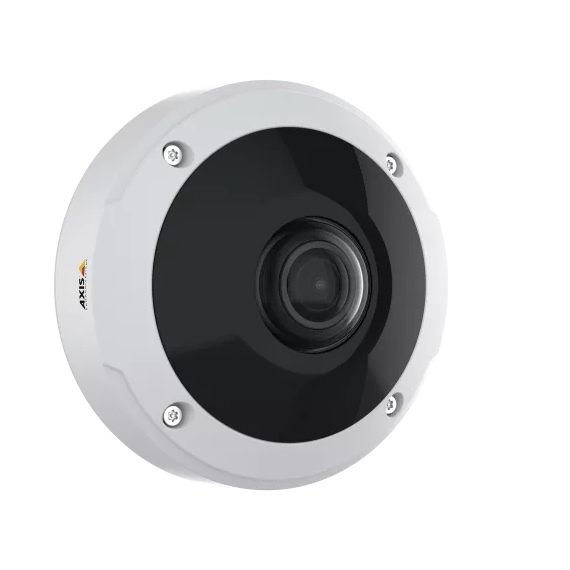

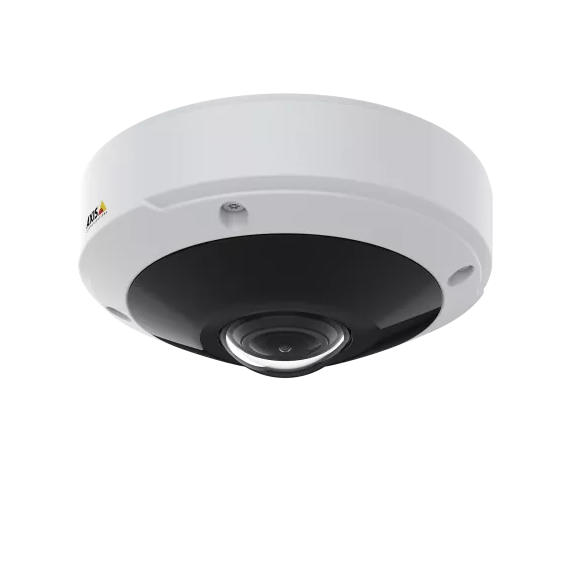

AXIS M3057-PLR Mk II 6MP Outdoor Fisheye Network Camera (360° Panoramic View, IR, Transportation Ready)
The AXIS M3057-PLR Mk II offers a full panoramic view from a single camera, reducing blind spots and minimizing the need for multiple devices. Equipped with a 1/1.8" CMOS sensor and a 1.56 mm fisheye lens, it captures 6MP video at up to 60 fps with a 183° field of view. Designed specifically for buses, trains, and other demanding environments, it features built-in OptimizedIR, Lightfinder, Forensic WDR, and support for multiple dewarped views including panorama, quad, corridor, and corner views. Its IP67, NEMA 4X, and IK10-rated housing ensures reliable operation in harsh outdoor conditions.
Key Features
6MP resolution (2016 × 2016) panoramic imaging
Complete 180° and 360° overview
1.56 mm fixed fisheye lens
183° horizontal and vertical field of view
Up to 60 fps video streaming
Built-in OptimizedIR with night vision up to 20 m (66 ft)
Axis Lightfinder for excellent low-light performance
Forensic WDR for challenging lighting conditions
Multiple dewarped views (Panorama, Quad, Corner, Corridor)
Digital PTZ and ±180° digital roll
H.264 and H.265 with Axis Zipstream technology
MicroSD card support for edge storage
Transportation industry compliant (EN 50155 & EN 45545-2)
IP67, NEMA 4X, and IK10-rated rugged housing
PoE support for simplified installation
Built-in cybersecurity features and secure firmware
