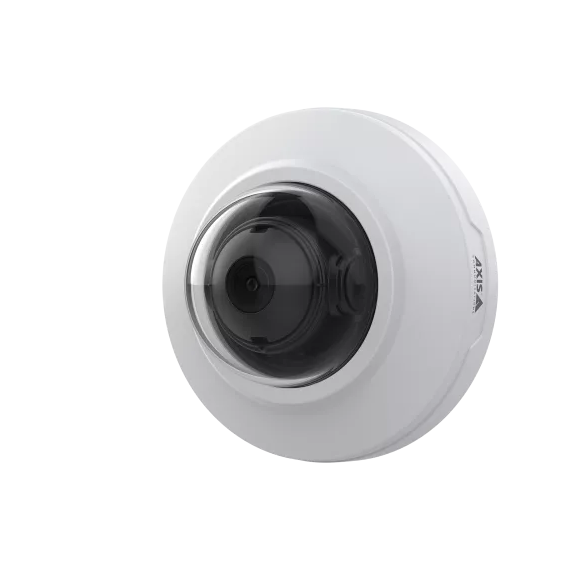

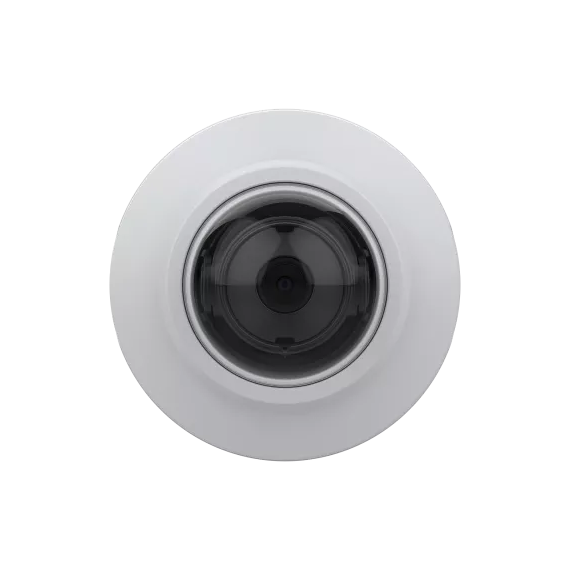

Axis M3085-V indoor vandal-resistant dome IP camera with 2MP resolution with Axis Object Analytics
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)
This cost-efficient, compact mini dome delivers great image quality in challenging light conditions. And, with a deep learning processing unit, you can benefit from advanced analytics based on deep learning on the edge.
Great image quality
AXIS M3085-V offers great 2 MP image quality even in challenging light conditions. Thanks to Wide Dynamic Range (WDR), it ensures clarity even when there’s both dark and light areas in the scene. And, with Lightfinder, you get sharp, color images even in low light. Plus, out-of-the-box it offers a factory-focused fixed field of view so there’s no manual focusing required.
Extended possibilities
AXIS M3085-V offers support for intelligent analytics based on deep learning on the edge. This means it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. AXIS Object Analytics comes preinstalled and knows what to detect so you can focus on objects of interest - all tailored to your specific needs. Additionally, with support for ACAP, you can add value to your system with tailor-made applications. Furthermore, this compact dome offers the flexibility to add audio or I/O connectivity using accessories.
Compact and cost-efficient
This cost-efficient mini dome offers a wide range of mounting accessories for flexible and discreet installation. With bayonet-fitted casing, it simply twists on and off for fast, convenient installation. Compact in design, this easy-to-install, vandal-resistant camera is protected against redirection and defocusing as well as dust and dripping water. It offers Axis Zipstream with H.264/H.265 for reduced bandwidth and storage requirements. And thanks to edge storage you can record directly to an onboard memory card. Furthermore, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network.
Wide Dynamic Range - WDR
Lightfinder
