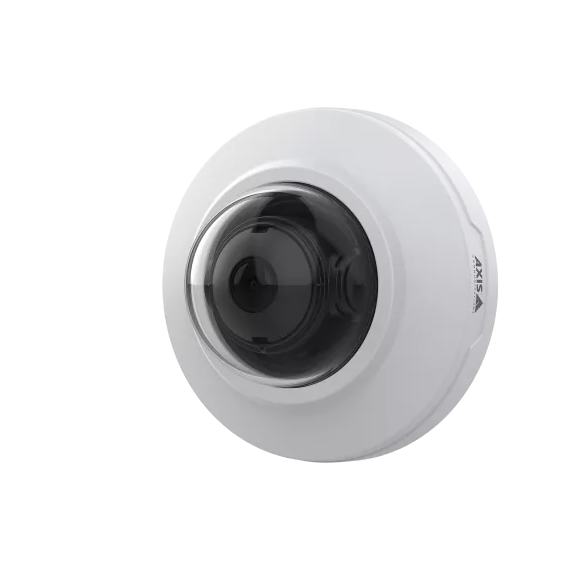

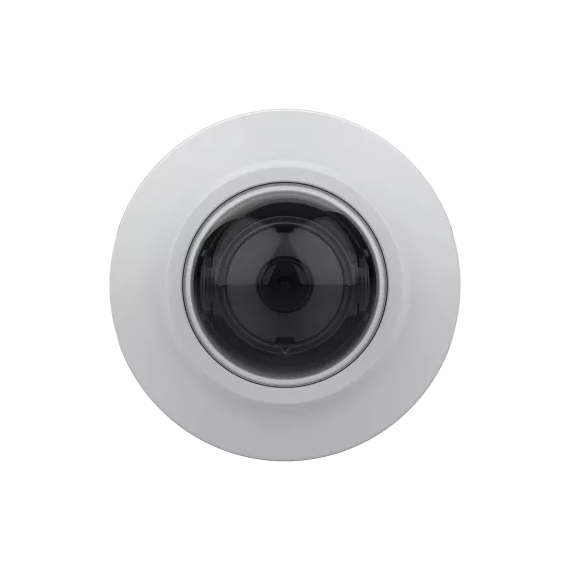

AXIS M3086-V 4MP Indoor Fixed Mini Dome Camera (02374-001, Wide-Angle, Deep Learning, WDR)
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)
AXIS M3086-V 4MP Indoor Fixed Mini Dome Camera (02374-001, Wide-Angle, Deep Learning, WDR)
The AXIS M3086-V Indoor Fixed Dome Camera is a cost-efficient yet intelligent surveillance solution designed for offices, retail spaces, and corridors. It captures 4MP video (2688 × 1512) using a 1/2.7" CMOS sensor with a 2.4 mm fixed lens that provides a wide 130° horizontal field of view. Built on Axis’s deep learning platform, it supports AXIS Object Analytics for detecting and classifying people and vehicles at the edge. With Forensic WDR and Lightfinder technology, it ensures clear and balanced images even in challenging light conditions.
Its compact design, IK08 vandal-resistant housing, and support for Zipstream compression make it ideal for efficient indoor security deployments with reduced bandwidth and storage usage.
Key Features:
4MP (2688 × 1512) high-resolution video
2.4 mm fixed wide-angle lens (130° horizontal FOV)
Deep Learning Processing Unit (DLPU)
AXIS Object Analytics (people & vehicle detection)
Forensic WDR for balanced exposure in mixed lighting
Axis Lightfinder for low-light colour imaging
Zipstream H.264/H.265 compression for reduced bandwidth
Compact indoor mini dome design
IK08 vandal-resistant housing
Edge storage via microSD card slot
PoE-powered for simple installation
ONVIF compatibility for VMS integration
