AXIS Surveillance Card 512GB (02365-001) - High-Endurance microSDXC Edge Storage for IP Cameras
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

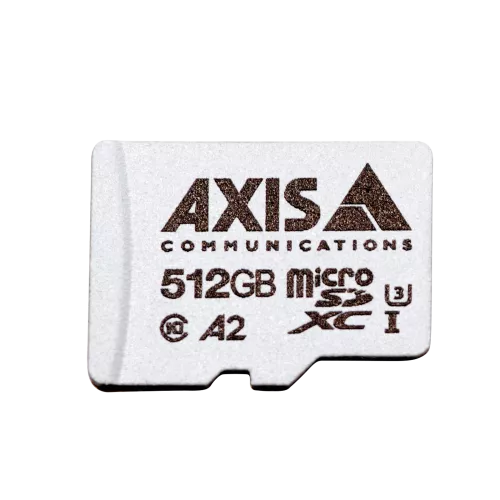

AXIS Surveillance Card 512GB 02365-001 High Endurance microSDXC Card
The AXIS Surveillance Card 512GB 02365-001 is a high-endurance microSDXC card developed specifically for demanding video surveillance and edge storage applications. With its large 512GB capacity, it provides substantially more local recording space for compatible Axis IP cameras.
Recording directly to the camera provides a flexible alternative to relying entirely on an NVR, DVR or on-site server. It can also be used as failover storage, allowing footage to continue recording locally if the network connection is interrupted. When used with Axis Zipstream technology, the card can efficiently store high-resolution surveillance footage while helping maximise available recording capacity.
Designed for continuous surveillance use, the card offers 600 TBW endurance and supports health monitoring with compatible Axis products, helping provide reliable long-term storage for professional CCTV installations.
Key Features:
- 512GB storage capacity
- High-endurance microSDXC surveillance card
- Designed specifically for Axis IP cameras
- 600 TBW endurance
- Suitable for continuous and event-based edge recording
- Ideal for primary storage or failover recording
- Supports high-resolution local video recording
- Optimised for use with Axis Zipstream technology
- UHS Speed Class U3
- Sequential read speeds up to 100 MB/s
- Sequential write speeds up to 39 MB/s
- Health monitoring ready
- SD card adapter included
- Compatible with Axis products supporting SD card storage
- Operating temperature from -25°C to 85°C
- Axis 5-year warranty
