AXIS M4318-PLVE 12MP 360° Panoramic Outdoor Mini Dome Camera (Deep Learning, IR, Sharpdome)
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

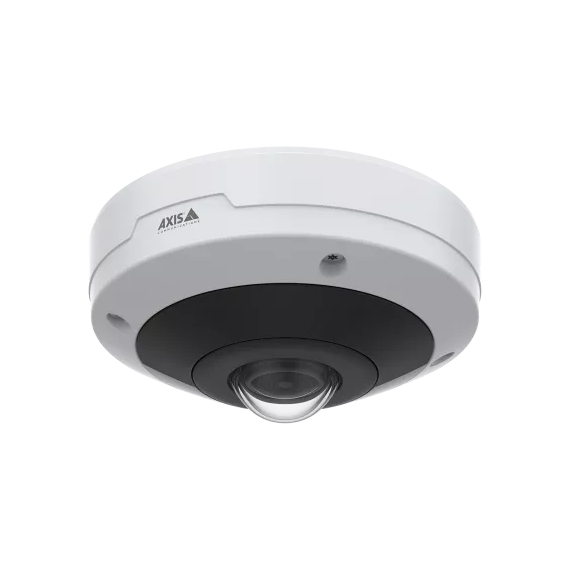

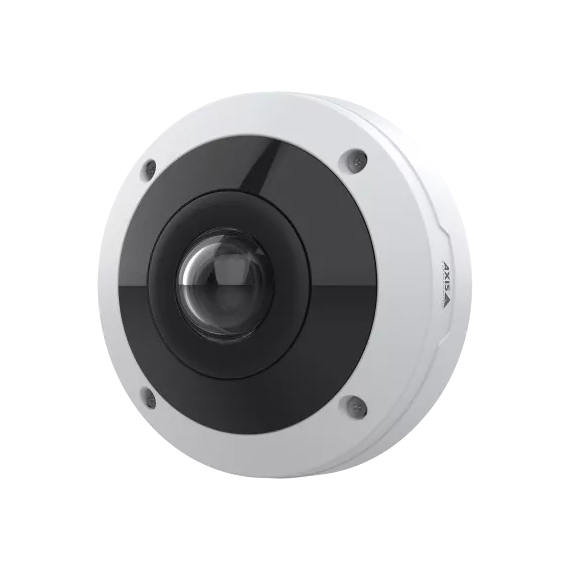

AXIS M4318-PLVE 12MP 360° Panoramic Outdoor Mini Dome Camera (Deep Learning, IR, Sharpdome)
The AXIS M4318-PLVE is part of Axis’s advanced panoramic camera lineup, designed to replace multiple fixed cameras with a single 360° device. It uses a 12MP sensor and a 1.2 mm fisheye-style lens to capture a full circular view with dewarped display options like panorama, quad, and corridor modes. With integrated IR illumination, it ensures usable night surveillance even in complete darkness. The camera also includes a deep learning processing unit (DLPU), enabling AI-based analytics such as object detection and classification directly on the edge, making it suitable for intelligent modern security systems.
Key Features:
12MP (2992 × 2992) ultra-high-resolution fisheye imaging
True 360° panoramic coverage (no blind spots)
1.2 mm fixed ultra-wide lens
Built-in IR illumination with individually controlled LEDs
Axis Lightfinder for excellent low-light colour performance
Forensic WDR for high-contrast environments
Deep learning processing unit (DLPU) for edge AI analytics
Axis Object Analytics (people & vehicle detection)
Multiple dewarped views (quad, panorama, corridor, corner)
Digital PTZ for flexible monitoring
IP66/IP67 weather protection and IK10 vandal resistance
PoE single-cable installation
microSD card support for edge recording
