AXIS M7116 16-Channel Video Encoder (02036-003) – HD Analog to IP Converter with Zipstream & PTZ Support
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

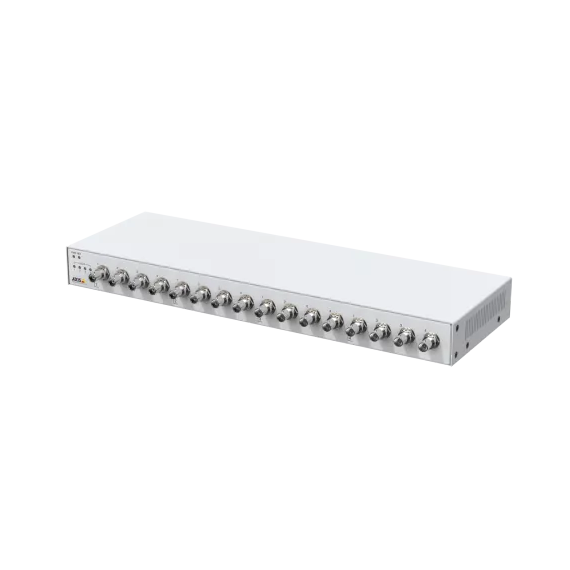

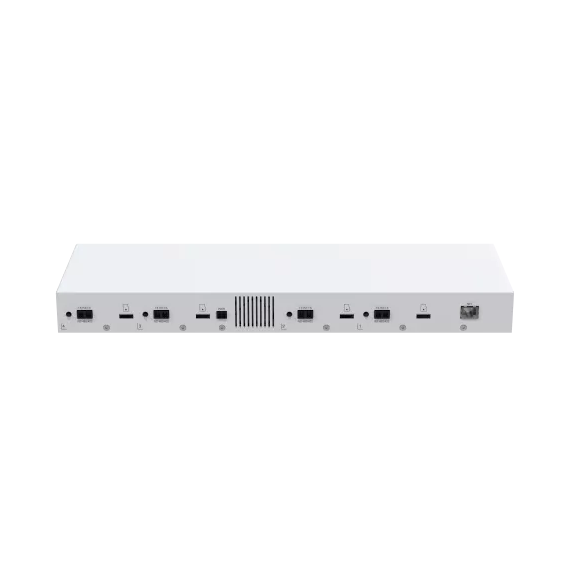

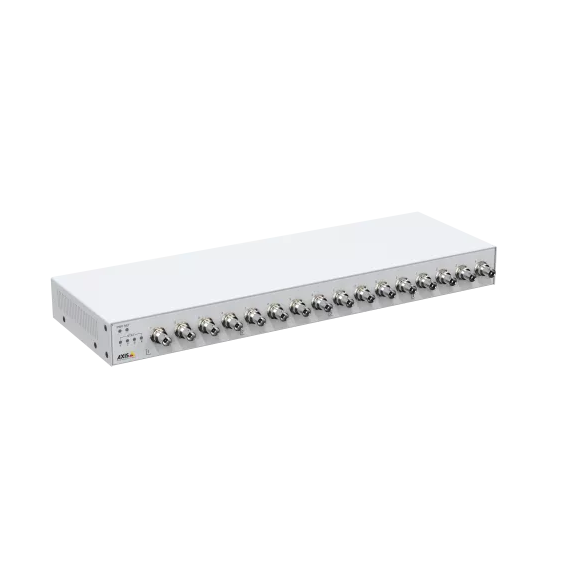

AXIS M7116 16-Channel Video Encoder (02036-003) – HD Analog to IP Converter with Zipstream & PTZ Support
The AXIS M7116 Video Encoder is designed for efficient migration from analog CCTV systems to IP-based surveillance without replacing existing cameras. It supports 16 analog channels simultaneously, delivering smooth video at up to 30 frames per second per channel. With Zipstream technology, it significantly reduces bandwidth and storage requirements while maintaining image quality. The encoder also supports RS-485 PTZ control, edge storage via SD card, and intelligent analytics such as motion detection. Built on Axis’s secure platform, it includes signed firmware and secure boot to protect against unauthorized access, making it suitable for enterprise, industrial, and transportation surveillance upgrades.
Key Features
16-channel analog to IP video encoder
Supports all standard resolution analog cameras (NTSC/PAL)
Up to 30 fps per channel
H.264 / H.265 / MJPEG compression
Axis Zipstream for bandwidth optimization
PTZ control via RS-485
Edge storage support (microSD slots)
Intelligent analytics (motion & tamper detection)
Remote access via IP network / browser
Rack-mountable design for enterprise use
Secure boot & signed firmware for cybersecurity
Seamless migration from analog to IP systems
Compatible with Axis Camera Station & ONVIF systems
