AXIS P3277-LVE 5MP Outdoor AI Dome Network Camera (03153-001)
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

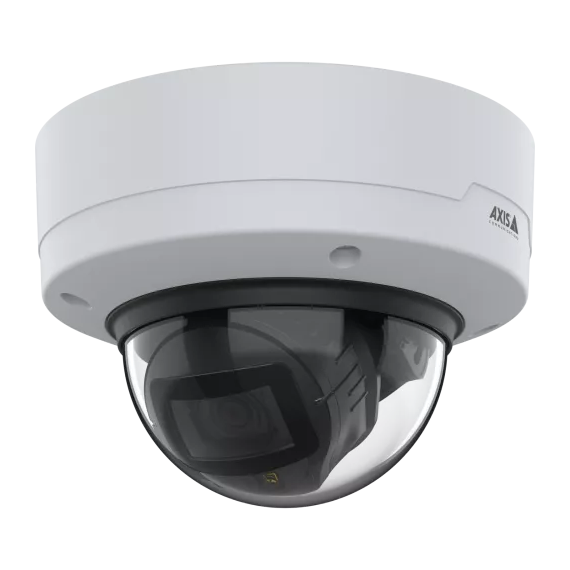

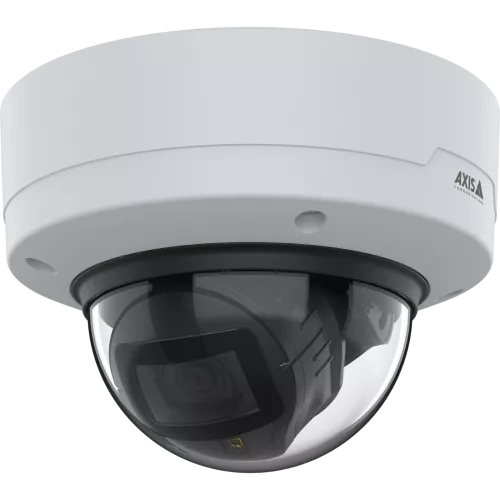

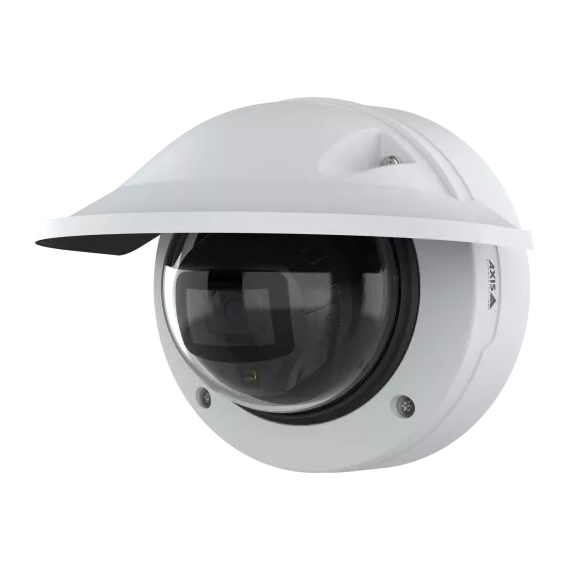

AXIS P3277-LVE 5MP Outdoor AI Dome Network Camera (03153-001)
The AXIS P3277-LVE (03153-001) is a rugged 5-megapixel outdoor fixed dome network camera designed for high-performance video surveillance in critical security environments. Built on Uniview ARTPEC platform with deep learning processing unit (DLPU), it supports advanced edge-based AI analytics such as object classification, detection, and tracking. It delivers sharp 5MP resolution video with Lightfinder 2.0 for enhanced low-light color reproduction and Forensic WDR for balanced image quality in complex lighting conditions. With OptimizedIR, IP66, IK10, and NEMA 4X ratings, it is engineered for reliable operation in harsh outdoor environments.
Key Features
5MP (2592 × 1944) high-definition video resolution
AI-powered edge analytics with object detection, classification & tracking
Deep Learning Processing Unit (DLPU) for advanced on-camera intelligence
Lightfinder 2.0 for superior color imaging in near-dark conditions
Forensic WDR for optimized detail in high-contrast scenes
Built-in OptimizedIR for effective night surveillance
Varifocal motorized lens (3.0 – 8.5 mm) with remote zoom & focus
Uniview Zipstream technology for reduced bandwidth and storage usage
Uniview Edge Vault hardware-based cybersecurity protection
Rugged enclosure with IP66, IK10, and NEMA 4X ratings
Wide operating temperature range: -40°C to 50°C
Power over Ethernet (PoE) for simplified installation
ONVIF compliant for broad VMS integration
