AXIS P3827-PVE 7MP 180° Panoramic Outdoor Dome Camera (Multi-Sensor, Deep Learning Analytics)
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

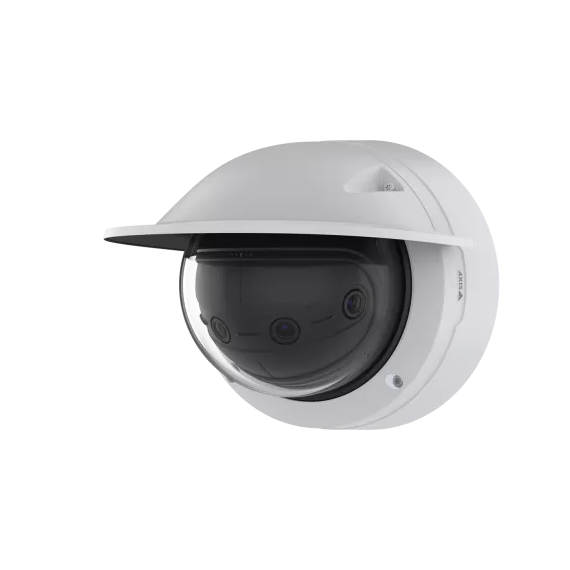

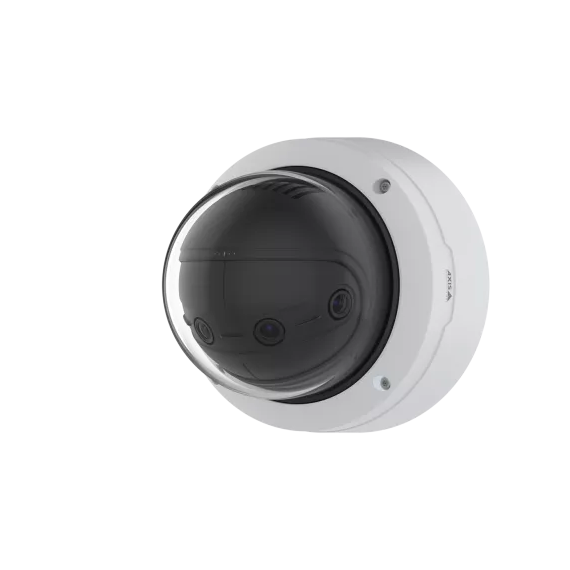

AXIS P3827-PVE 7MP 180° Panoramic Outdoor Dome Camera (Multi-Sensor, Deep Learning Analytics)
The AXIS P3827-PVE delivers a stitched 180° horizontal and 90° vertical panoramic image from four synchronized sensors while operating under a single IP address. Built on the ARTPEC-8 platform, it includes a deep learning processing unit (DLPU) that enables advanced AI-powered analytics such as people and vehicle detection through AXIS Object Analytics.
Features like Lightfinder, Forensic WDR, horizon straightening, and seamless image stitching ensure excellent image quality in challenging environments. Its rugged IP66, IP67, and IK10-rated housing makes it ideal for outdoor deployments, including parking lots, campuses, industrial facilities, and perimeter security.
Key Features:
7MP multi-sensor panoramic camera
Seamless 180° horizontal and 90° vertical coverage
Four synchronized image sensors with one IP address
4 × 3.3 mm fixed lenses
Up to 30 fps video streaming
Lightfinder technology for enhanced low-light performance
Forensic WDR for high-contrast scenes
Deep Learning Processing Unit (DLPU)
AXIS Object Analytics for human and vehicle detection
Horizon straightening for natural panoramic viewing
Audio input support
H.264, H.265, and Axis Zipstream technology
PoE+ support for simplified installation
MicroSD card slot for edge storage
IP66, IP67, IK10, and NEMA 4X-rated outdoor protection
Secure boot, signed OS, and Axis Edge Vault cybersecurity features
No reviews found
