AXIS P5676-LE 4MP Outdoor PTZ Network Camera (31x Optical Zoom, IR, Lightfinder 2.0, Deep Learning Analytics)
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

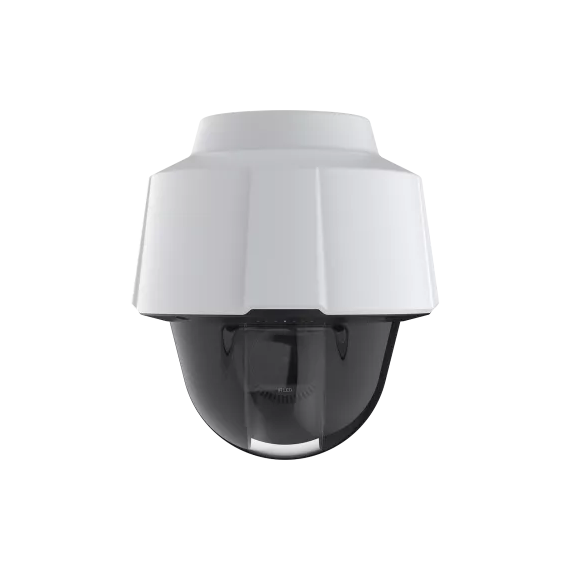

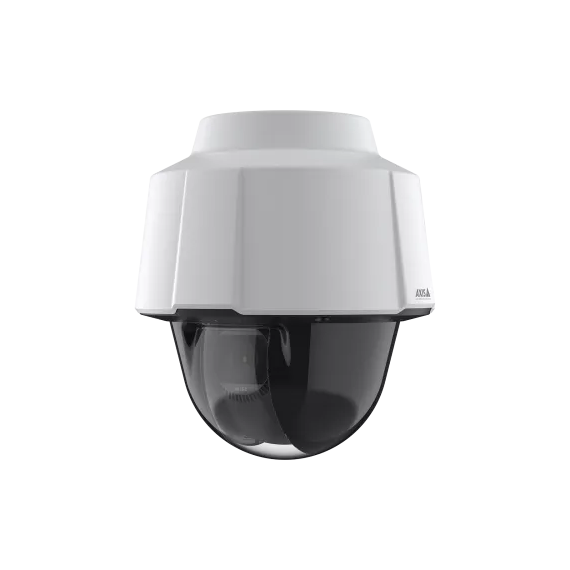

AXIS P5676-LE 4MP Outdoor PTZ Network Camera (31x Optical Zoom, IR, Lightfinder 2.0, Deep Learning Analytics)
The AXIS P5676-LE PTZ Dome is designed for flexible, long-range surveillance where both wide coverage and detailed zoom are required. It uses a 4MP sensor combined with a 4.6–133 mm motorized lens offering up to 31x optical zoom, allowing operators to smoothly switch from broad scene overview to precise target identification. With Lightfinder 2.0 and Forensic WDR, it maintains clear imaging in low light and challenging contrast environments, while built-in OptimizedIR enables effective night surveillance without external lighting. The camera also includes Autotracking 2, electronic image stabilization, and a deep learning processing unit for AI-based object detection such as people and vehicles. Its rugged IP66/IP67 and IK10-rated housing ensures reliable operation in harsh outdoor conditions.
Key Features:
4MP (2688 × 1512) resolution
31x optical zoom (4.6–133 mm lens)
360° endless pan with tilt range -90° to +20°
Built-in OptimizedIR for night surveillance
Lightfinder 2.0 for excellent low-light color imaging
Forensic WDR for high-contrast scenes
Autotracking 2 for automatic object tracking
Electronic Image Stabilization (EIS)
Deep Learning Processing Unit (AI analytics support)
Axis Object Analytics (people & vehicle detection)
H.264 / H.265 with Zipstream compression
IP66/IP67 weather protection
IK10 impact resistance
PoE Class 6 support
microSD card slot for edge recording
