AXIS Q6086-E outdoor PTZ IP camera with 4MP, 34x optical zoom
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

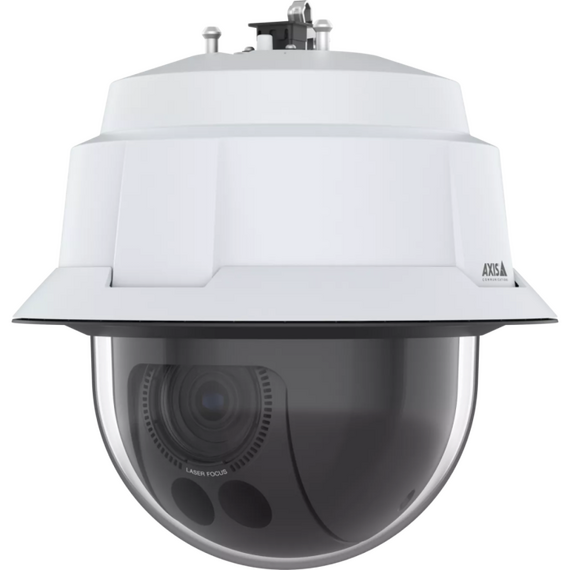

AXIS Q6086-E 4 MP Outdoor PTZ Network Camera
The AXIS Q6086-E is a high-performance outdoor PTZ network camera designed for demanding surveillance applications requiring excellent image quality, long-range monitoring and reliable operation in challenging environments.
Featuring a highly light-sensitive 1/2-inch sensor, 4 MP resolution at up to 60 fps, Lightfinder 2.0 and Forensic WDR, the Q6086-E delivers sharp, detailed video with accurate colours in difficult lighting conditions, including near darkness.
Its powerful 34x optical zoom and laser focus allow operators to capture fine details from considerable distances, while 360° endless pan and precise PTZ control provide extensive area coverage.
Powered by Axis ARTPEC-9 and a deep learning processing unit, the camera supports advanced edge-based analytics. AXIS Object Analytics can detect, classify, track and count people and vehicles, while Autotracking 2 can automatically follow selected objects.
Built for demanding outdoor environments, the Q6086-E offers IP66, IP67 and IK10 protection and operates in temperatures ranging from -50°C to 55°C. Axis Edge Vault also provides hardware-based cybersecurity features to help protect the camera and sensitive data.
Key Features:
- 4 MP resolution at up to 60 fps
- 34x optical zoom
- Lightfinder 2.0 and Forensic WDR
- Laser focus for fast and accurate focusing
- 360° endless pan
- AI-powered analytics with ARTPEC-9
- AXIS Object Analytics
- Autotracking 2
- H.264, H.265 and AV1 video support
- Axis Zipstream technology
- IP66/IP67 and IK10 protection
- Wide operating temperature range of -50°C to 55°C
- Axis Edge Vault cybersecurity
- Designed for large-area and critical surveillance applications
