AXIS TQ1602-E Conduit Back Box (02421-001) - Outdoor Weatherproof Back Box for Bullet Cameras
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)
AXIS TQ1602-E Conduit Back Box (02421-001) – Outdoor Weatherproof Back Box for Bullet Cameras.

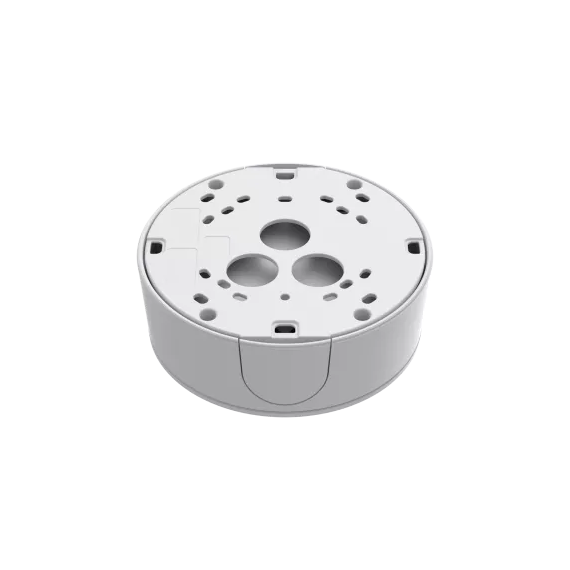

The AXIS TQ1602-E is specifically engineered to simplify outdoor camera installations by allowing both the camera and connectivity devices to be mounted at the same location without requiring a separate cabinet. Its sealed compartment can securely house accessories such as network cable couplers or IP-over-Coax adapters while protecting them from water, dust, and vandalism.
Constructed from durable aluminium and designed for use with various AXIS bullet camera series, it delivers a clean, professional installation for perimeter, industrial, and critical infrastructure surveillance applications.
Key Features:
Outdoor-ready conduit back box for AXIS bullet cameras
IP66/IP67-rated sealed compartment for connectivity devices
IK10+ impact resistance against vandalism

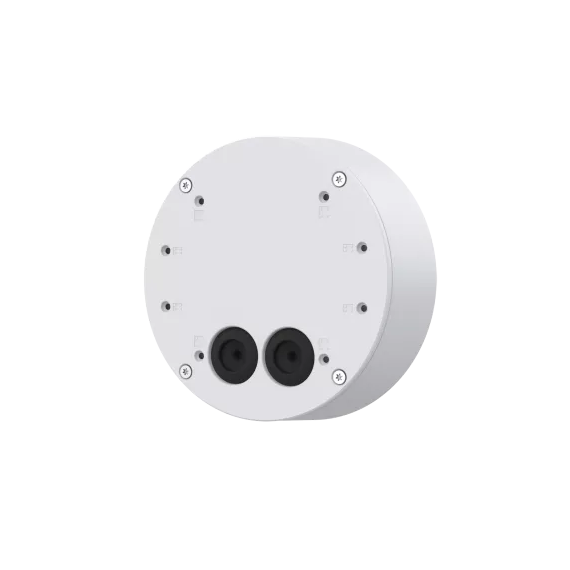

3/4" NPS / M25 conduit interface from side and rear
Durable aluminum construction
Stores network couplers, PoE accessories, or IP-over-Coax adapters
Enables clean cable management and protected connections

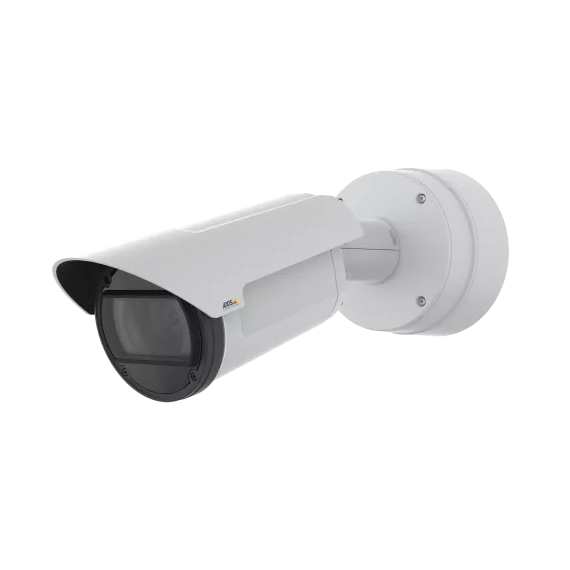

Compatible with selected AXIS P14, Q17, Q19, and newer bullet camera series
Suitable for wall, pole, corner, and junction box installations
Includes gaskets, mounting hardware, and installation accessories
PVC-free design
