AXIS S3008 Mk II 4TB Recorder (02765-003) – 8-Channel Network Video Recorder with Integrated PoE Switch
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

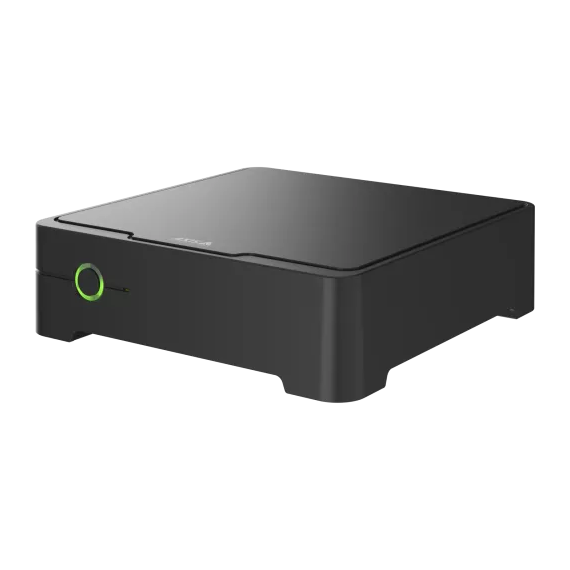

AXIS S3008 Mk II 4TB Recorder (02765-003) – 8-Channel Network Video Recorder with Integrated PoE Switch
The AXIS S3008 Mk II 4TB Recorder (02765-003) is a professional all-in-one network video recorder designed for small to medium surveillance systems. It features an integrated 8-port PoE switch that powers up to 8 IP cameras directly, eliminating the need for a separate network switch. With a built-in 4TB surveillance-grade hard drive, it provides reliable local video storage and smooth recording performance. The unit supports AXIS Camera Station Edge and AXIS Camera Station Pro, offering flexible deployment options with secure remote access, encrypted recordings, and easy system management. Its compact design makes it ideal for retail stores, offices, schools, and distributed security installations.
Key Features
8-channel network video recording support
Integrated 8-port PoE switch for direct camera connection
4TB surveillance-grade hard drive preinstalled
Supports AXIS Camera Station Edge and AXIS Camera Station Pro
Gigabit Ethernet uplink for stable video streaming
Secure encrypted recording storage
USB port for video export and backups
Easy plug-and-play installation with AXIS cameras
Remote access via AXIS Secure Remote Access
5-year hardware warranty
