AXIS M1075-L 2MP Box Camera (02350-001) – Indoor Network Box Camera with IR, WDR, Two-Way Audio
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

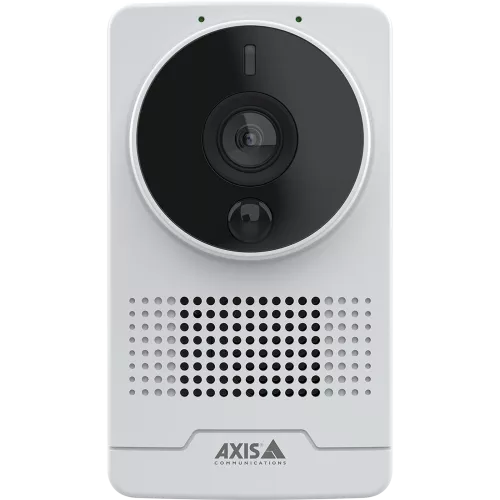

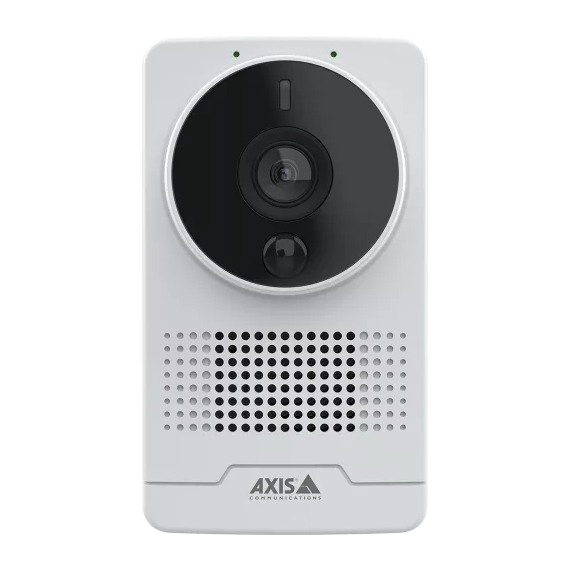

AXIS M1075-L 2MP Box Camera (02350-001) – Indoor Network Box Camera with IR, WDR, Two-Way Audio
The AXIS M1075-L Box Camera is built for small retail, office, and indoor security applications where high-quality video and flexible installation are required. It captures 1080p (2MP) resolution at up to 30 fps using a 1/2.9" CMOS sensor and a 3.16 mm fixed lens providing approximately a 103° horizontal field of view.
It includes built-in IR illumination for night surveillance up to around 59 ft, ensuring clear visibility in low-light environments. The camera also supports Lightfinder technology, Forensic WDR, and Axis Zipstream compression for optimised image quality and reduced bandwidth usage. With two-way audio (built-in mic and speaker) and microSD edge storage, it is well-suited for interactive monitoring and small-scale professional surveillance setups.
Key Features:
2MP (1920 × 1080) Full HD resolution
Up to 30 fps video streaming
3.16 mm fixed lens with ~103° horizontal FOV
Built-in IR illumination (OptimizedIR up to ~59 ft)
Lightfinder for improved low-light color imaging
Forensic WDR for challenging lighting conditions
Two-way audio (built-in microphone and speaker)
Axis Zipstream H.264/H.265 compression
Edge storage via microSD card slot
PoE-powered for simple installation
ONVIF-compatible for VMS integration
Indoor box camera design for flexible mounting
