AXIS T8508 PoE+ Network Switch (01191-003) – 8-Port Managed Gigabit PoE+ Switch with 130W PoE Budget
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)
AXIS T8508 PoE+ Network Switch (01191-003) – 8-Port Managed Gigabit PoE+ Switch with 130W PoE Budget.

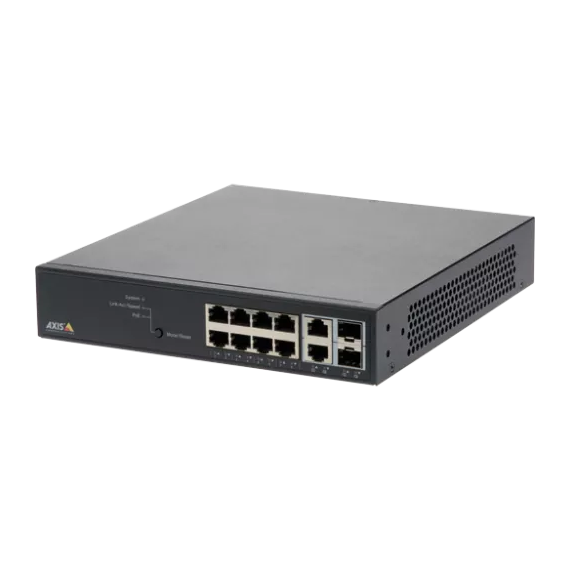

The AXIS T8508 PoE+ Network Switch is optimized for professional video surveillance deployments, making it an ideal companion for AXIS cameras, encoders, and recorders. It provides 8 Gigabit Ethernet PoE+ ports capable of delivering up to 30W per port, with a 130W total power budget for powering cameras and edge devices.
The switch includes 2 combo RJ45/SFP uplink ports for flexible network expansion and features an intuitive graphical web interface that displays device topology, status, and diagnostics. Its fanless metal design ensures silent operation, making it suitable for offices, schools, retail stores, and other indoor environments. Advanced features such as VLAN, QoS, DHCP server, HTTPS security, and AXIS Device Manager support simplify deployment and management.
Key Features:
8 × Gigabit Ethernet PoE+ ports
Up to 30W PoE+ output per port
130W total PoE power budget
2 × Combo RJ45/SFP uplink ports
Managed Layer 2 switch
Fanless design for silent operation
Built-in DHCP server
VLAN, QoS, STP, RSTP, and MSTP support
HTTPS encryption and IEEE 802.1X security
Graphical topology interface for device management
Cable diagnostics and network monitoring
Compatible with AXIS Device Manager
Compact metal housing
Optimized for surveillance installations
5-year AXIS Warranty
