AXIS T91B47 Pole Mount (01165-001) – Heavy-Duty Pole Mount Bracket for 50–150 mm Poles with Stainless Steel Straps
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

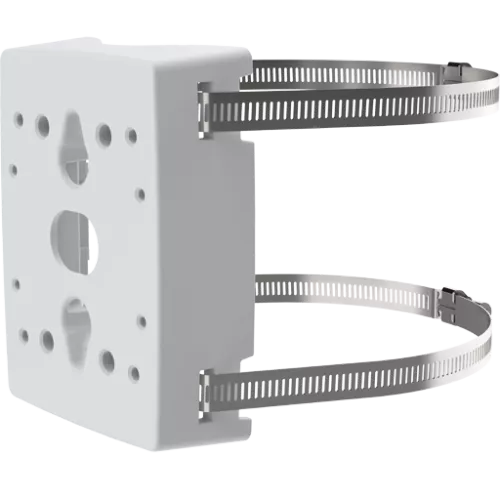

AXIS T91B47 Pole Mount (01165-001) – Heavy-Duty Pole Mount Bracket for 50–150 mm Poles with Stainless Steel Straps.
The AXIS T91B47 Pole Mount is engineered for professional surveillance installations where cameras must be securely fixed to poles or beams without structural modification. It accommodates pole diameters of 50–150 mm (2–6 inches) and uses SS316L stainless steel straps with a TX30 tightening system for strong and stable attachment.
The mount is designed for both indoor and outdoor environments and supports AXIS pendant kits and compatible fixed dome or bullet cameras. It also includes protected cable routing options through conduit entries and a rear gasket to reduce water and insect ingress, making it suitable for harsh environmental conditions such as industrial sites, parking areas, and perimeter security deployments.
Key Features:
Supports pole diameters 50–150 mm (2–6 inches)
Heavy-duty marine-grade stainless steel (SS316L) straps
Secure TX30 screw tightening mechanism
Compatible with AXIS pendant camera mounting ecosystem
Designed for indoor and outdoor installations
Integrated cable routing for protected wiring
Rear gasket reduces water and insect ingress
High durability for industrial and perimeter surveillance
Compatible with a wide range of AXIS cameras
Stable mounting for fixed dome and bullet cameras
