AXIS Surveillance Card 128GB (01491-001) - High-Endurance microSDXC Edge Storage Card for 24/7 IP Camera Recording
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

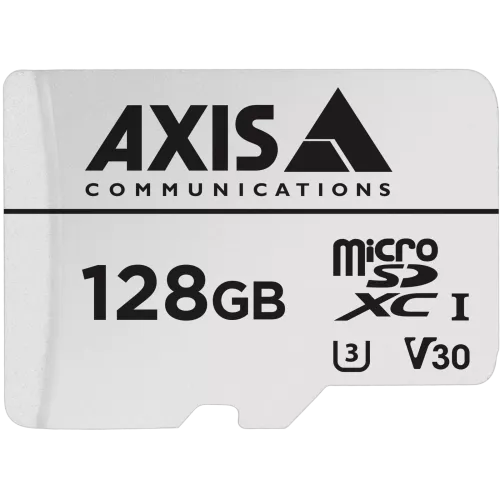

AXIS Surveillance Card 128GB (01491-001) – High-Endurance microSDXC Edge Storage Card for 24/7 IP Camera Recording.
The AXIS Surveillance Card 128GB (01491-001) is a professional-grade memory card engineered specifically for video surveillance environments. It allows AXIS cameras to record video directly onto the camera (edge storage), reducing dependence on NVRs or servers while also providing backup recording during network interruptions. The card supports high endurance write cycles, optimised for continuous recording and overwriting typical in CCTV systems.
It also enables health monitoring features when used with compatible AXIS cameras, allowing system administrators to track card wear and storage status. Designed for reliability, it performs under harsh conditions and supports Full HD and 4K recording depending on camera capability.
Key Features:
128GB high-endurance microSDXC surveillance card
Designed specifically for AXIS network cameras
Enables edge recording (standalone storage inside the camera)
Supports failover recording when the network is down
Optimised for continuous 24/7 read/write cycles
Health monitoring support (wear level tracking in AXIS systems)
Includes SD adapter for flexible usage
Resistant to temperature, shock, water, and X-ray exposure
Supports Full HD and 4K video recording (camera dependent)
Ideal for distributed surveillance deployments
