AXIS TP3201 Recessed Mount (01757-001) – In-Ceiling Mount for Discreet Installation of Fixed Dome Cameras
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

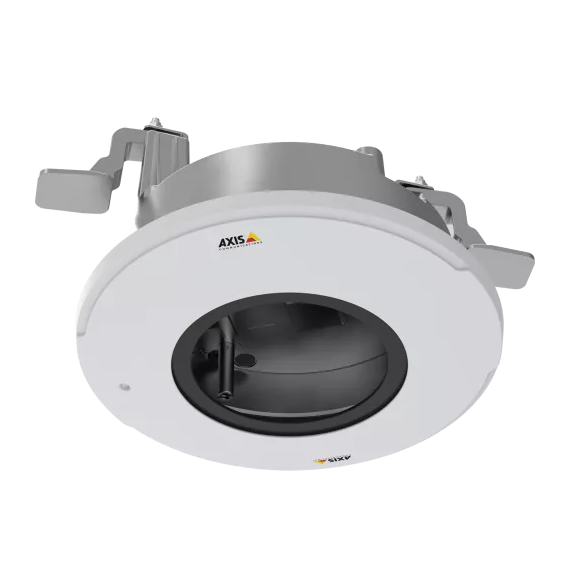

AXIS TP3201 Recessed Mount (01757-001) – In-Ceiling Mount for Discreet Installation of Fixed Dome Cameras.
The AXIS TP3201 Recessed Mount is used for indoor surveillance installations where a low-profile and hidden camera setup is required. It is designed for drop ceiling environments, allowing compatible AXIS dome cameras to sit inside the ceiling structure with only the dome visible externally.
The mount includes ½" (M20) and ¾" (M25) conduit entries for protected cable routing and supports installation in plenum (air-handling) spaces, making it suitable for commercial buildings.
It also supports optional internal microphone integration depending on the camera model, and is widely used in offices, retail stores, airports, and corporate environments where aesthetics and cable management are important.
Key Features:
In-ceiling recessed mount for AXIS fixed dome cameras
Provides flush and discreet installation
Designed for drop ceiling (false ceiling) systems
Supports ½" (M20) and ¾" (M25) conduit routing
Suitable for plenum / air-handling spaces
Supports optional internal microphone (camera dependent)
Compatible with selected AXIS M32, P32, P33, and Q35 series cameras
Metal alloy construction for durability
Easy installation and secure fit
Ideal for commercial indoor surveillance setups
