AXIS TP3101 Pendant Wall Mount (01783-001) – Indoor Pendant Wall/Ceiling Mount with Concealed Cable Management for Dome Cameras
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

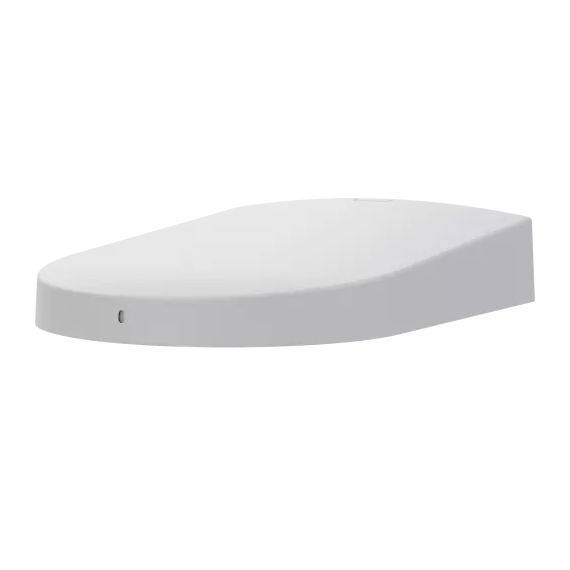

AXIS TP3101 Pendant Wall Mount (01783-001) – Indoor Pendant Wall/Ceiling Mount with Concealed Cable Management for Dome Cameras.
The AXIS TP3101 Pendant Wall Mount is a professional mounting solution that allows AXIS dome cameras to be installed in a neat, pendant-style configuration without requiring separate hanging kits. It features a concealed design that hides mounting screws and cables, giving a clean architectural finish suitable for modern indoor environments.
The mount includes an internal compartment for storing accessories such as microphones, connectivity modules, or I/O devices, keeping installations organized and protected.
It supports flexible positioning on walls, ceilings, and even countertops, making it ideal for retail stores, entrances, and controlled surveillance environments where both appearance and functionality matter.
Key Features:
Pendant-style wall/ceiling mount for AXIS dome cameras
Clean, contemporary concealed design
Hidden cabling and mounting screws for neat installation
Built-in compartment for microphone and connectivity devices
Supports wall, ceiling, and countertop mounting
Flexible camera positioning (downward or side viewing)
Compatible with selected AXIS M32 and P32 series cameras
Ideal for retail analytics and entrance surveillance setups
Indoor installation use only
Durable construction for professional deployments
