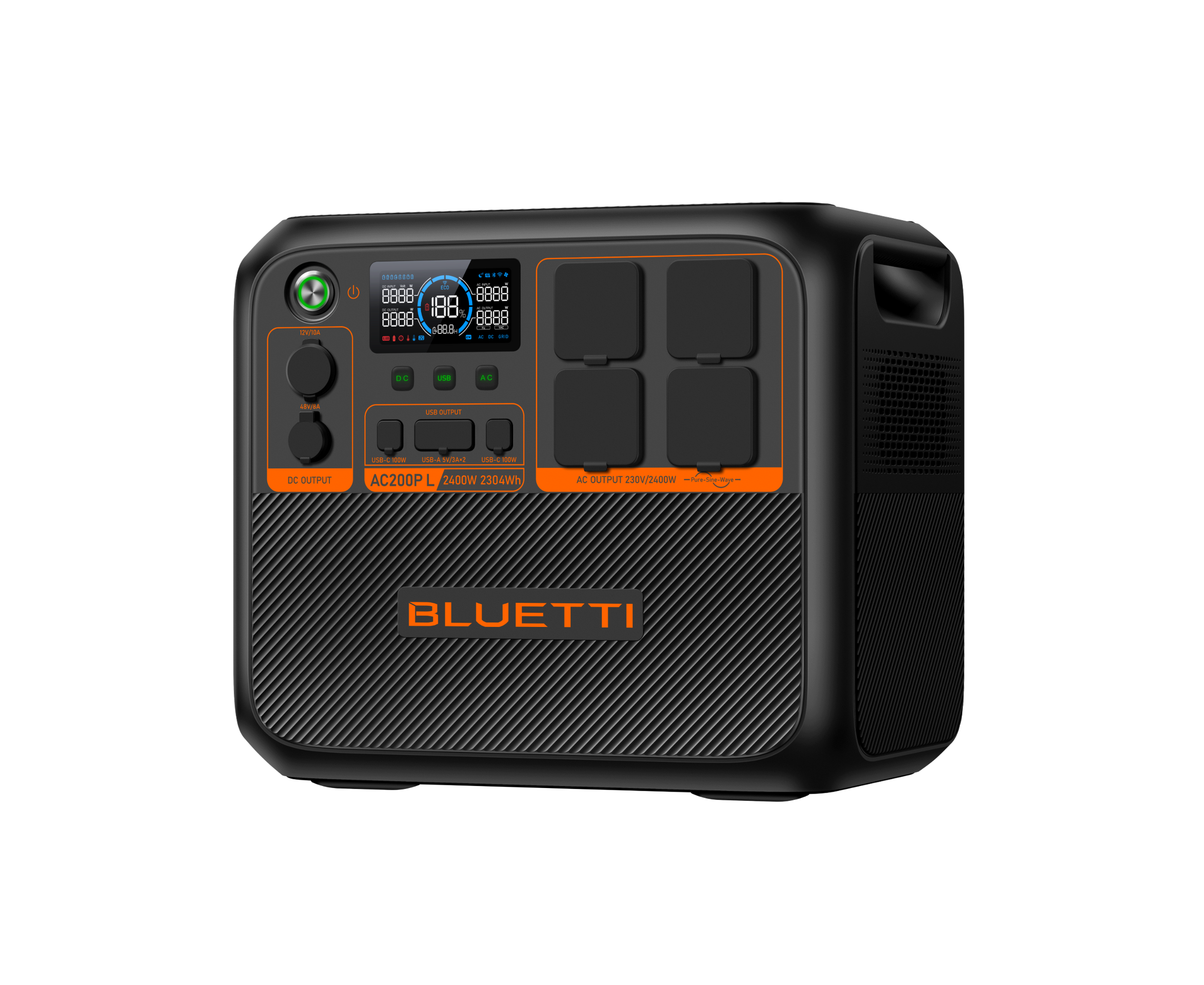

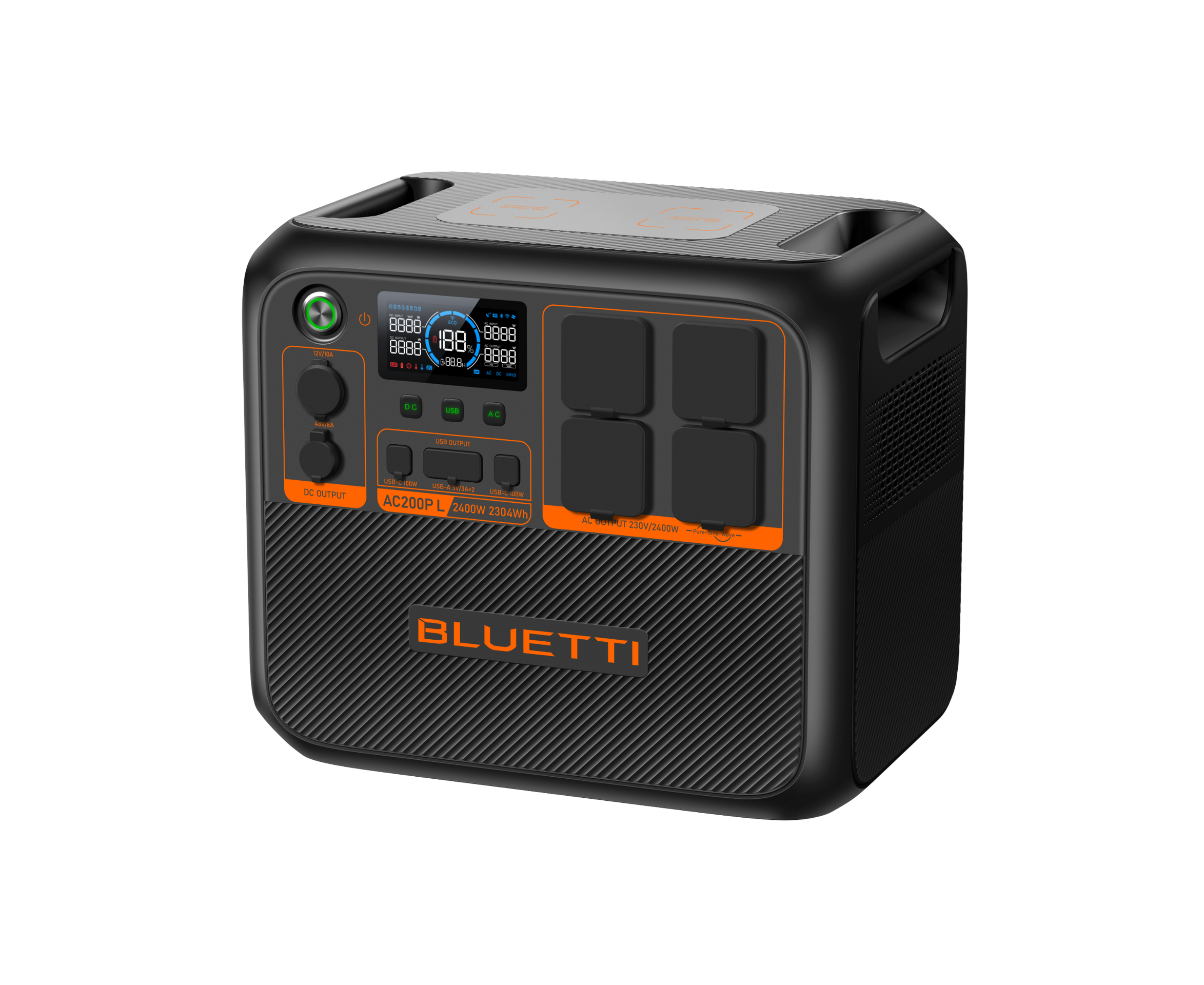

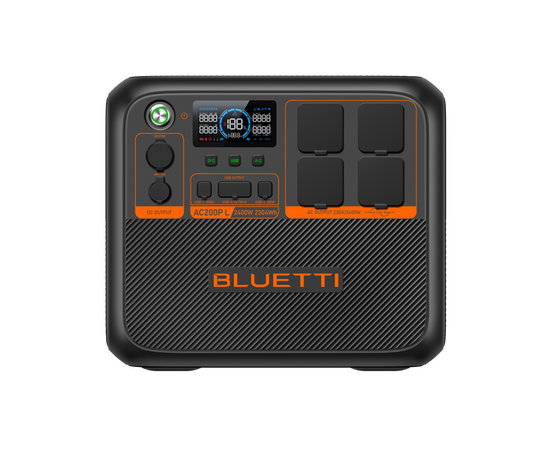

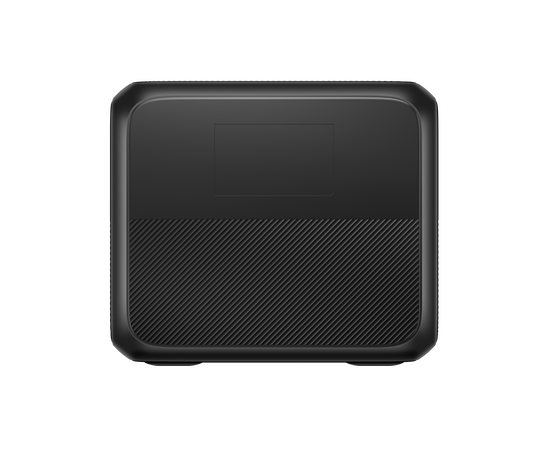

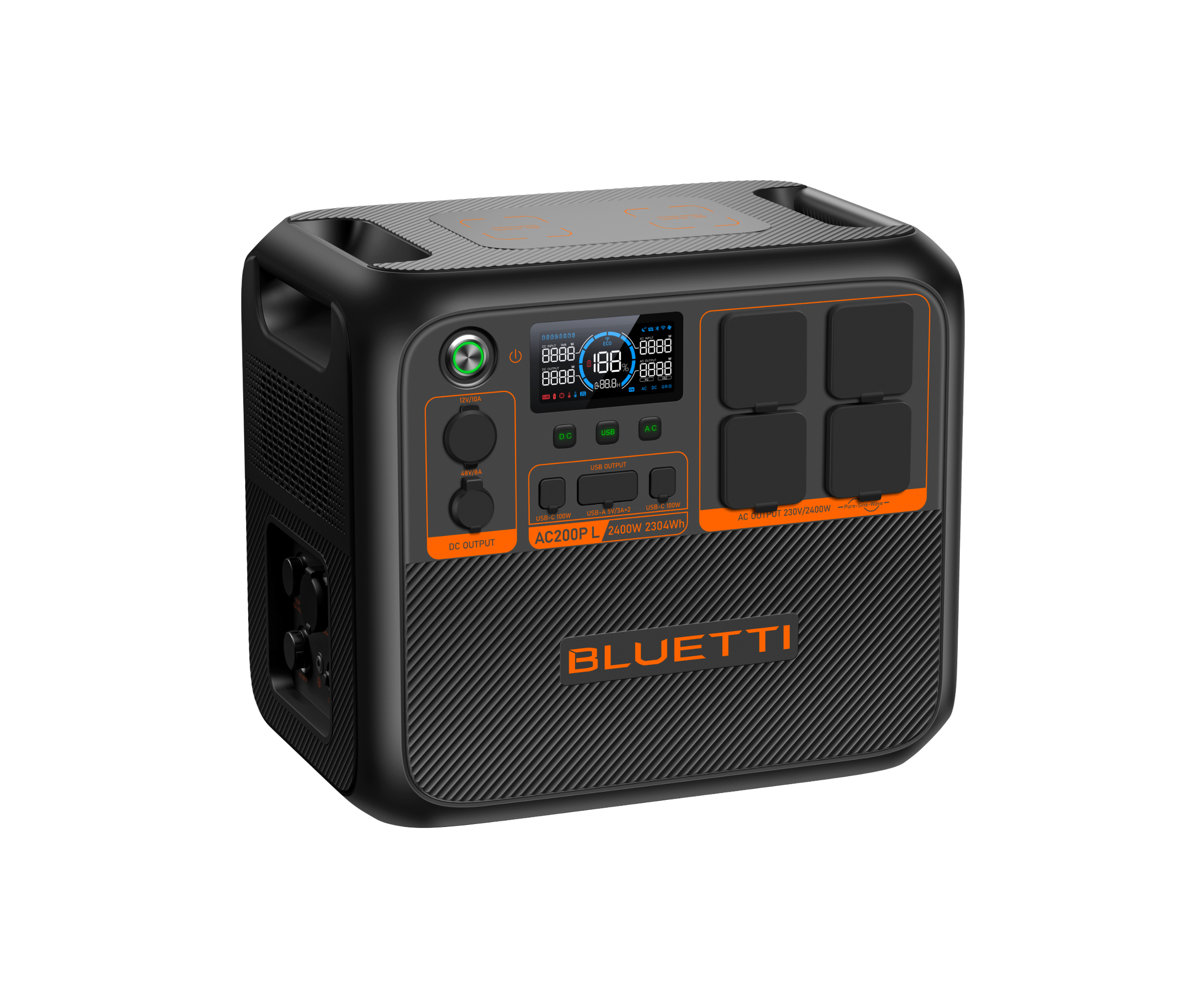

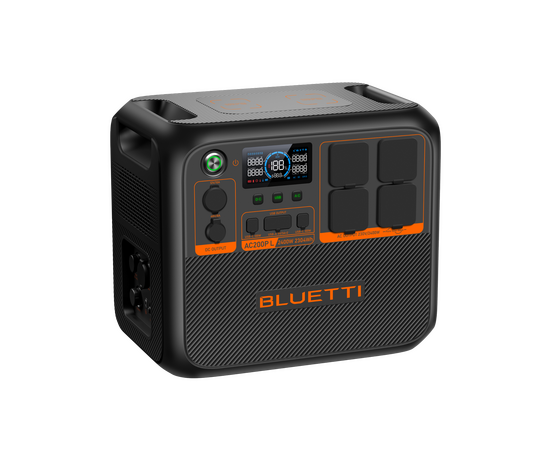

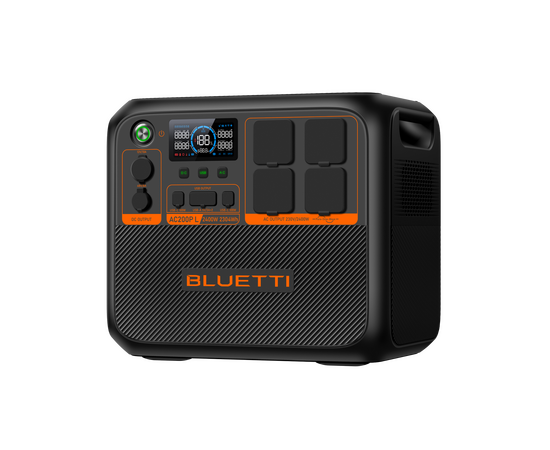

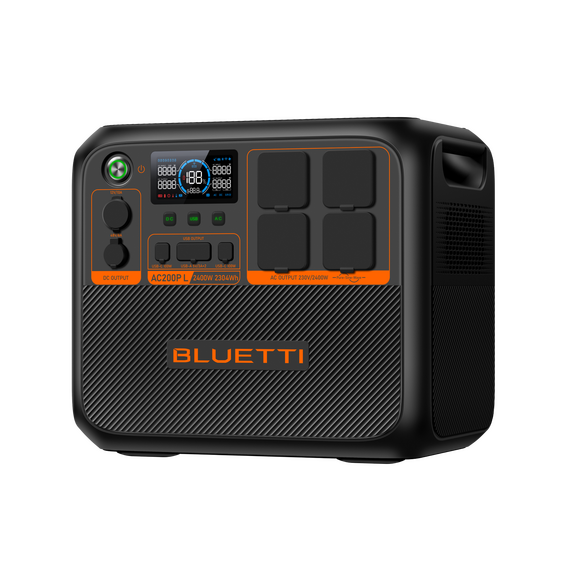

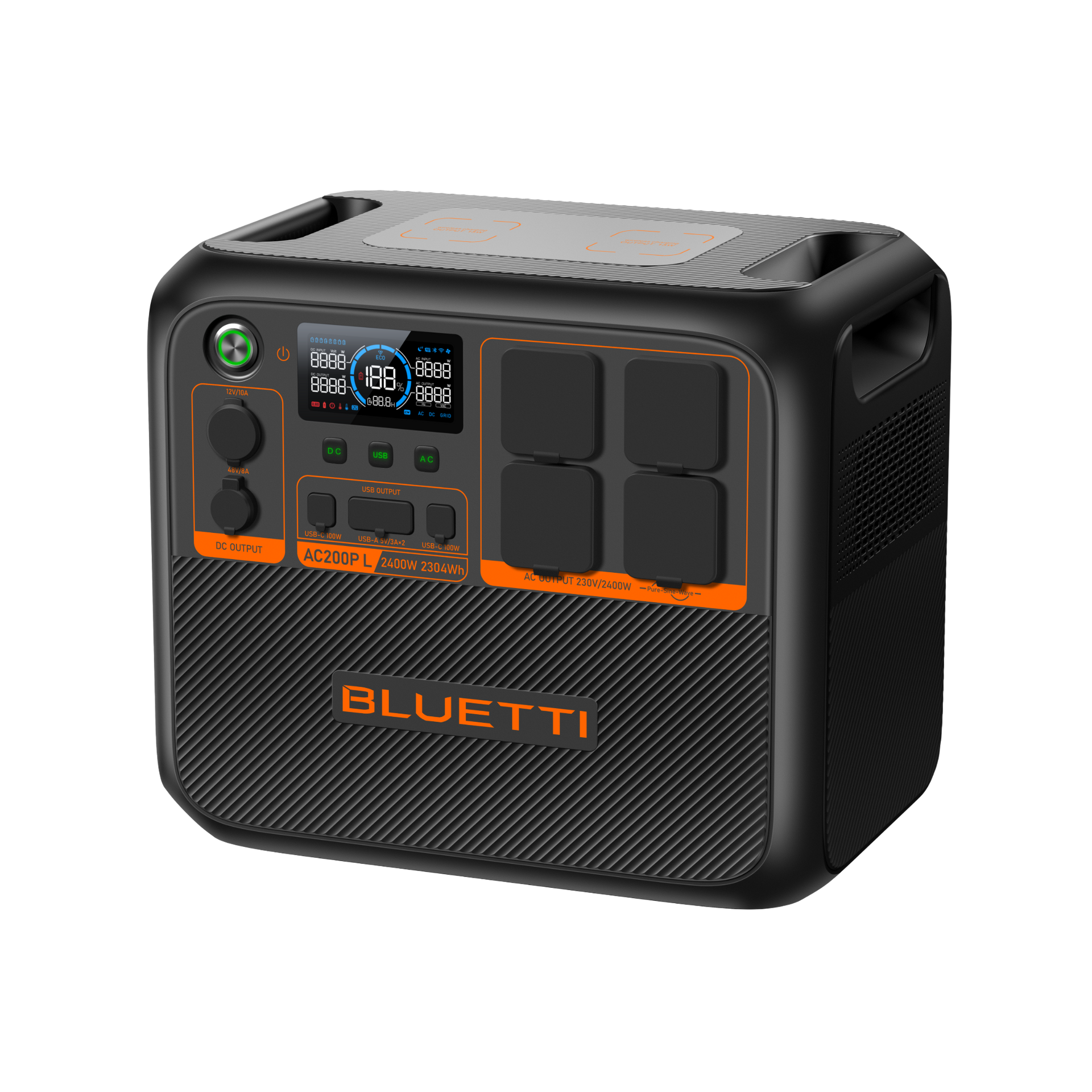

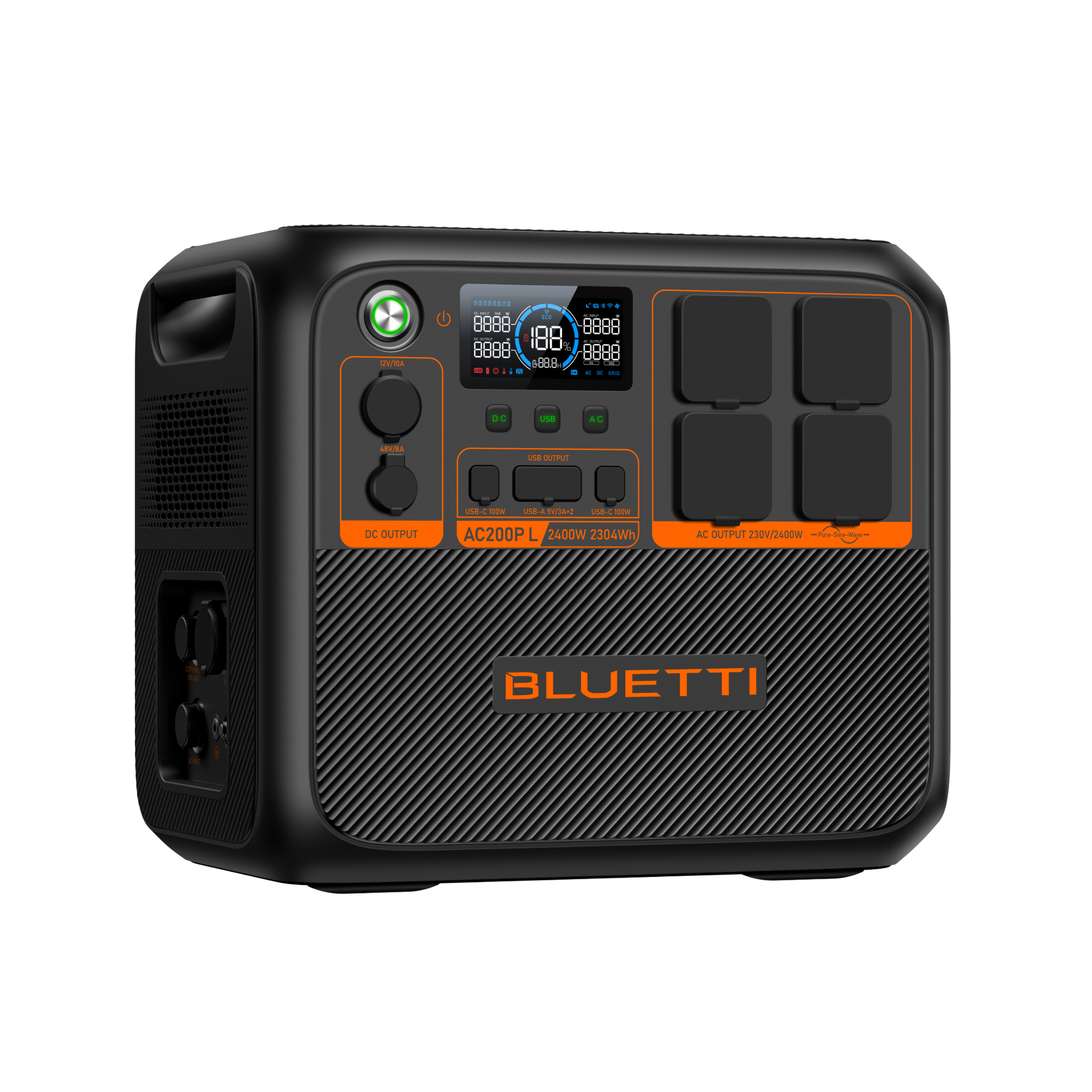

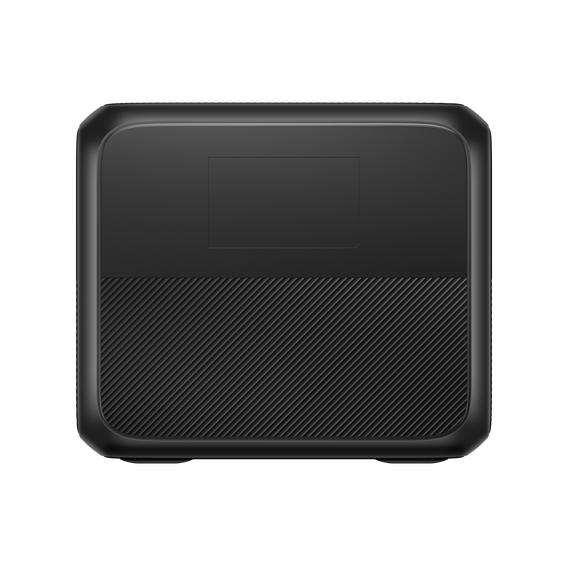

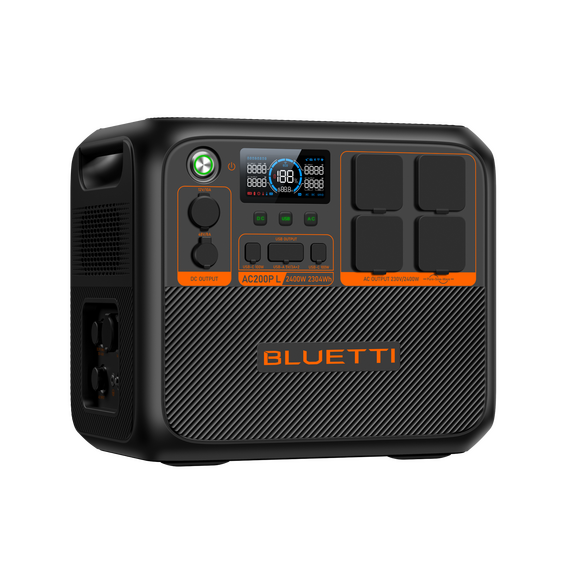

BLUETTI AC200P L Expandable Power Station | 2,400W 2,304Wh
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
Ready for 99% of Devices
The AC200P L delivers 2,400W rated power, covering most loads in your RV or at home. Activate the Power Lifting Mode via the BLUETTI App, and you can kick it up a notch and run power-hungry heating devices up to 3,600W.
Your Plug-and-play RV Power Solution
With the D40 Voltage Regulator*, a DC-DC battery charger exclusively designed for RV, you can directly charge the 12V house batteries in your RV via AC200P L, solar panels, or starter batteries. Thus, the essentials in your mobile home, such as the mini fridge, air conditioner, and tire pump, will be backed by sufficient power source.
*Sold separately.
Charge Your RV Anytime, Anywhere
With a TT-30 port, you can power your RV directly from the AC200P L, making it a dependable source of energy on wheels. You can charge your laptop, cellphone, and camera while you savor your meal in style.
Up to 8kWh Expandable Capacity
AC200P L is perfectly compatible with B210P, B230, and B300 expansion batteries. So you can customize the capacity to an incredible 8,448Wh. Making the full potential of limitless power has never been easier.
Fastest Charging Among 2kWh Power Station
With accelerated 2,400W Turbo Charging, replenish to 80% capacity in just 1 Hour, and 1.5 hours for a full charge! AC200P L sets a new standard for most competitors in the market. Get ready to power up swiftly for uninterrupted use during your adventures.
Charge Your Way, Power Your Way
Flexible to get it charged via AC outlets, solar panels, car charger, generator, or lead-acid batteries, you can stay powered and explore the unknown with confidence even far off the grid.
