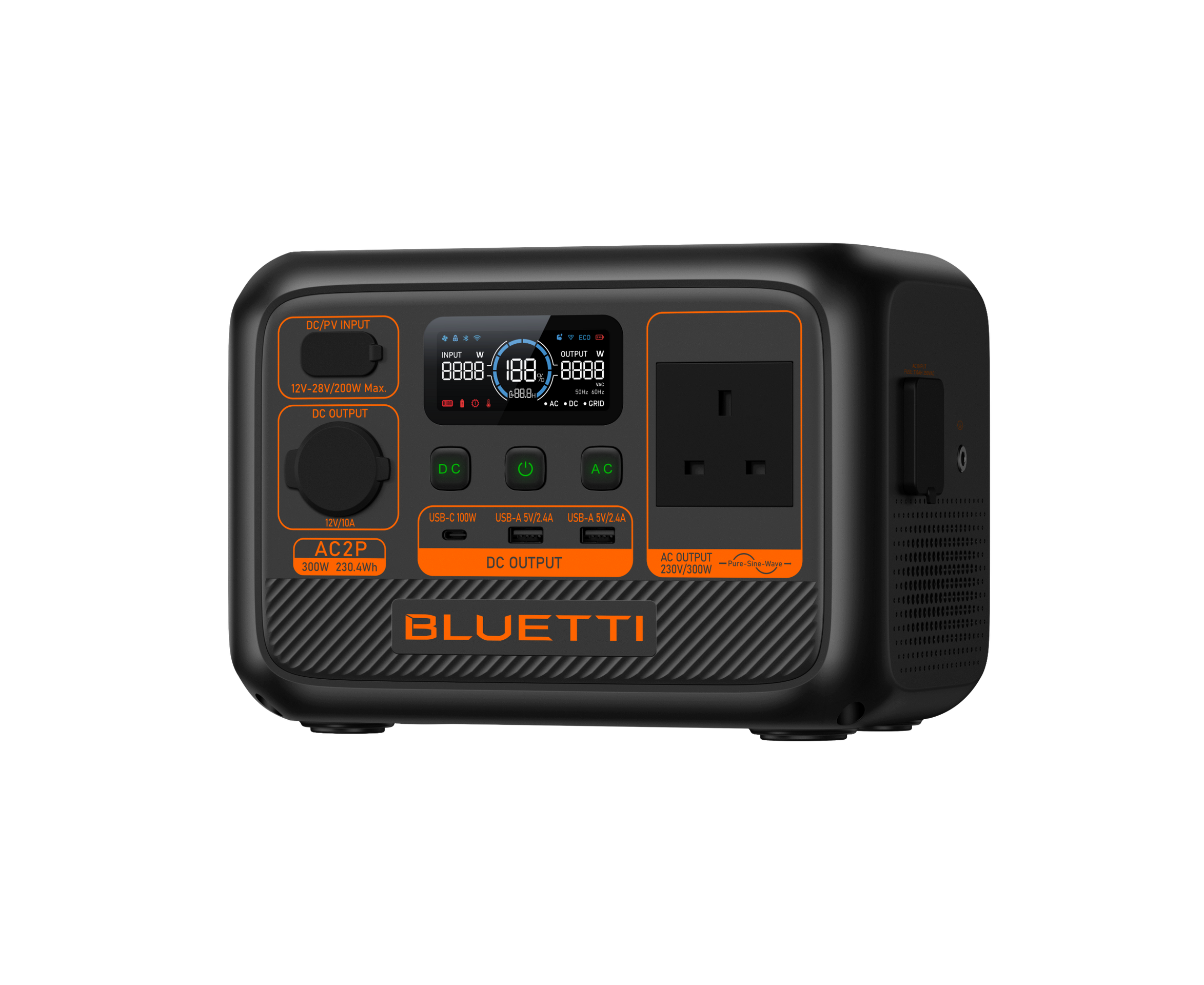

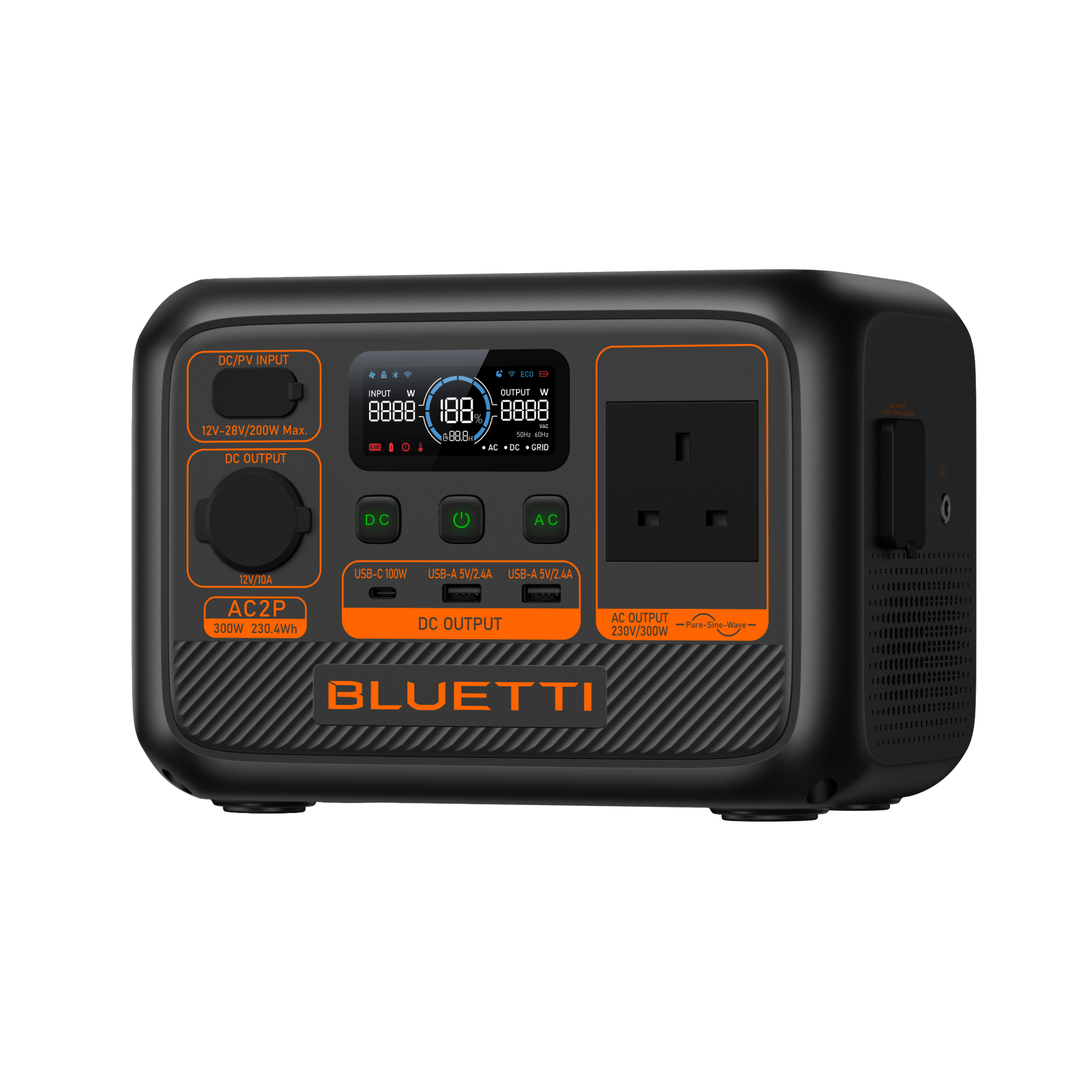

BLUETTI AC2P Portable Power Station | 300W 230Wh
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)

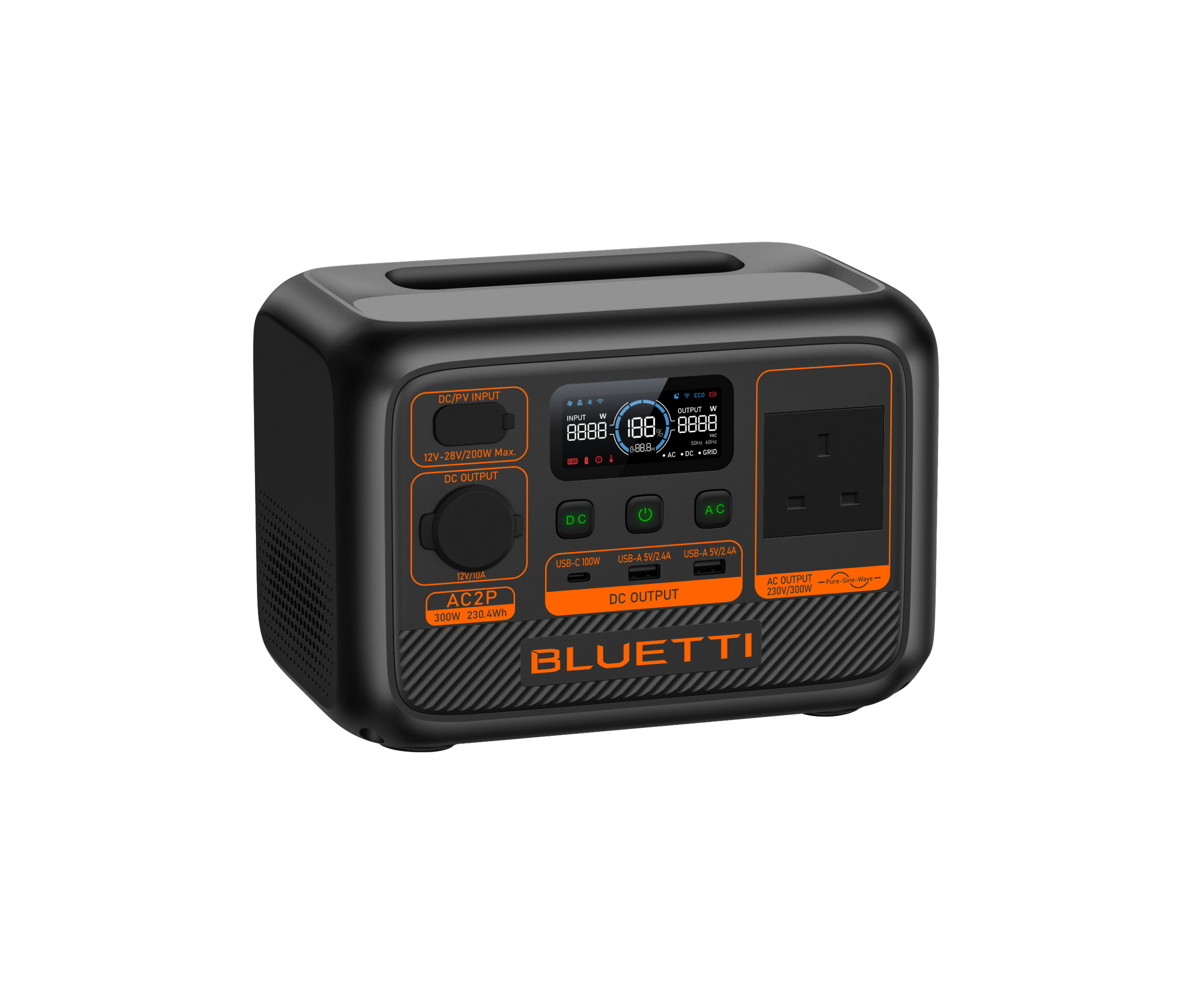

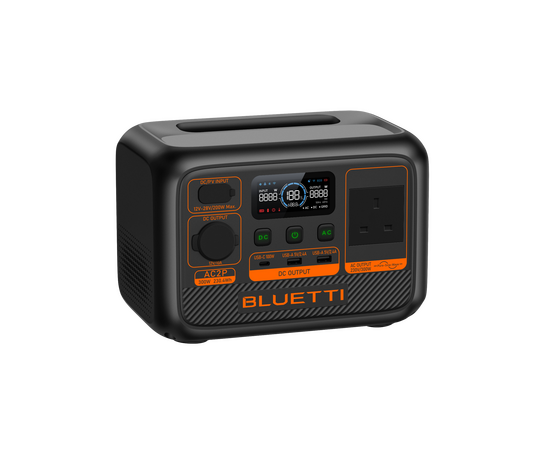

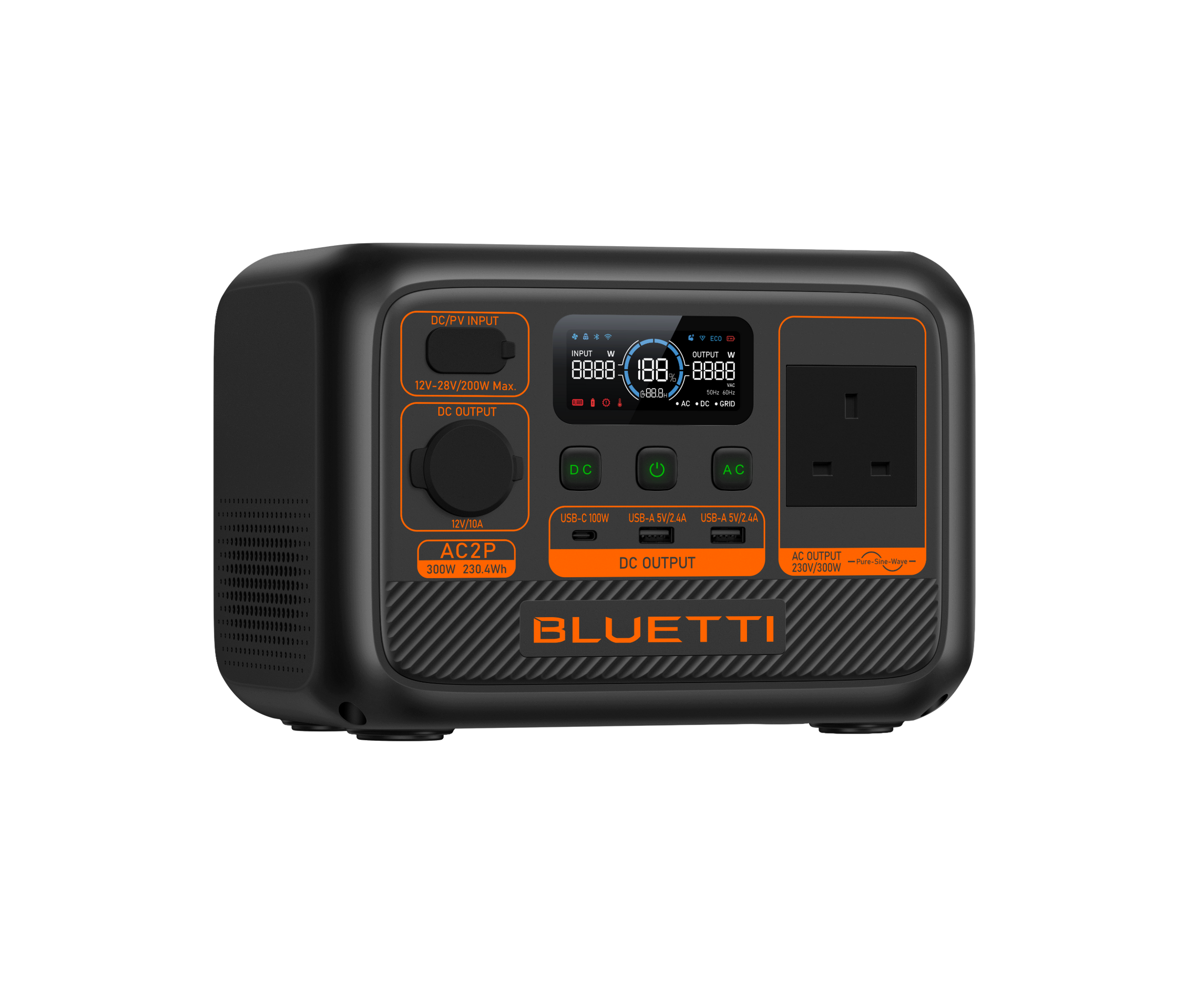

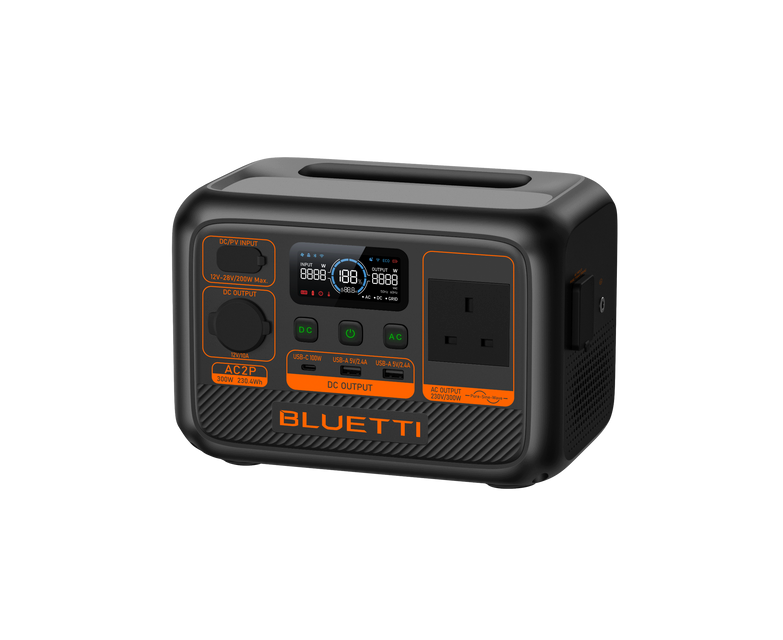

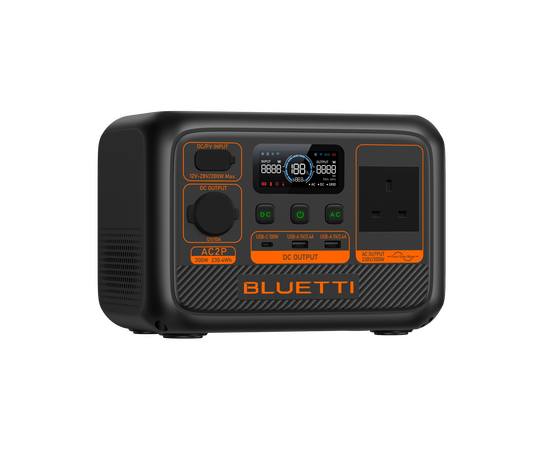

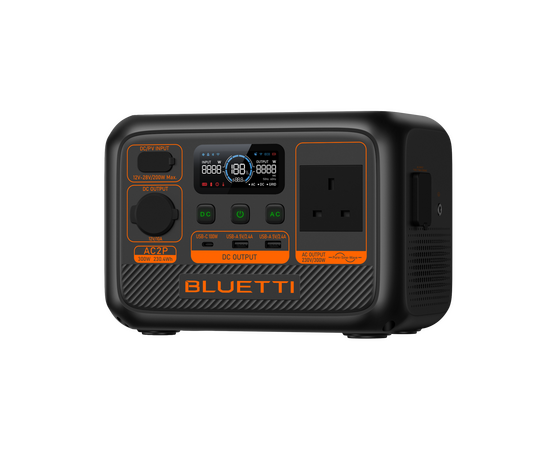

Lighter, Faster, And More Freedom
BLUETTI AC2P is an extraordinarily lightweight and user-friendly energy storage solution. With a 230Wh capacity and 300W power output, it can cover most power needs of essential devices. Charging to 80% capacity in just 45 minutes, making it the perfect companion for outdoor activities, emergency relief, RV travel, and more.
Super Fast Charging, A Great Step Forward
It takes only 45 minutes to reach 80% capacity using AC charging, meaning that the AC2P is ready to hit the road by the time of your packing. Also, get it charged with solar panels where the sun shines; a full charge only takes 1.5 hours, ensuring plenty of power within reach all along the way.
Flexible to Charge
Efficiently charge it as you prefer - via AC outlet, solar panels, generator, or even a car charger while you’re driving, no need to worry about the battery running out when miles away from the grid.
Reliable Power, Has Your Back.
Designed for 10 years* of everyday use, AC2P uses the LiFePO₄ battery to ensure optimal safety and a longer lifespan. With the intelligent BMS (Battery Management System), rest assured it can protect the power beast from potential risks.
*The data serves as a reference only, with the specifics subject to determination based on actual usage conditions and other influencing factors.

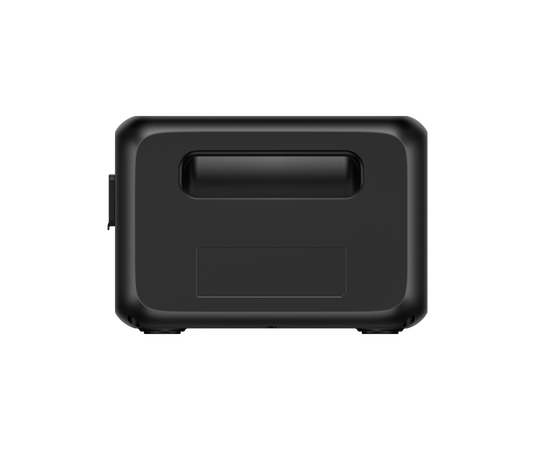

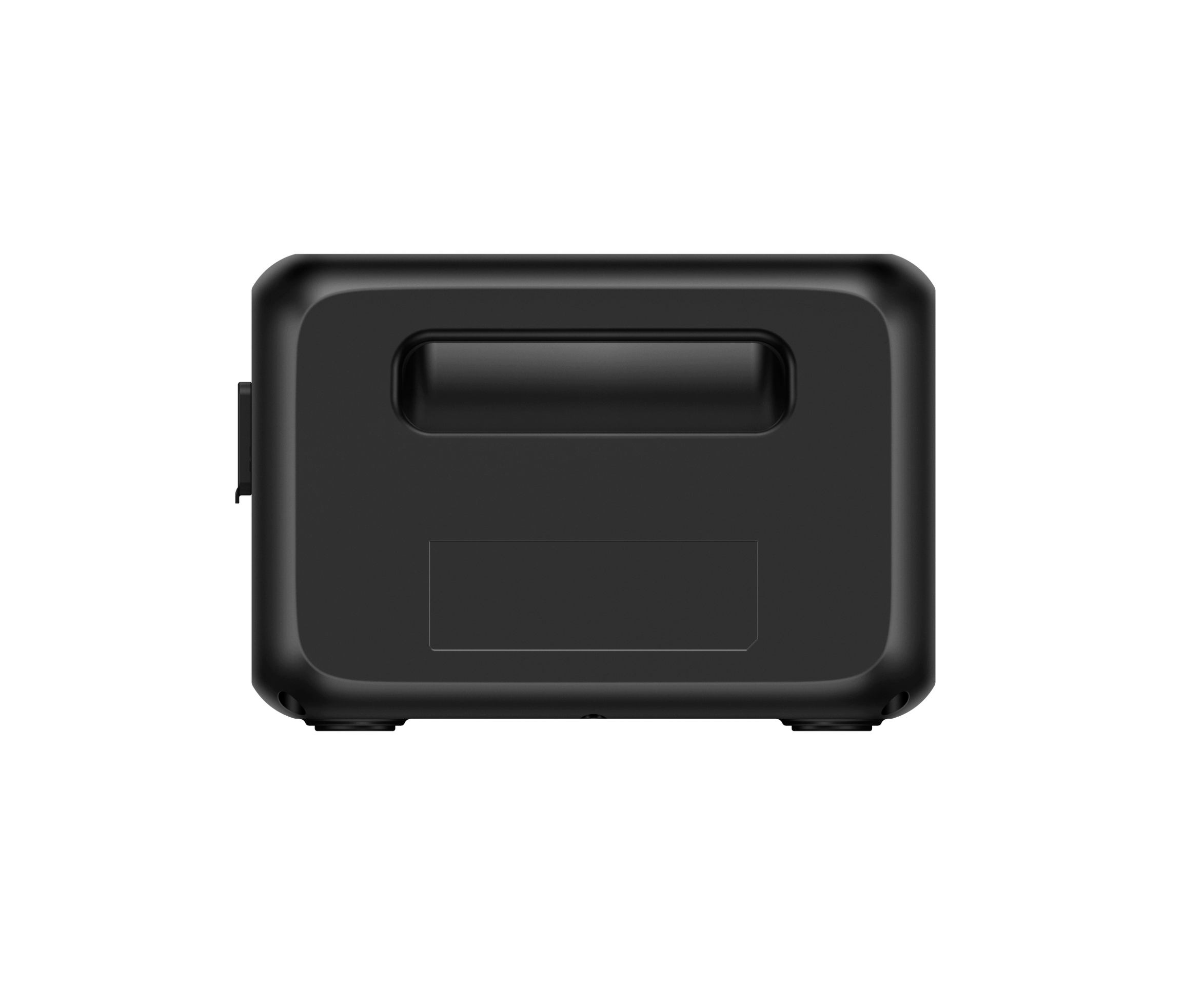

Hassle-free Carry with One Hand
The AC2P is ultra-lightweight at only 3.6kg/7.9 lbs, providing unparalleled mobility for your trip. It also features an ergonomic handheld design and an upgraded intelligent LCD screen, making it more accessible wherever you go.
Never Run Out of Power
Suitable for various occasions
