BLUETTI PV350 Solar Panel | 350W
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
Solar Power Supply

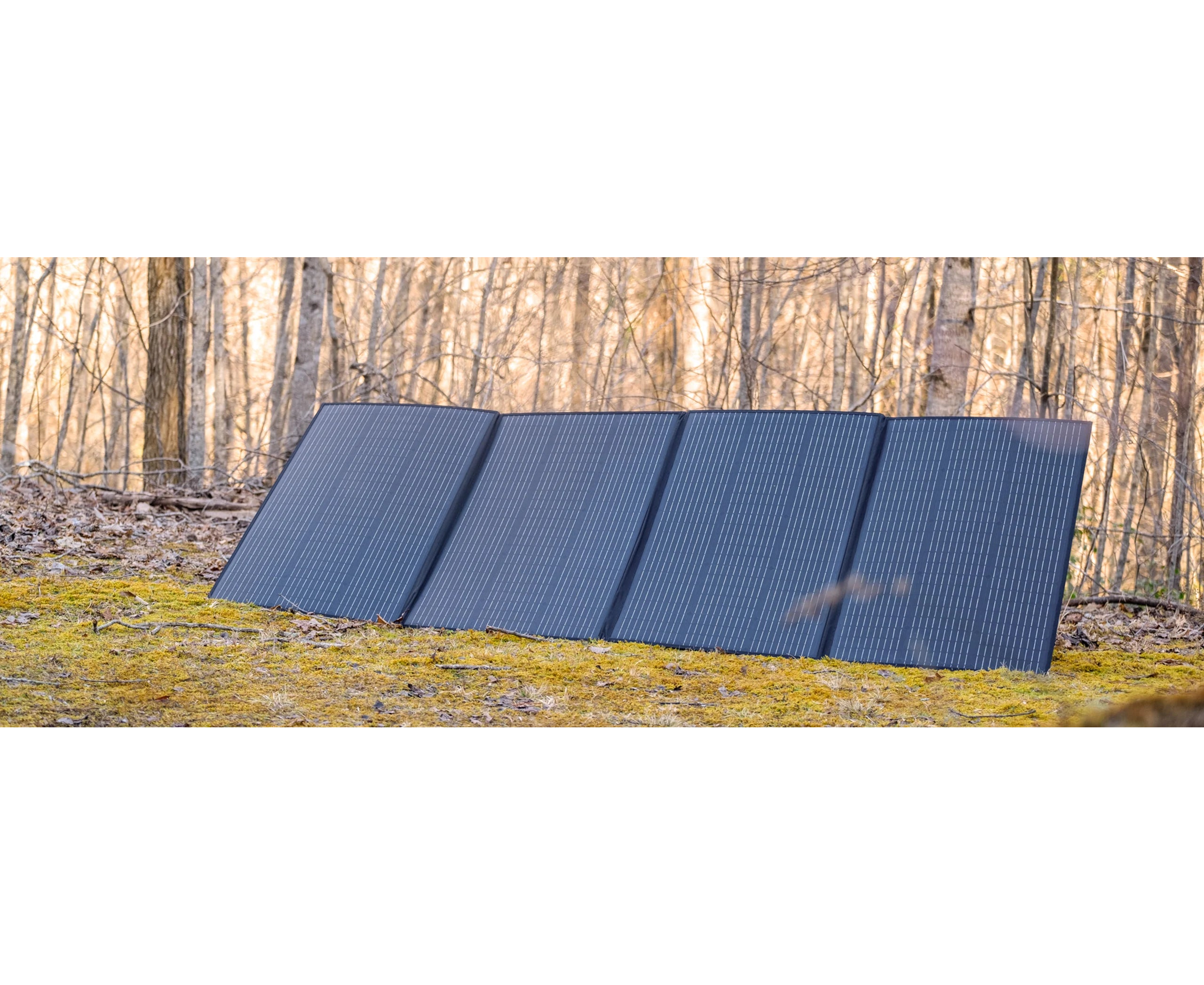

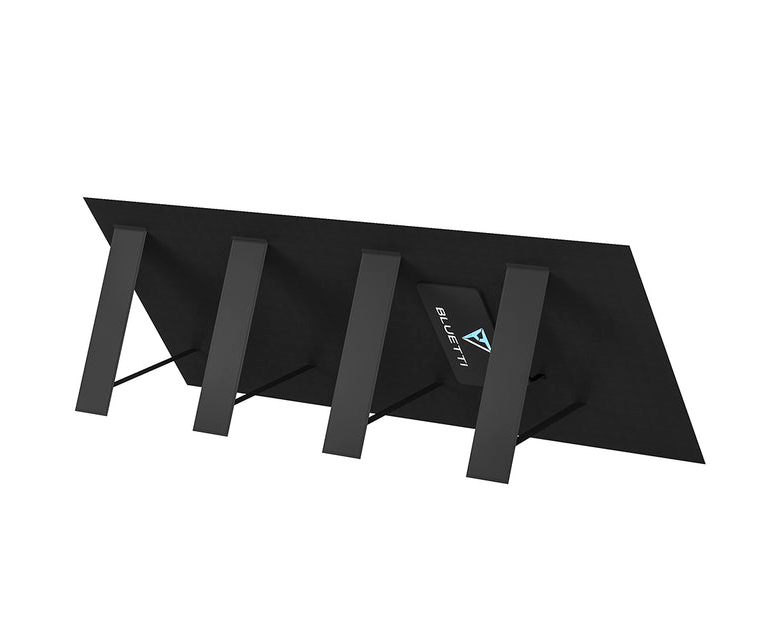

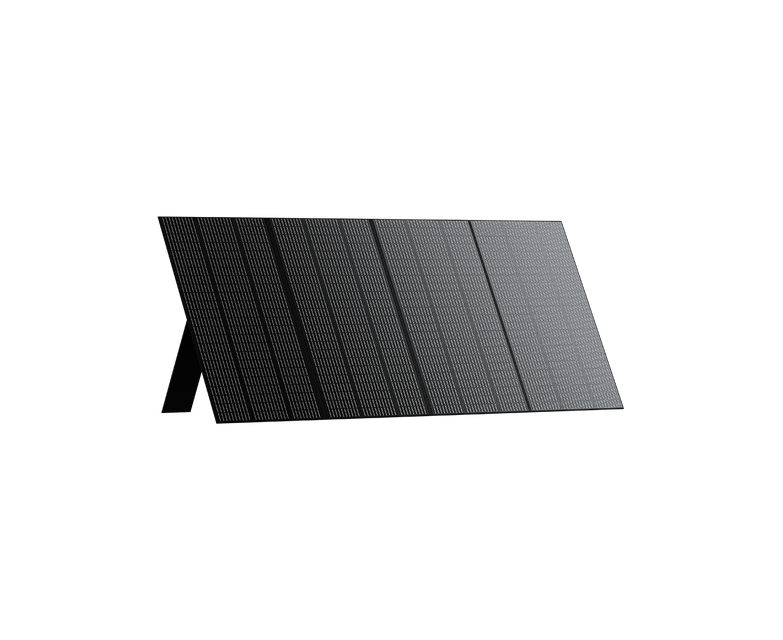

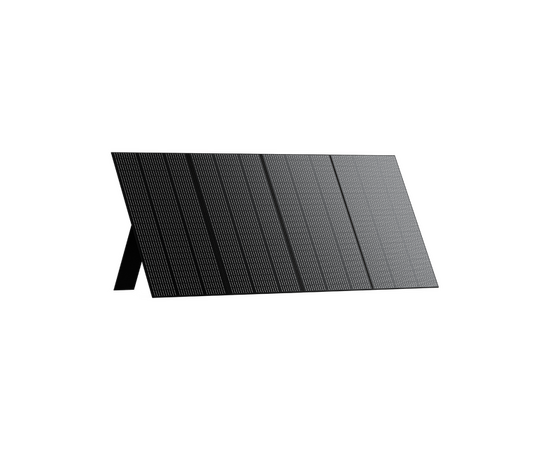

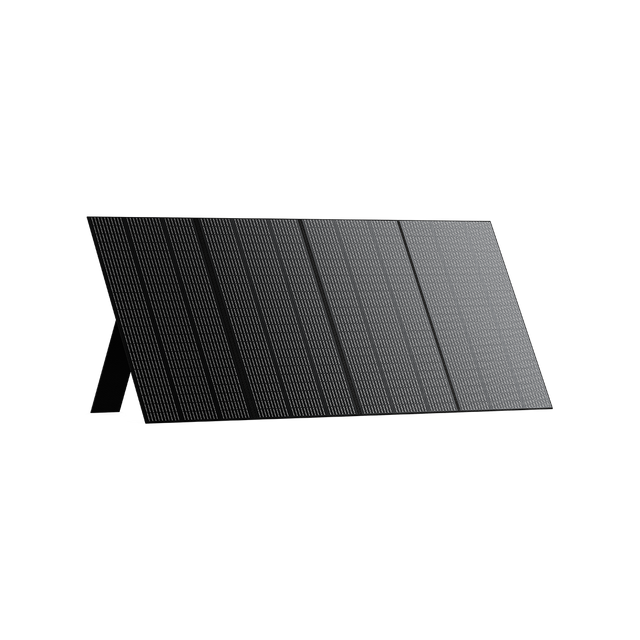

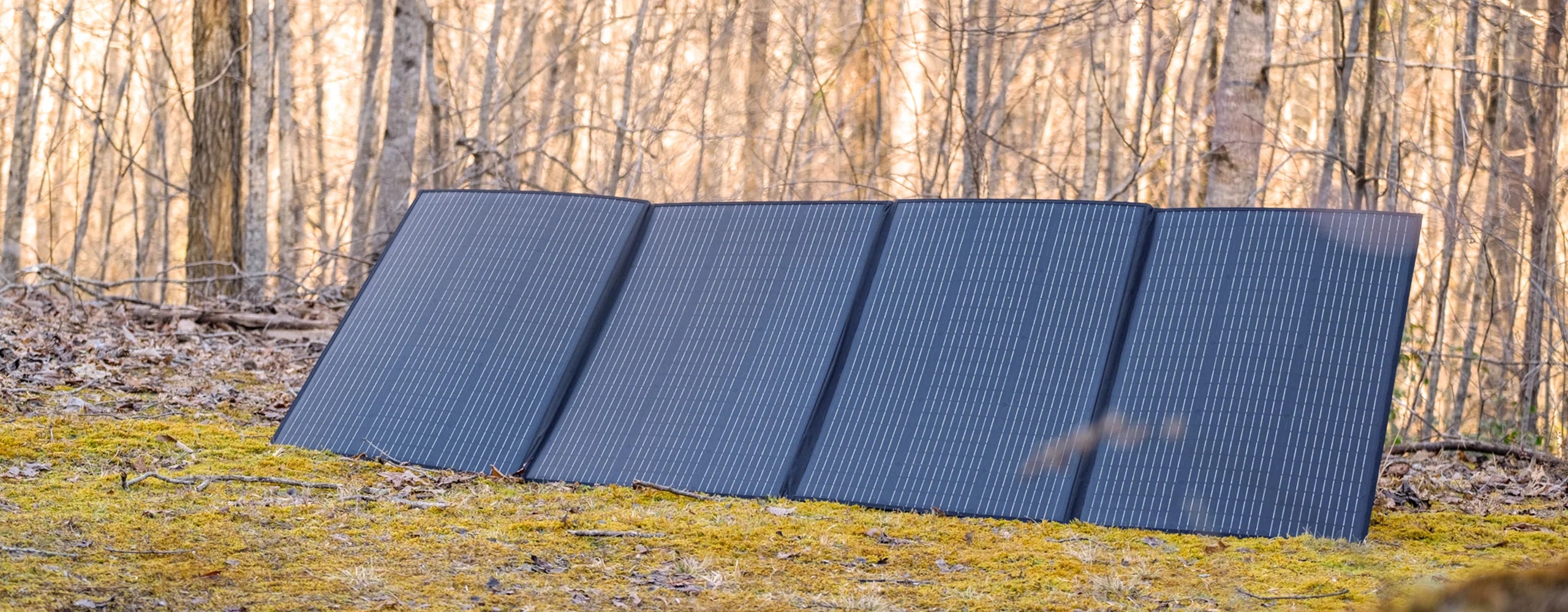

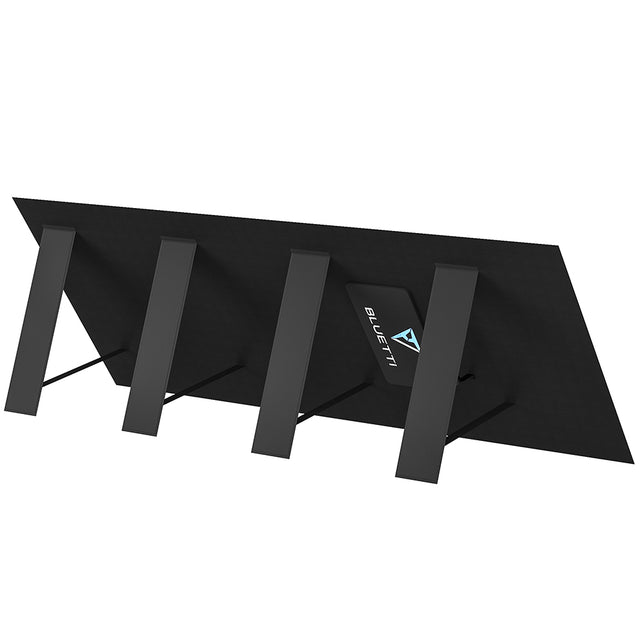

Charging your solar generator at 350W*, the BLUETTI PV350 solar panel can be built into a power system to juice up your laptop, drone, refrigerator, drill and more. * Actual performance results may vary depending on operating conditions and panel orientation.
Foldable & Portable

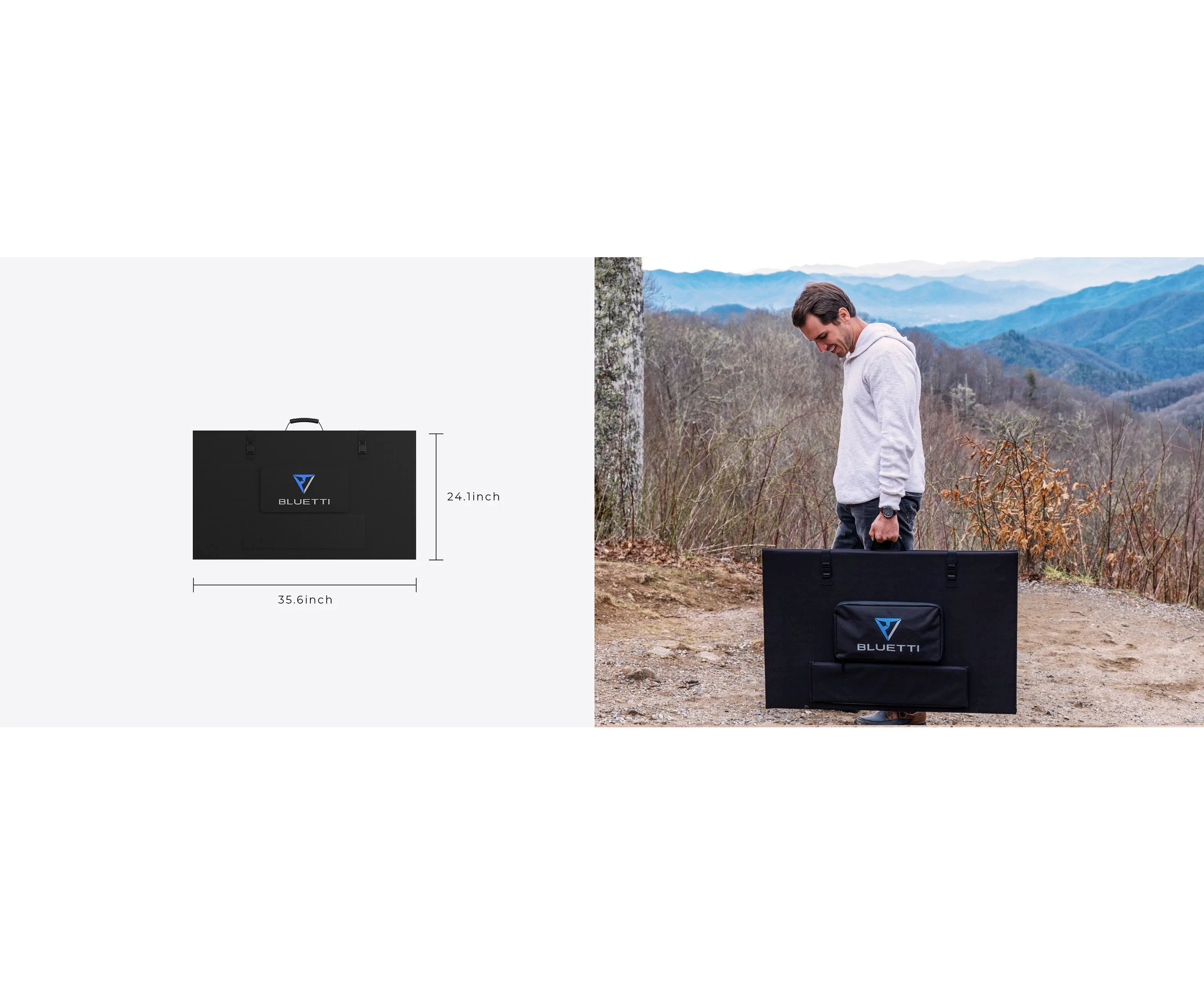

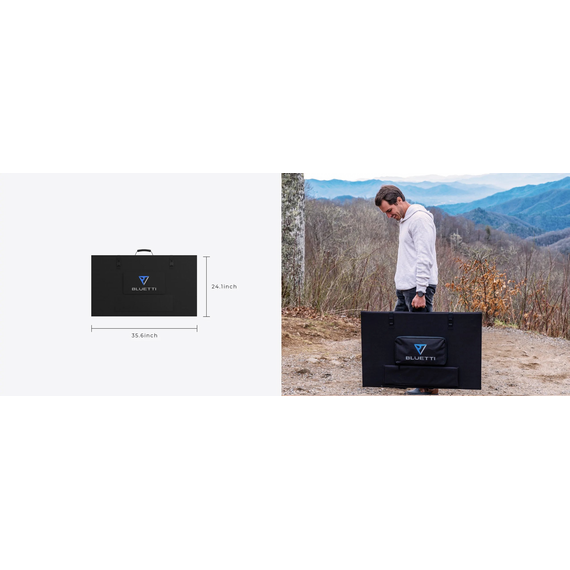

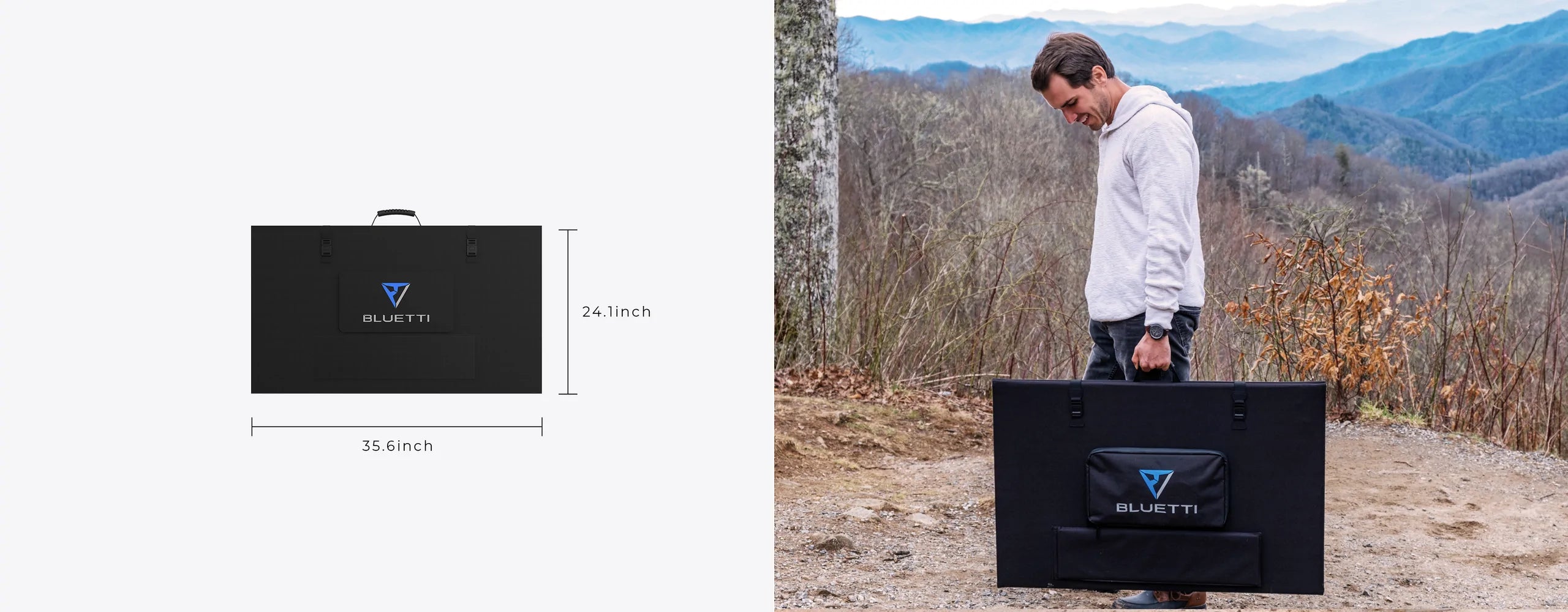

With a folded size of 35.6*24.1*2.5inches and 30.61lbs of weight, the BLUETTI PV350 is convenient to carry around and easy to be set up for anyone, anywhere.
Durable & Splash-Proof
The long-lasting ETFE coating brings better light transmittance, scratch resistance, and self-cleaning, together with the IP65 splash-proof rating, you can use PV350 at home or on the go with confidence.
23.4% Conversion Rate
With up to 23.4% conversion rate and 95% transparency, this monocrystalline solar panel can harness more solar energy than polycrystalline panels, even in low-light conditions.
Charge Most Solar Generators
Thanks to the universal MC4 connector, PV350 works with most solar generators, perfect for BLUETTI AC200P/AC200MAX/AC300/EP500/EP500Pro/EB150 power station.
Sustainable Power
A simple and green way to keep you powered while being off the grid.
