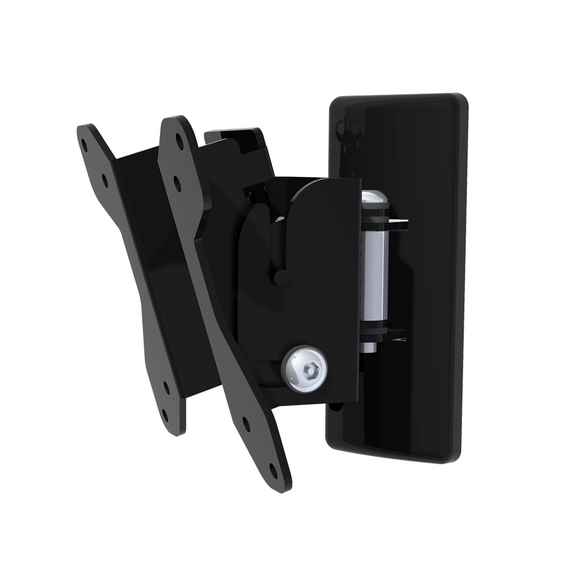

BTECH BT7518-B wall mount for monitors with tilt and swivel
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

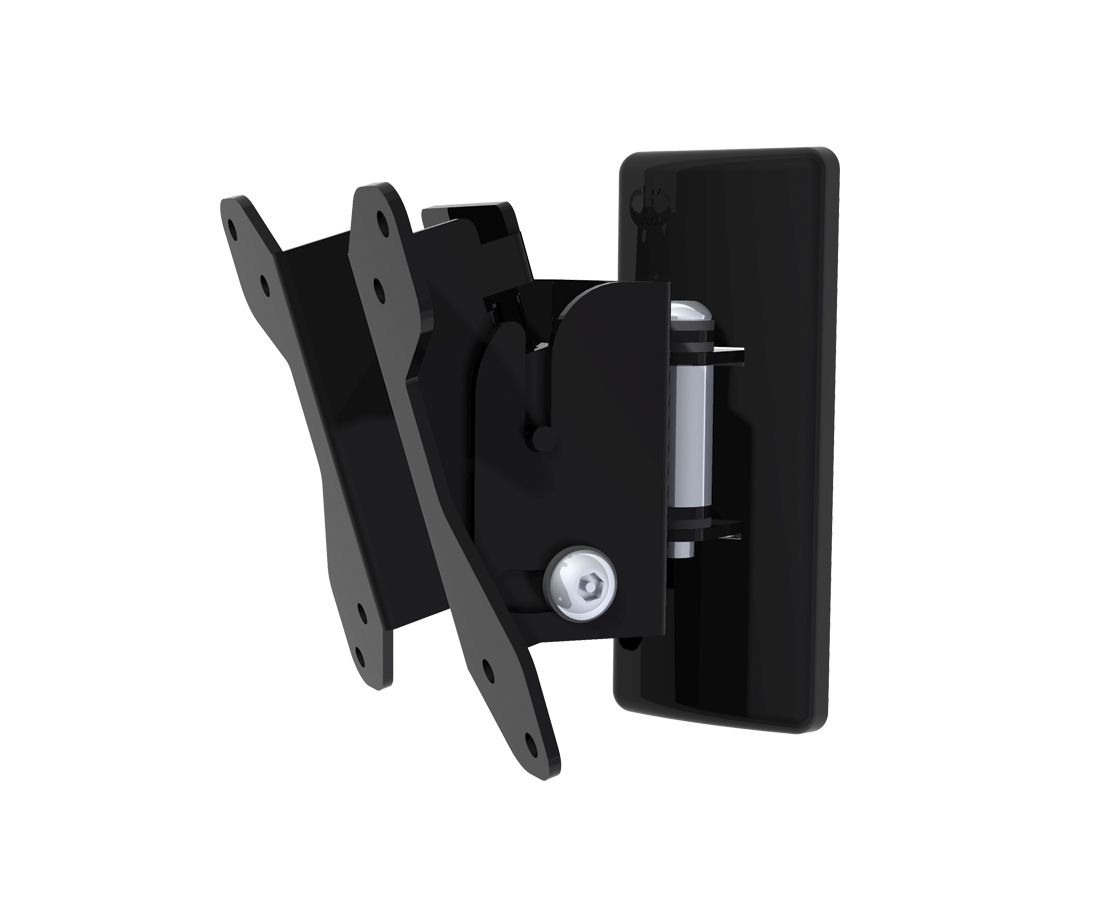

BTECH BT7518-B Wall Mount for Monitors with Tilt and Swivel
The BTECH BT7518-B is a professional flat screen wall mount designed for small monitors and displays requiring flexible positioning. Featuring both tilt and swivel adjustment, it provides users with the ability to optimise viewing angles while maintaining a secure and space-saving wall-mounted installation. It is ideal for CCTV monitors, control rooms, offices, retail displays, and home entertainment applications.
Designed to support screens with VESA mounting patterns of 75 × 75 mm and 100 × 100 mm, the BT7518-B offers broad compatibility with smaller flat panel displays. The adjustable design allows easy screen positioning, including tilt adjustment, swivel movement, and full screen rotation, helping achieve the most comfortable viewing angle for different environments.
The compact wall mount positions the screen just 93 mm from the wall while still providing excellent adjustment flexibility. Its built-in cable management features and included cover plates help conceal fixings and create a clean, professional installation finish. The secure locking screws and supplied installation hardware ensure a reliable mounting solution for commercial and domestic applications.
Key Features:
- BTECH BT7518-B flat screen wall mount with tilt and swivel functionality
- Suitable for small monitors and flat panel displays up to 28"
- Supports VESA mounting patterns: 75 × 75 mm and 100 × 100 mm
- Maximum load capacity: 20 kg
- Tilt adjustment: +17° / -10°
- Wall-mounted swivel adjustment: up to 50°
- Screen rotation: 360°
- Extends only 93 mm from the wall for a compact installation
- Features On Wall Levelling System (OWLS) for easier alignment
- Security locking screws included for additional installation safety
- Hook-on installation design with mounting hardware supplied
- Compatible with B-Tech accessory collars for alternative mounting options
- Black finish for a professional appearance
The BTECH BT7518-B Wall Mount is an ideal solution for installers and users requiring a compact yet adjustable monitor mounting system. With strong load support, flexible viewing adjustments, and a neat installation design, it provides a reliable mounting solution for CCTV monitoring stations, commercial displays, and workspace environments.
Please note: Always check the monitor’s VESA pattern, weight, and mounting requirements before installation to ensure compatibility with the bracket.
