Dahua IPC-HDW3841EMP-S-0360B-S2 8MP WizSense IR Fixed-Focal Eyeball Network Camera (3.6mm, 4K UHD, AI Human & Vehicle Detection)
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

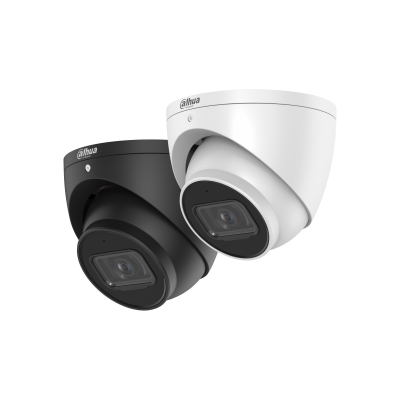

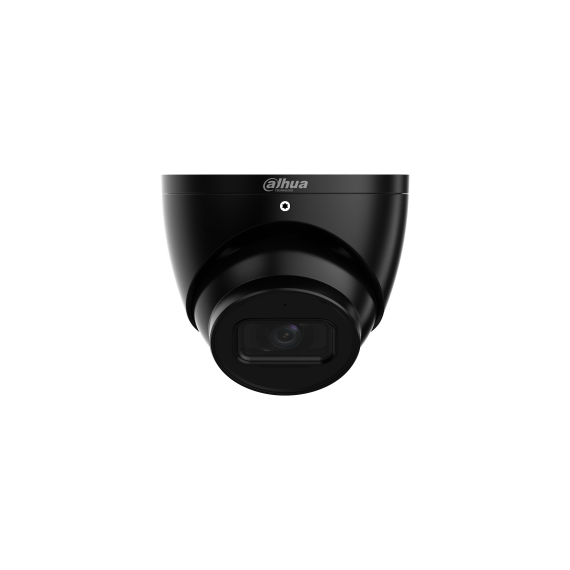

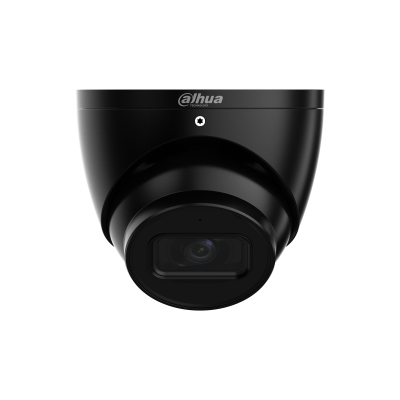

Dahua IPC-HDW3841EMP-S-0360B-S2 8MP WizSense IR Fixed-Focal Eyeball Network Camera (3.6mm, 4K UHD, AI Human & Vehicle Detection)
The Dahua IPC-HDW3841EMP-S-0360B-S2 is a high-performance 8MP eyeball network camera designed to deliver ultra-high-definition surveillance for residential, commercial, and industrial environments. Equipped with a 1/2.8" progressive CMOS sensor, the camera captures video at resolutions up to , providing exceptional image detail for identification, monitoring, and evidence collection. As part of Dahua's WizSense Series, the camera incorporates advanced AI-powered analytics, including human and vehicle classification. Intelligent perimeter protection functions such as intrusion detection and tripwire detection help reduce false alarms by accurately distinguishing people and vehicles from irrelevant motion sources. The camera also supports SMD 4.0 and AI Scene Self-Adaptation (AI SSA) for enhanced detection accuracy and image optimization. The integrated Smart IR system provides night vision coverage up to 30 meters, automatically adjusting infrared intensity to prevent overexposure of nearby objects. Combined with 120dB True WDR, 3D Noise Reduction, HLC, and BLC, the camera delivers clear images in challenging lighting conditions, including strong backlighting and low-light environments.
KEY FEATURES
- 8MP Ultra HD (4K)
- 1/2.8" Progressive CMOS image sensor
- Fixed 3.6mm wide-angle lens
- Smart IR illumination up to 30m
- WizSense AI human and vehicle classification
- SMD 4.0 intelligent motion detection
- Intrusion and tripwire perimeter protection
- Built-in microphone for audio recording
- Smart H.265+ / Smart H.264+ compression
- AI H.265 / AI H.264 encoding
- 120dB True Wide Dynamic Range (WDR)
- 3D Noise Reduction (3D NR)
- AI Scene Self-Adaptation (AI SSA)
- HLC, BLC, ROI and Defog functions
- Triple-stream video support
- MicroSD card support up to 256GB
