Dahua NVR4108HS-EI – 8CH Compact 1U WizSense AI Network Video Recorder (1 HDD, 80 Mbps)
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

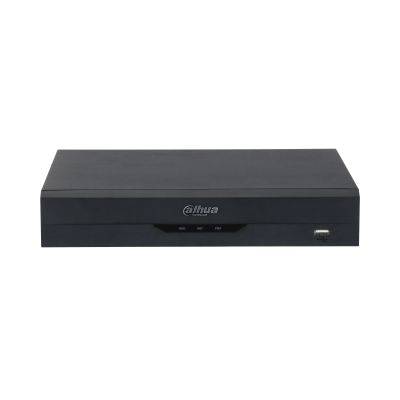

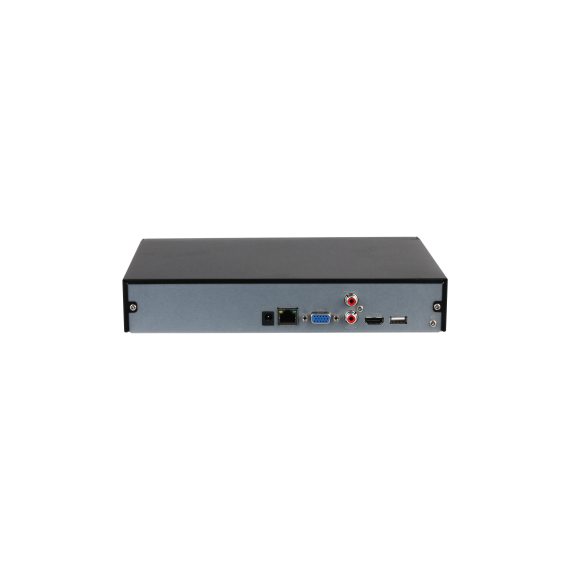

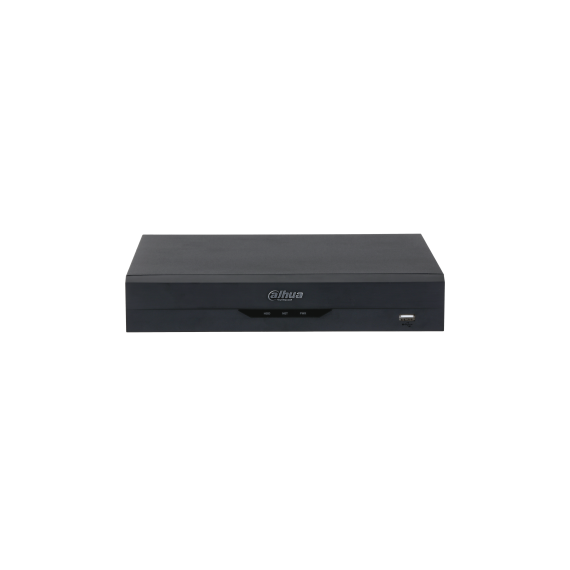

Dahua NVR4108HS-EI – 8CH Compact 1U WizSense AI Network Video Recorder (1 HDD, 80 Mbps)
The Dahua NVR4108HS-EI is part of the WizSense EI Series and combines intelligent AI analytics with reliable video recording in a compact and cost-effective platform. Designed for professional CCTV applications, it supports up to 8 IP camera channels and cameras with resolutions up to 16MP. With a maximum incoming, recording and outgoing bandwidth of 80 Mbps, the recorder efficiently manages high-resolution video streams whilst maintaining smooth live viewing and playback performance. It offers decoding capability of up to 4 channels at 8MP resolution or 16 channels at 1080p, depending on system configuration. The NVR incorporates Dahua's WizSense AI technology, providing recorder-based face detection, face recognition, perimeter protection, and SMD Plus. Face recognition supports up to 10 face databases with a total capacity of 20,000 face images, enabling rapid identification and intelligent forensic searches. When paired with compatible Dahua cameras, additional AI functions become available, including human and vehicle classification, ANPR, people counting, heat mapping, and stereo analysis. This combination helps reduce false alarms and improves event accuracy.
KEY FEATURES
- 8-channel IP video recorder
- Supports IP cameras up to 16MP
- 80 Mbps incoming, recording and outgoing bandwidth
- WizSense AI analytics platform
- Face detection and face recognition
- Perimeter protection analytics
- SMD Plus intelligent motion detection
- Up to 10 face databases and 20,000 face images
- Human and vehicle classification support via compatible cameras
- ANPR, people counting and heat map support via AI cameras
- Smart H.265+ video compression
- HDMI and VGA video outputs
- Up to 4K display resolution
- 1 SATA HDD bay supporting up to 20 TB
- EPTZ support
- One-click arming and disarming
