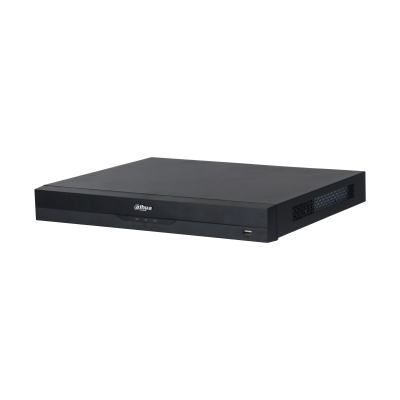

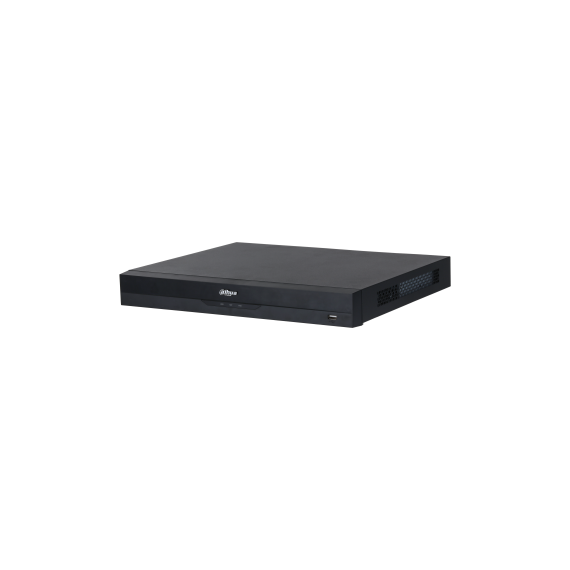

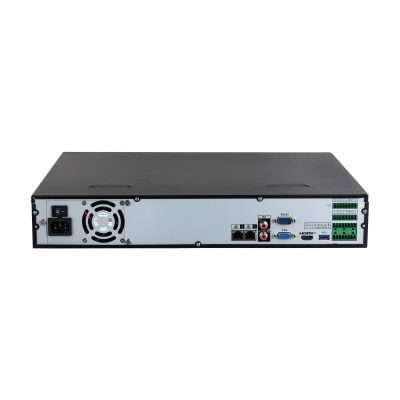

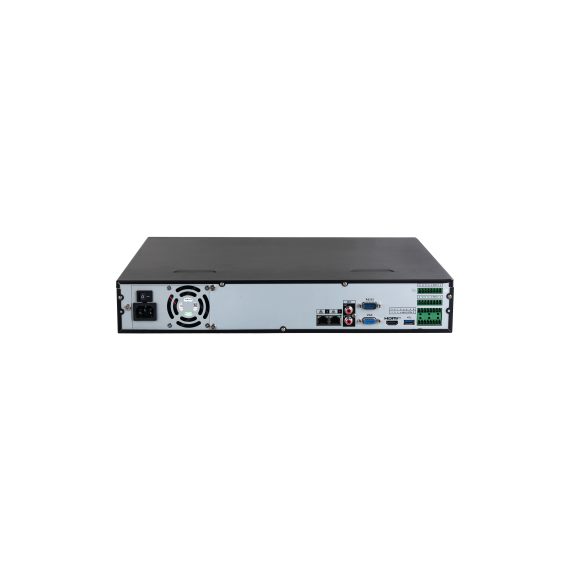

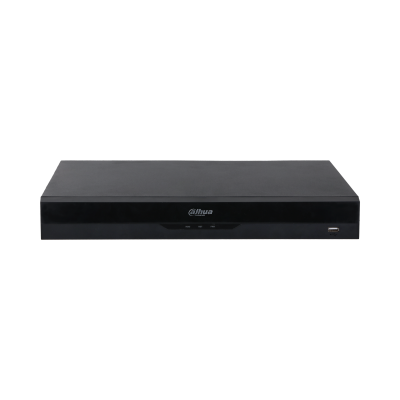

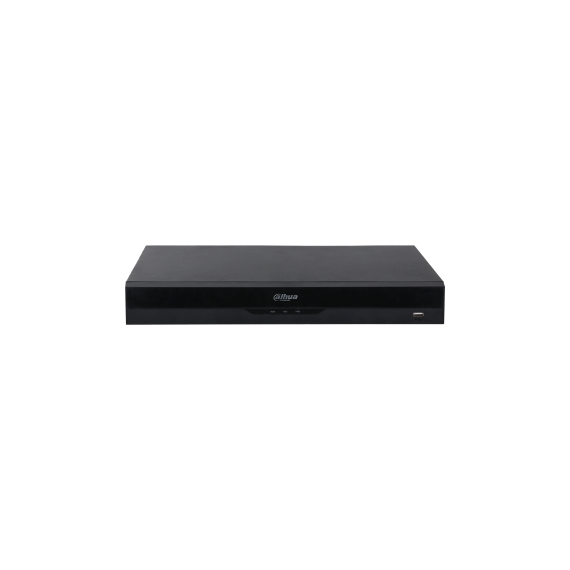

Dahua NVR4416-16P-EI – 16CH WizSense AI PoE Network Video Recorder (4 HDD, 256 Mbps)
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)
Dahua NVR4416-16P-EI – 16CH WizSense AI PoE Network Video Recorder (4 HDD, 256 Mbps)
The Dahua NVR4416-16P-EI is part of the WizSense EI Series and is engineered for high-density, intelligent IP video surveillance applications requiring advanced AI analytics, simplified installation, and extended recording retention. It supports up to 16 IP camera channels, making it suitable for medium to large professional security installations such as commercial complexes, industrial sites, logistics hubs, and enterprise facilities. The unit includes a built-in 16-port PoE switch, allowing all 16 cameras to be directly powered and connected without the need for external PoE switches. The recorder delivers up to 256 Mbps incoming, recording, and outgoing bandwidth (AI dependent reduction applies), enabling smooth handling of multiple high-resolution streams, including cameras up to 16MP. A key advantage of this model is its 4 SATA HDD bays, which provide significantly expanded storage capacity compared to lower-tier EI models. This makes it ideal for long-term video retention and high-camera-count systems.The system integrates Dahua WizSense AI technology, offering advanced analytics such as face detection, face recognition, perimeter protection, and SMD Plus. These functions improve accuracy by focusing on human and vehicle targets while reducing false alarms.
KEY FEATURES
- 4 SATA HDD bays (high-capacity storage)
- HDMI & VGA output (up to 4K)
- Smart H.265+ compression
- ANPR, people counting, heat map support (via AI cameras)
- Human and vehicle classification support
- Up to 10 face databases / 20,000 face images
- SMD Plus intelligent motion detection
- Perimeter protection (tripwire, intrusion detection)
- Face detection and face recognition
- WizSense AI analytics platform
- Supports IP cameras up to 16MP
- Up to 256 Mbps bandwidth (AI dependent)
- Integrated 16-port PoE switch
- 16-channel IP video recording
