Dahua NVR5416-16P-EI – 16 Channel WizSense AI Network Video Recorder with 16 PoE Ports (1.5U, 4 HDD Bays)
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

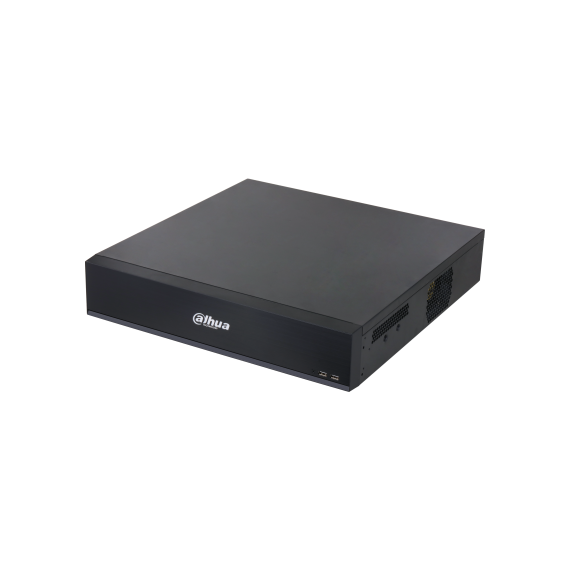

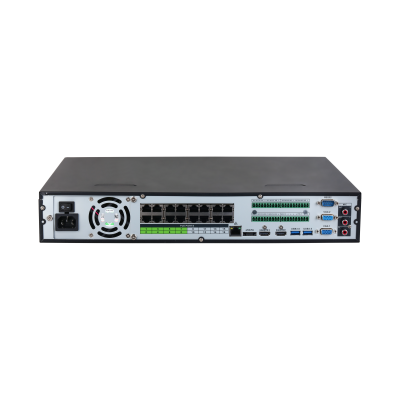

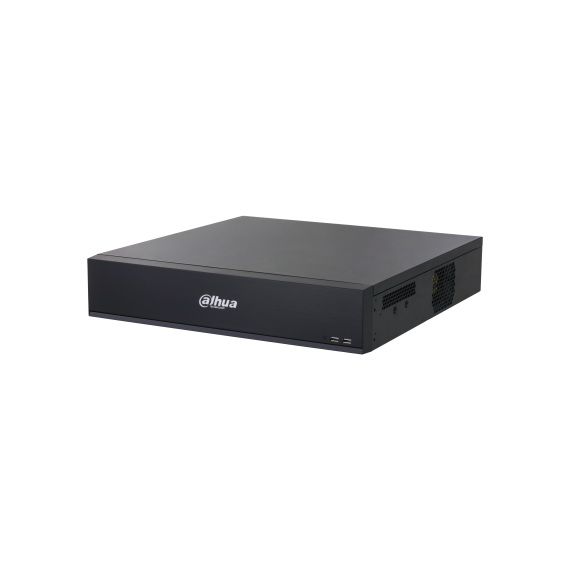

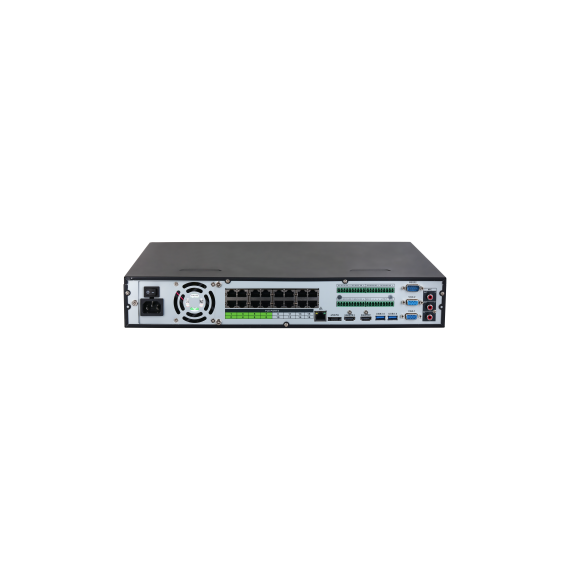

Dahua NVR5416-16P-EI – 16 Channel WizSense AI Network Video Recorder with 16 PoE Ports (1.5U, 4 HDD Bays)
The Dahua NVR5416-16P-EI is part of Dahua’s WizSense 5-EI Series, offering a reliable and intelligent recording solution for modern IP surveillance systems. It combines powerful AI processing, built-in PoE connectivity, and efficient storage management to support professional security deployments. This model supports up to 16 IP camera channels with resolutions up to 32MP, making it suitable for offices, retail shops, warehouses, residential complexes, schools, and small industrial sites. It delivers up to 384 Mbps incoming, recording, and outgoing bandwidth, ensuring stable performance even when handling multiple high-resolution cameras simultaneously. A key advantage of this model is its 16 built-in PoE ports, allowing direct camera connection and power supply without external switches. Ports 1–8 support ePoE technology, enabling extended transmission distances over standard Ethernet cabling.
KEY FEATURES
- 16 IP camera channels
- 16 integrated PoE ports (IEEE 802.3af/at)
- Supports up to 32MP camera resolution
- WizSense AI technology (Recorder + Camera AI)
- Face detection and face recognition
- Smart Motion Detection Plus (SMD Plus)
- Perimeter protection with IVS rules
- AcuPick intelligent video search (up to 16 channels)
- Video metadata analysis (human, vehicle attributes)
- ANPR support via compatible cameras
- Up to 384 Mbps bandwidth (incoming/recording/outgoing)
- 32 × 1080p decoding capability
- Smart H.265+, H.265, H.264 compression
