Dahua NVR5464-16HP-EI2 – 64 Channel WizSense AI Network Video Recorder with 16 PoE Ports (1.5U, 4 HDD Bays, EI2 Series)
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

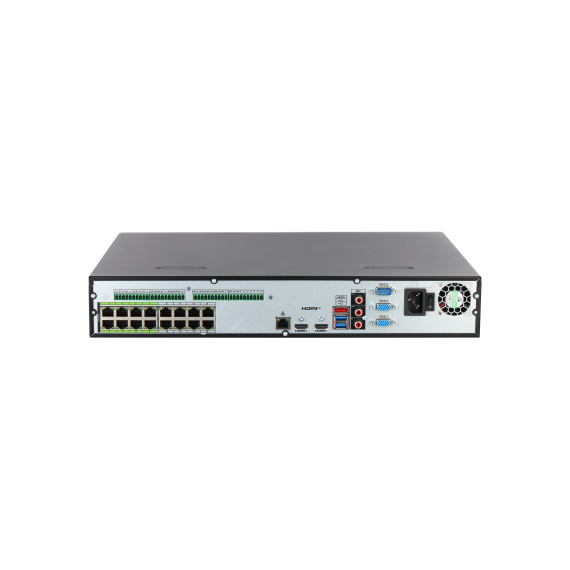

Dahua NVR5464-16HP-EI2 – 64 Channel WizSense AI Network Video Recorder with 16 PoE Ports (1.5U, 4 HDD Bays, EI2 Series)
The Dahua NVR5464-16HP-EI2 belongs to Dahua’s latest WizSense NVR 5-EI2 series, designed to enhance intelligent video surveillance with improved AI processing, higher decoding efficiency, and stronger system stability compared to earlier EI models. It supports up to 64 IP camera channels with resolutions up to 32MP, making it suitable for large installations such as commercial complexes, industrial facilities, logistics centres, educational campuses, and city-scale monitoring systems. The recorder provides up to 448 Mbps incoming, recording, and outgoing bandwidth, allowing smooth handling of multiple high-resolution video streams simultaneously. A key feature of this model is its 16 integrated PoE ports, which simplify installation by supplying both power and data directly to connected IP cameras. This reduces cabling complexity and removes the need for external PoE switches in many deployments. The EI2 platform introduces improved AI performance and optimisation, supporting Dahua’s WizSense intelligent analytics, including face detection and recognition, Smart Motion Detection Plus (SMD Plus), perimeter protection, AcuPick intelligent video search, video metadata analysis, and ANPR via compatible AI cameras. These functions significantly reduce false alarms and improve event search efficiency in large video databases.
KEY FEATURES
- 64 IP camera channels
- 16 integrated PoE ports (IEEE 802.3af/at)
- Supports cameras up to 32MP resolution
- WizSense AI analytics platform
- Face detection and face recognition
- Smart Motion Detection Plus (SMD Plus)
- Perimeter protection with AI classification
- AcuPick intelligent video search
- Video metadata analysis (people, vehicles, attributes)
- ANPR support via compatible AI cameras
- Up to 448 Mbps bandwidth (incoming/recording/outgoing)
- Up to 40 × 1080p @ 30fps decoding capability
- Smart H.265+, H.265, H.264 compression
- 8K HDMI output for ultra-HD monitoring
- 4 × SATA HDD bays (up to 20TB each)
