Dahua NVR608H-32-XI 32-Channel WizMind AI Network Video Recorder with 8 HDD Bays, RAID & 8K Output
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

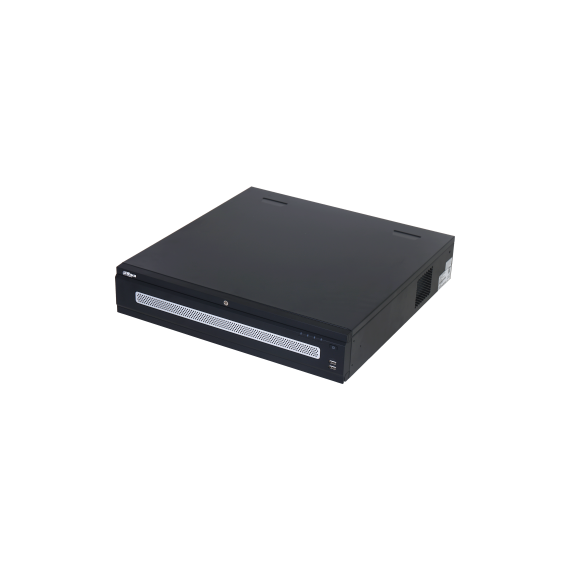

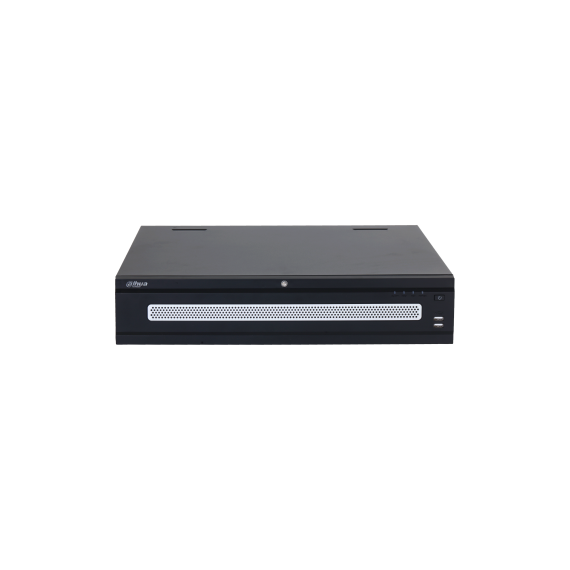

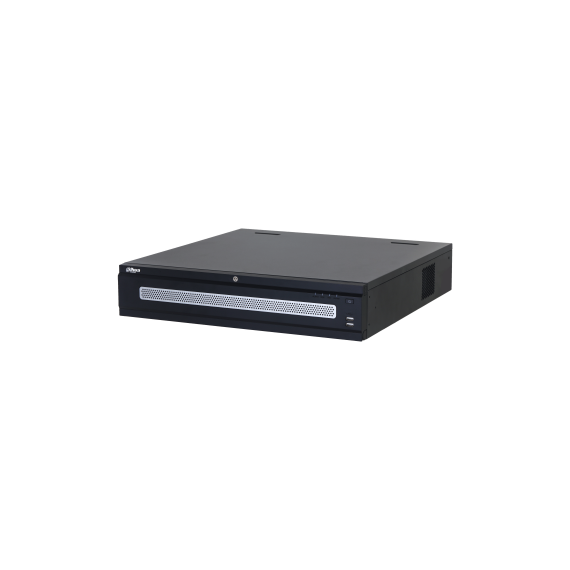

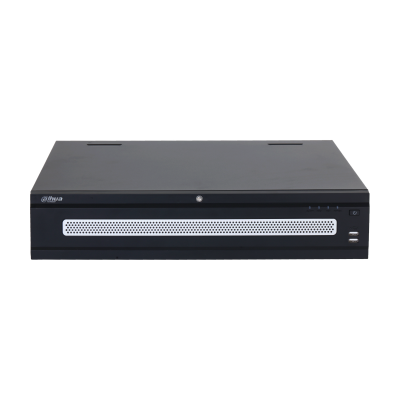

Dahua NVR608H-32-XI 32-Channel WizMind AI Network Video Recorder with 8 HDD Bays, RAID & 8K Output
The Dahua NVR608H-32-XI belongs to Dahua’s advanced WizMind NVR6-XI series, designed to deliver intelligent video processing, high reliability, and enterprise-grade performance. It supports up to 32 IP camera channels with resolutions up to 32MP, making it suitable for medium to large surveillance deployments where high-detail monitoring is required. Powered by an industrial-grade processor with an embedded Linux operating system, the recorder supports up to 1280 Mbps incoming and recording bandwidth, ensuring smooth handling of multiple high-resolution camera streams without performance loss. The system integrates Dahua’s WizMind AI engine, offering intelligent features such as face detection and recognition, video metadata analysis (humans and vehicles), perimeter protection, SMD Plus, AcuPick smart search, ANPR, people counting, heat maps, and crowd analysis. These functions significantly improve detection accuracy while reducing false alarms and simplifying forensic investigation. For storage, the NVR supports 8 SATA HDD bays, each accommodating up to 20TB per drive, and includes RAID 0/1/5/6/10 for data redundancy and protection. It also supports hot-swappable drives, N+M cluster deployment, and iSCSI expansion, ensuring scalability and system resilience in professional environments. For monitoring and control rooms, the device provides 4 HDMI outputs and 2 VGA outputs, including support for 8K Ultra HD resolution (7680 × 4320), enabling advanced multi-screen video wall configurations and high-resolution live viewing.
KEY FEATURES
- Supports up to 32 IP camera channels
- Maximum 1280 Mbps incoming/recording bandwidth
- Supports cameras up to 32MP resolution
- Advanced WizMind AI: face recognition, SMD Plus, perimeter protection, AcuPick, ANPR, metadata analytics
- 8 SATA HDD bays, up to 20TB per drive
- RAID 0 / 1 / 5 / 6 / 10 storage protection
- Hot-swappable HDD design for easy maintenance
- 8K HDMI output for ultra-high-definition monitoring
- N+M cluster and iSCSI storage expansion support
- Embedded Linux operating system
- ONVIF compatibility with third-party cameras
- Enterprise-grade rack-mount design for professional installations
