Dahua NVR608RH-64-XI 64-Channel WizMind AI Network Video Recorder with 8 HDD Bays, RAID, Redundant Power & 8K Output
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

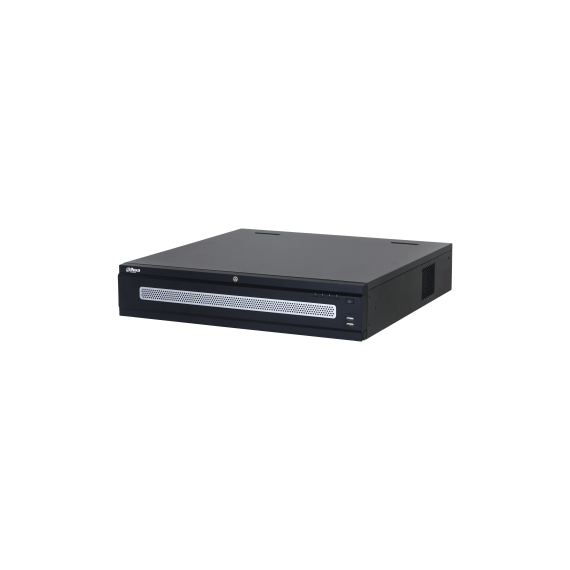

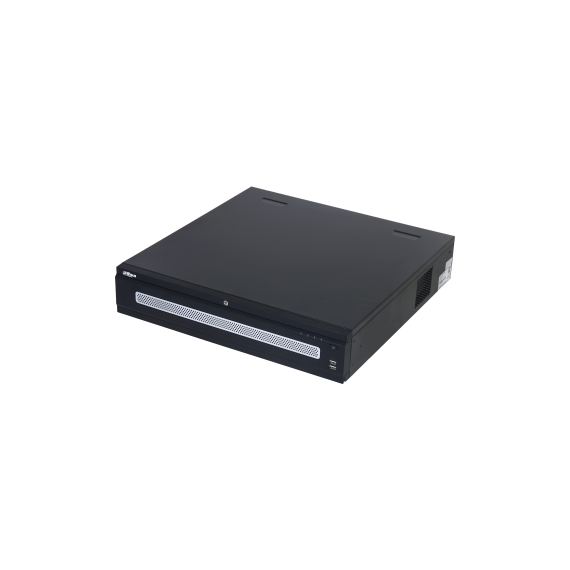

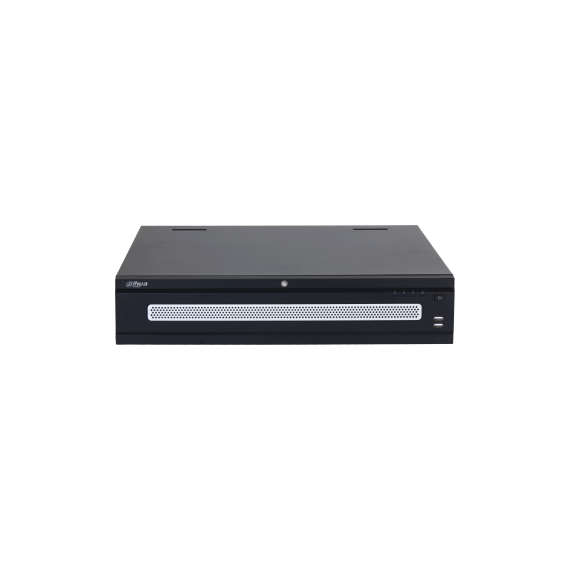

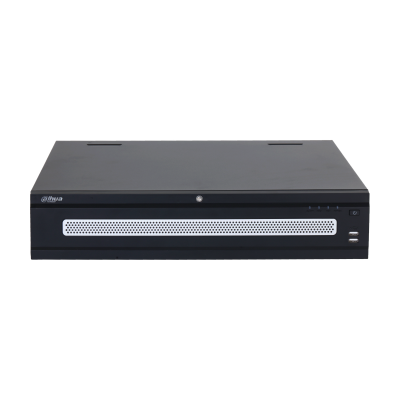

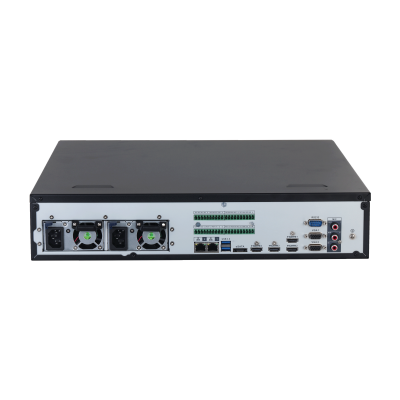

Dahua NVR608RH-64-XI 64-Channel WizMind AI Network Video Recorder with 8 HDD Bays, RAID, Redundant Power & 8K Output
The Dahua NVR608RH-64-XI belongs to the powerful WizMind NVR6-XI series, engineered for enterprise, industrial, and critical infrastructure surveillance environments. It supports up to 64 IP camera channels with resolutions up to 32MP, making it suitable for high-detail monitoring across complex security networks. With an industrial-grade processor and embedded Linux operating system, the recorder delivers up to 1280 Mbps incoming bandwidth, 1280 Mbps recording bandwidth, and 1024 Mbps outgoing bandwidth, ensuring stable performance even with multiple high-resolution video streams running simultaneously. The system integrates advanced WizMind AI functions, including face detection and recognition, video metadata analysis (humans and vehicles), perimeter protection, SMD Plus, AcuPick smart search, ANPR, people counting, crowd distribution analysis, and heat mapping. These features significantly improve detection accuracy and reduce false alarms in demanding environments. For storage, the NVR supports 8 SATA HDD bays, each with up to 20TB capacity, and includes RAID 0/1/5/6/10 for redundancy and data protection. It also supports hot-swappable drives, N+M cluster deployment, and iSCSI storage expansion for scalable enterprise storage design.
KEY FEATURES
- Supports up to 64 IP camera channels
- Maximum 1280 Mbps incoming/recording bandwidth
- Supports up to 32MP camera resolution
- Advanced WizMind AI: face recognition, SMD Plus, perimeter protection, AcuPick, ANPR, metadata analytics
- 8 SATA HDD bays, up to 20TB per drive
- RAID 0 / 1 / 5 / 6 / 10 storage protection
- Hot-swappable HDD design for easy maintenance
- 8K HDMI output for ultra-high-definition monitoring
- N+M cluster and iSCSI storage expansion support
- Embedded Linux operating system
- ONVIF compatibility with third-party cameras
- Enterprise-grade rack design for large deployments
