EZVIZ 2K CS-EB8/SP EB8 4MP 2K+ Outdoor 360° Camera with Solar Panel (4g)
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)

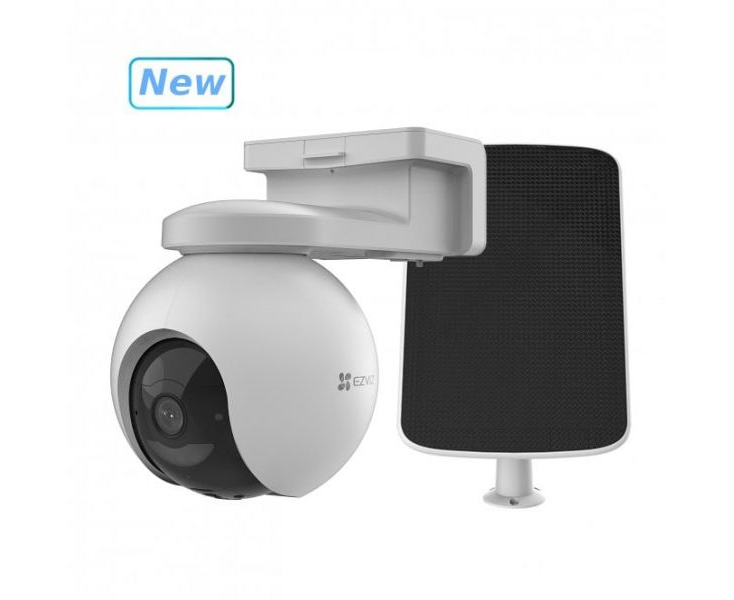

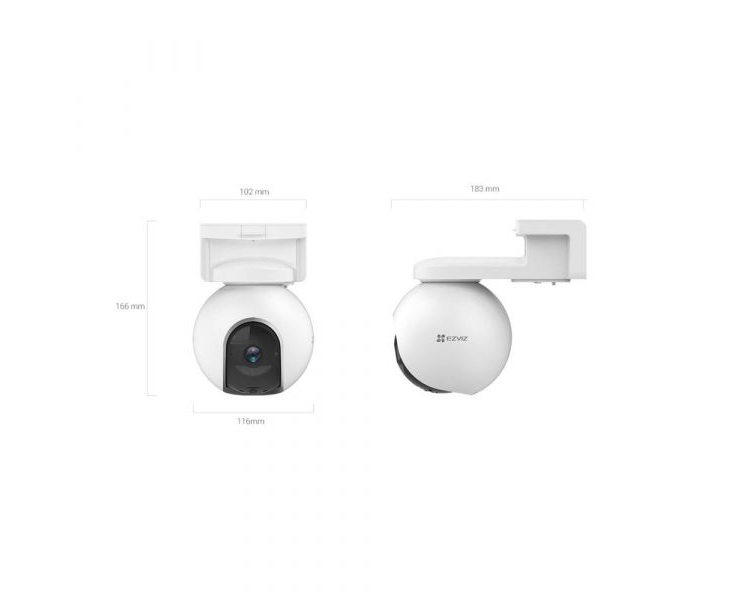

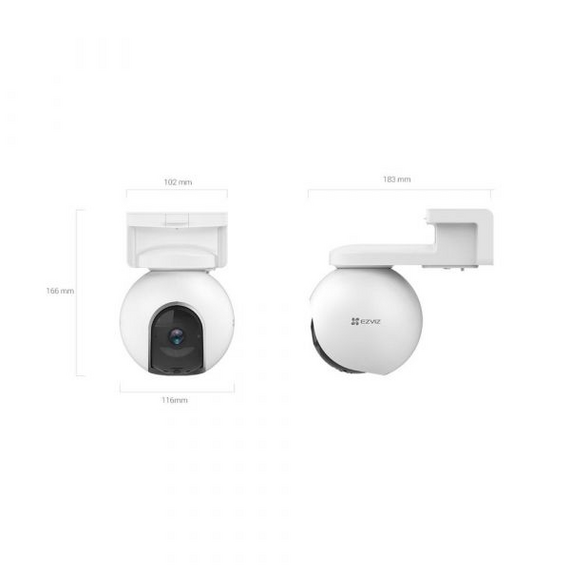

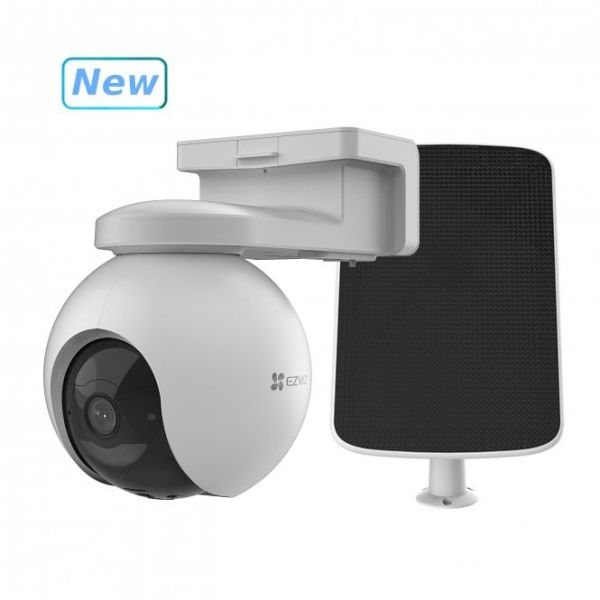

EZVIZ 2K CS-EB8/SP EB8 4MP 2K+ Outdoor 360° Camera with Solar Panel

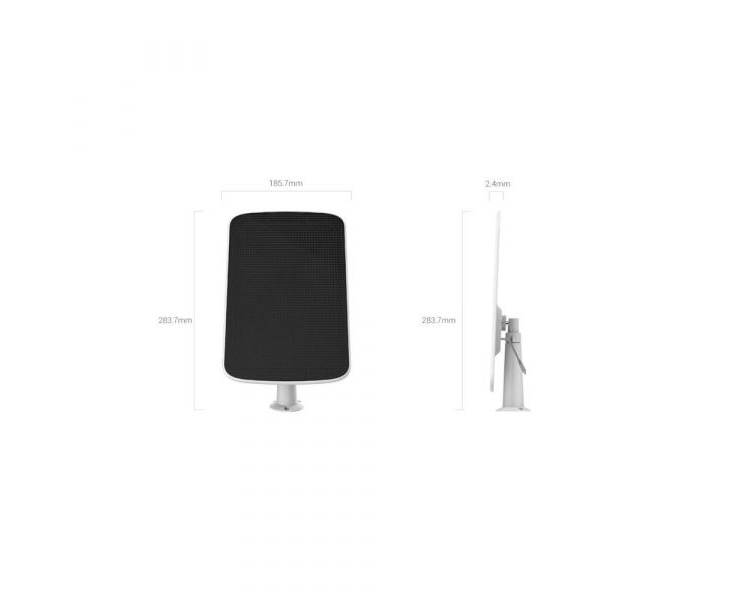

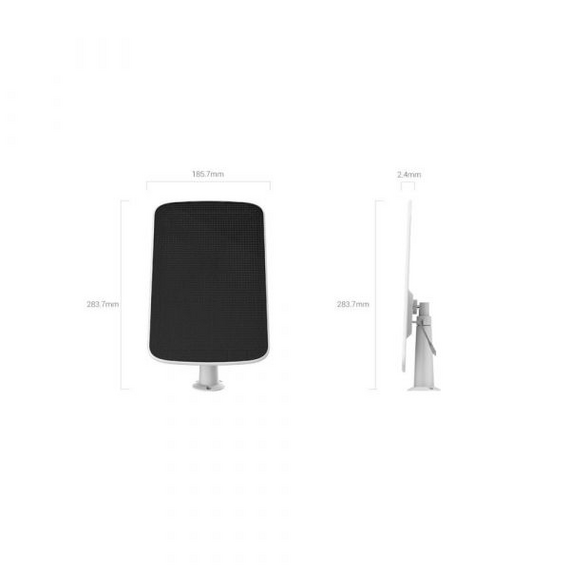

- Solar Panel Included: The included solar panel keeps the camera charged, ensuring continuous operation without the need for manual recharging.
- 360° Coverage: Enjoy complete coverage with pan and tilt capabilities, ensuring no blind spots in surveillance.
- High-Resolution Imaging: Features a 1/2.8” 3-Megapixel Progressive Scan CMOS Sensor for crystal clear imaging.
- Night Vision: Equipped with an IR-cut filter for automatic switching between day and night modes, providing clear footage around the clock.
- Two-Way Audio: Communicate with visitors or intruders directly through the camera.
- Smart Human Motion Detection: Smart technology distinguishes human movement, reducing false alarms.
- Robust Build: Weather-resistant design (IP65) suitable for outdoor use.
- Extended Battery Life: The large 10400 mAh battery capacity, supplemented by solar power, offers long-lasting performance.
- Easy Installation: Comes with all necessary accessories for a hassle-free setup.
- 4G Connectivity: Operates independently of Wi-Fi through a 4G SIM card, ensuring constant online access.
