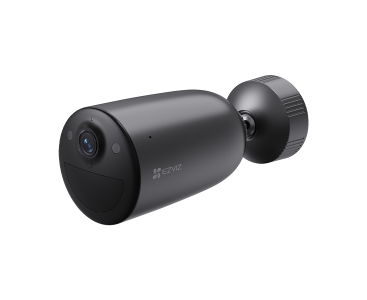

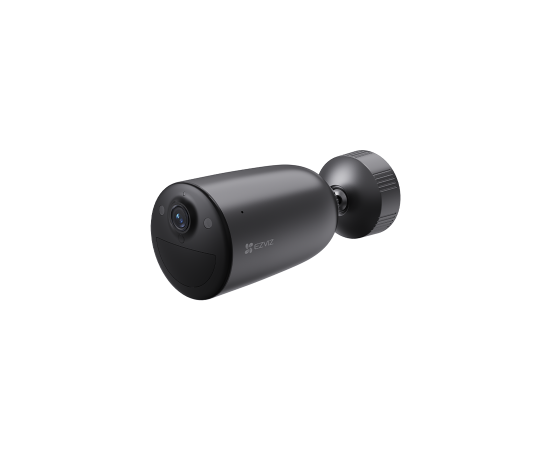

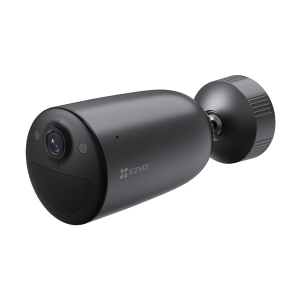

EZVIZ CS-EB3-R200-1K3FL4GA 4G Smart Home Battery Camera
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
Always-on protection, anywhere you go
With the EB3 4G, outdoor security becomes much simpler than you'd imagine. It is perfect for areas where wiring installation is challenging, as it's battery-powered and uses 4G LTE to stay connected for live feeds and notifications. It's also smart enough to provide 24/7 continuous protection thanks to EZVIZ's unique "Always-On Video Mode" and advanced human and vehicle detection feature. Reliable for the outdoors, it's also a greener option as it can work with a solar panel to stay in action.
Outdoor security made easy and reliable
Struggling with unreliable Wi-Fi and hard-to-reach power for your outdoor camera? The EB3 4G smartly addresses these issues with its large built-in battery and dependable 4G connectivity. Designed to withstand various weather conditions, it ensures a consistent level of protection that can't be easily compromised.
Protects wherever a 4G network reaches
As long as your cell phone is capable of receiving cellular data, your EB3 4G should be too. Whether you're on a road trip or spending the night at a campsite, the EB3 4G can travel with you and provide peace of mind in areas where Wi-Fi isn't available.
Nano SIM Card
Note: The camera only supports the use of a nano SIM card for the network, and does not support Wi-Fi connection. A supported nano SIM card and a cellular data plan are needed to use the camera.
