EZVIZ CS-HP3 Pro Battery-Powered Video Doorbell with Solar Panel
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
Much more protection. Far less trouble.

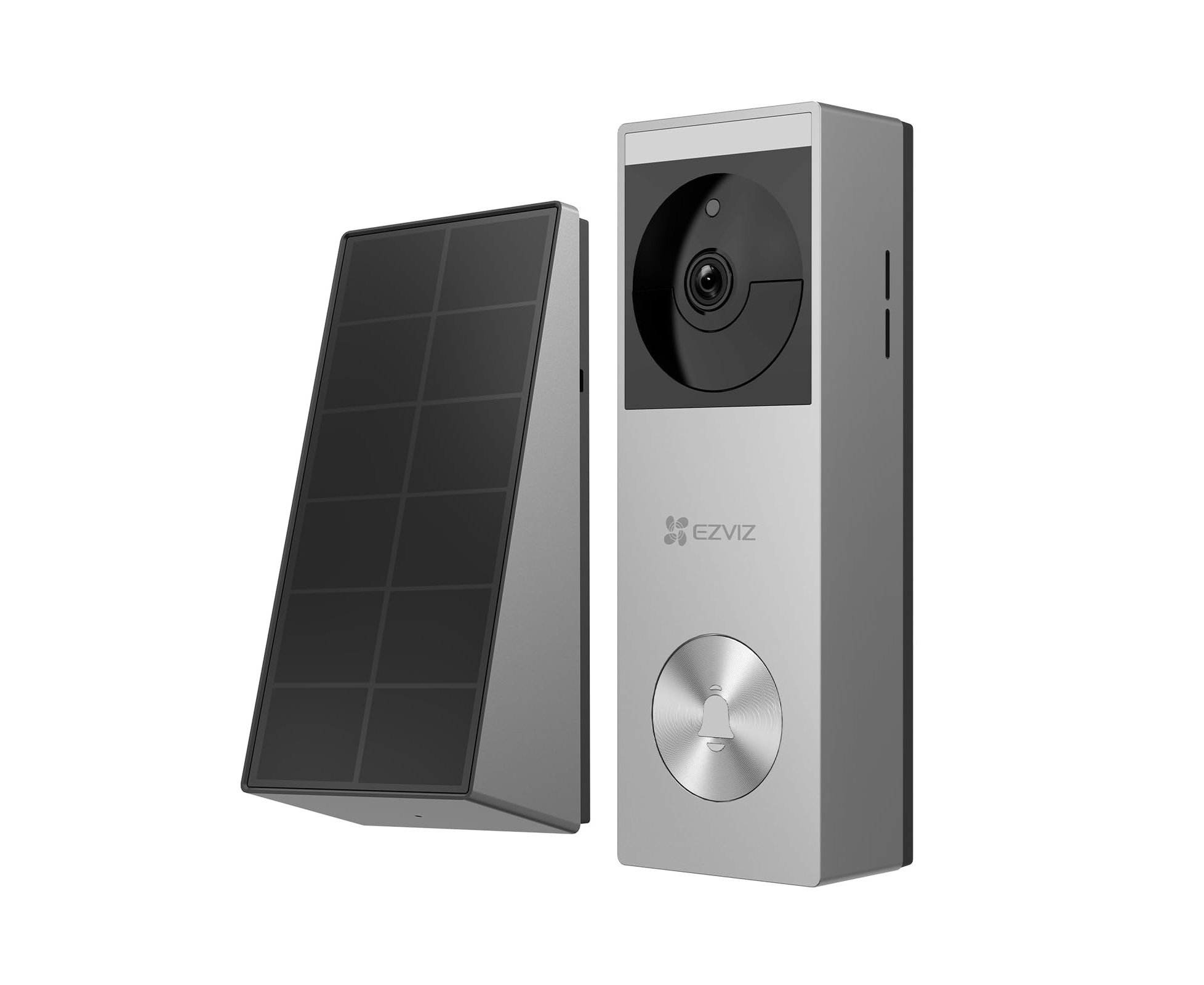

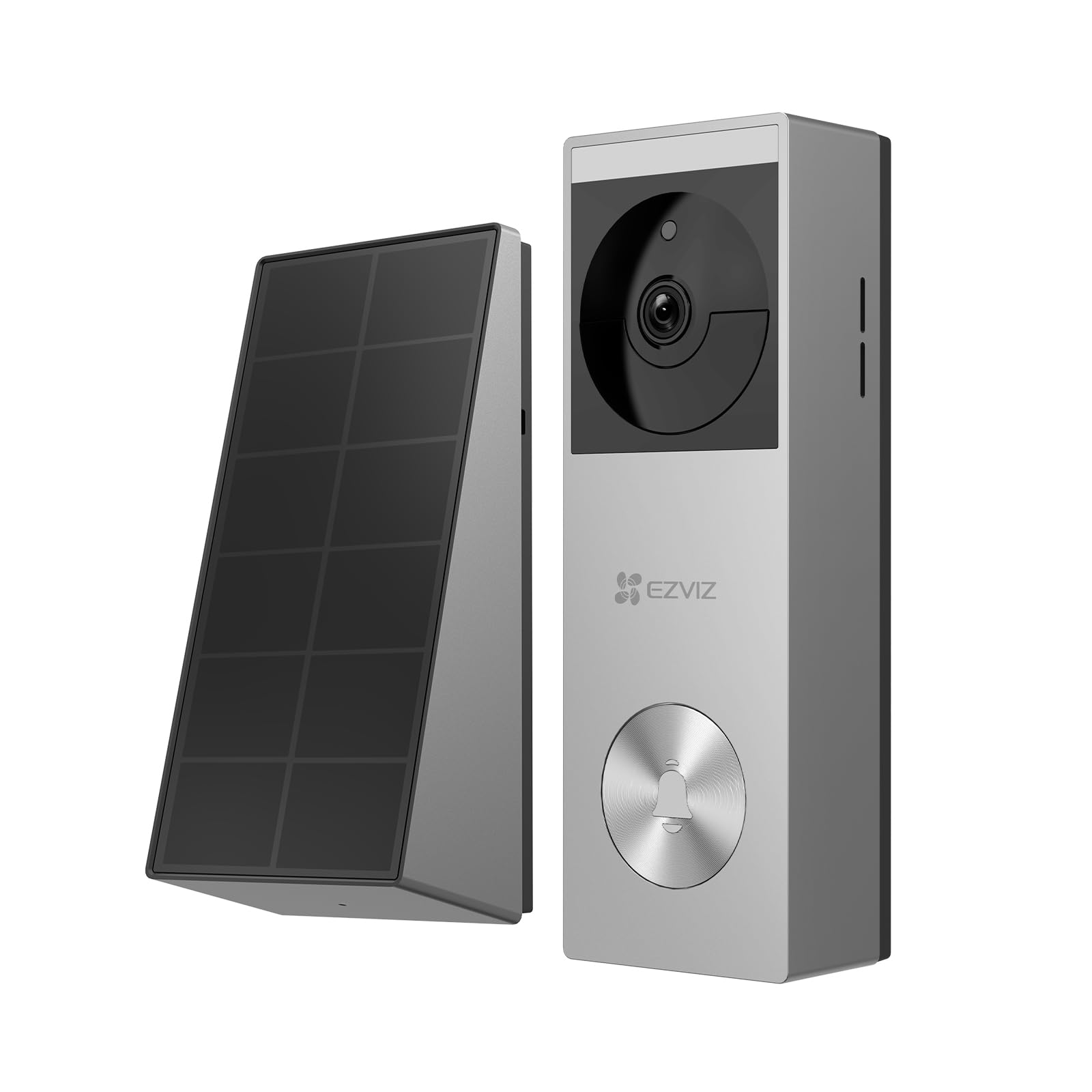

Want the convenience of a smart video doorbell but hate the dusty installation process? The HP3 Pro knows the drill. Using a large built-in battery and even taking additional power directly from the sun, the HP3 Pro can be easily snapped onto a flat wall near an entrance of houses, bungalows and apartments. You can see, hear, and speak to visitors remotely and receive notifications even before they ring. You don’t have to charge it often or pay for a memory card. It really is a product that you can set up in minutes for peace of mind all year round.
Stay informed with smart notifications
The HP3 Pro integrates a human-shape algorithm and a PIR sensor to detect human activities in particular, avoiding alerts triggered by wild animals, flying insects or running cars. Whenever a person shows up within its detection zone, the HP3 Pro will let you know immediately even before they knock.
Stunning vision for true-to-life details
Gone are the days of seeing distorted, blurred images through a narrow peephole. The HP3 Pro captures details in crisp 2K resolution, so you can easily see a visitor from head to toe. The HP3 Pro can light up a completely dark front door and deliver colorful, vivid videos at any time of day.
